927066 (10528) - Gravely 28" Rear-Engine Riding Mower, 10.5hp Briggs & Stratton, Hydro (SN: 000101 & Above) Gas Tank Parts Diagram

28" Rear-Engine Riding Mower, 10.5hp Briggs & Stratton, Hydro

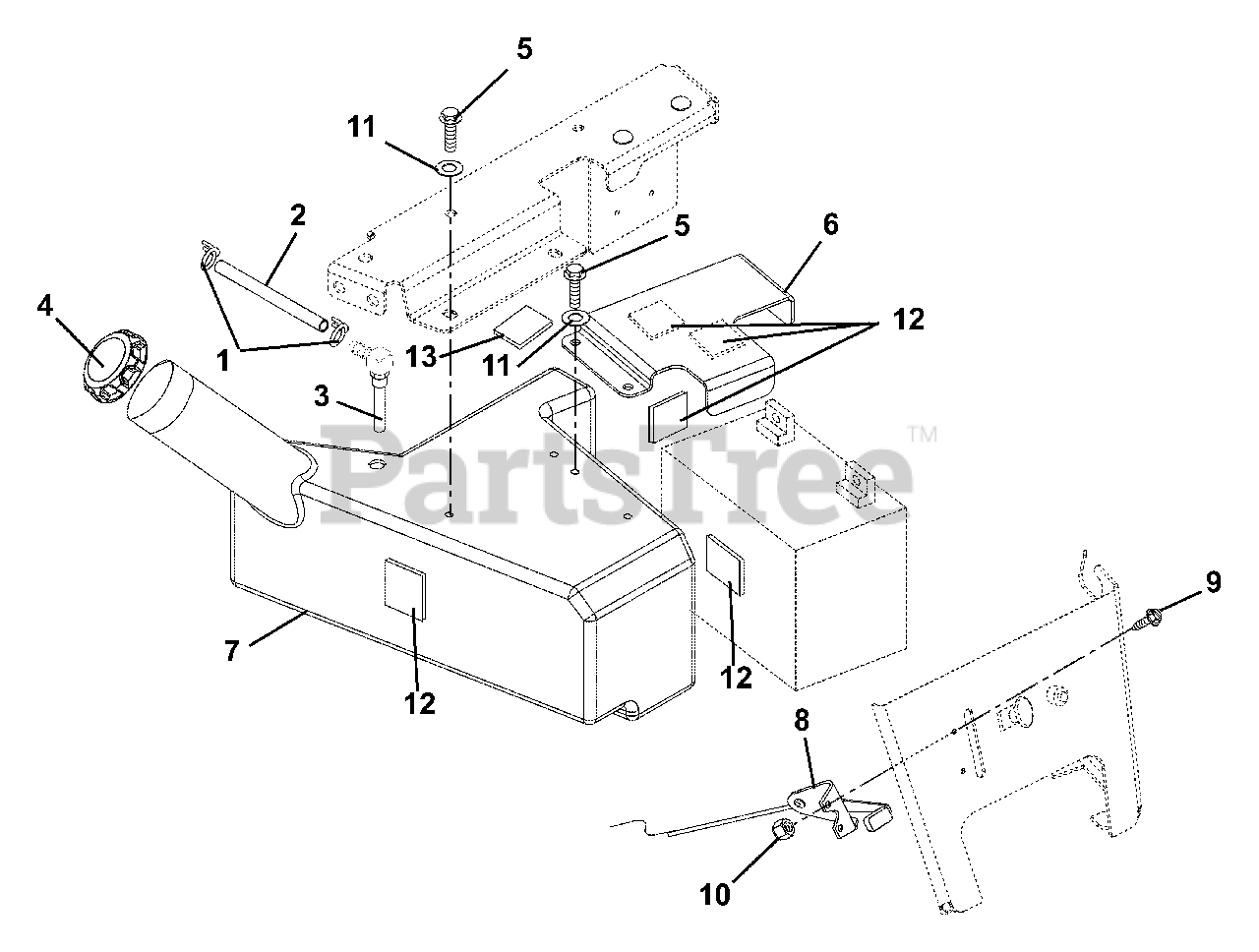

Gas Tank Parts Diagram

  • Title

1

Gravely 06939100

Clamp, Hose Wire .490 /.510 x .116

$3.99

$

In Stock, Qty 10

0

2

Gravely 021134

Gas Line, Bulk 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03606500

Fitting, Tank

$

$

Not available

4

Gravely 01538400

Fuel Cap

$15.99

$

Usually ships in 4-12 days

0

5

Gravely 07049400

Bolt, Serrated Hex Flange Washer Head .25-20 x .75

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 02771351

Bracket, Battery

$28.99

$

Usually ships in 4-12 days

0

7

Gravely 02765100

Tank, Fuel

$

$

Not available

8

Gravely 01588600

Cable, Throttle

$64.99

$

Usually ships in 4-12 days

0

9

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06536000

Nut, Locking Nylon 10-24 with Insertg
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 03645700

Pad, Foam

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 00932300

VHB Tape

$3.99

$

Usually ships in 4-12 days

0
