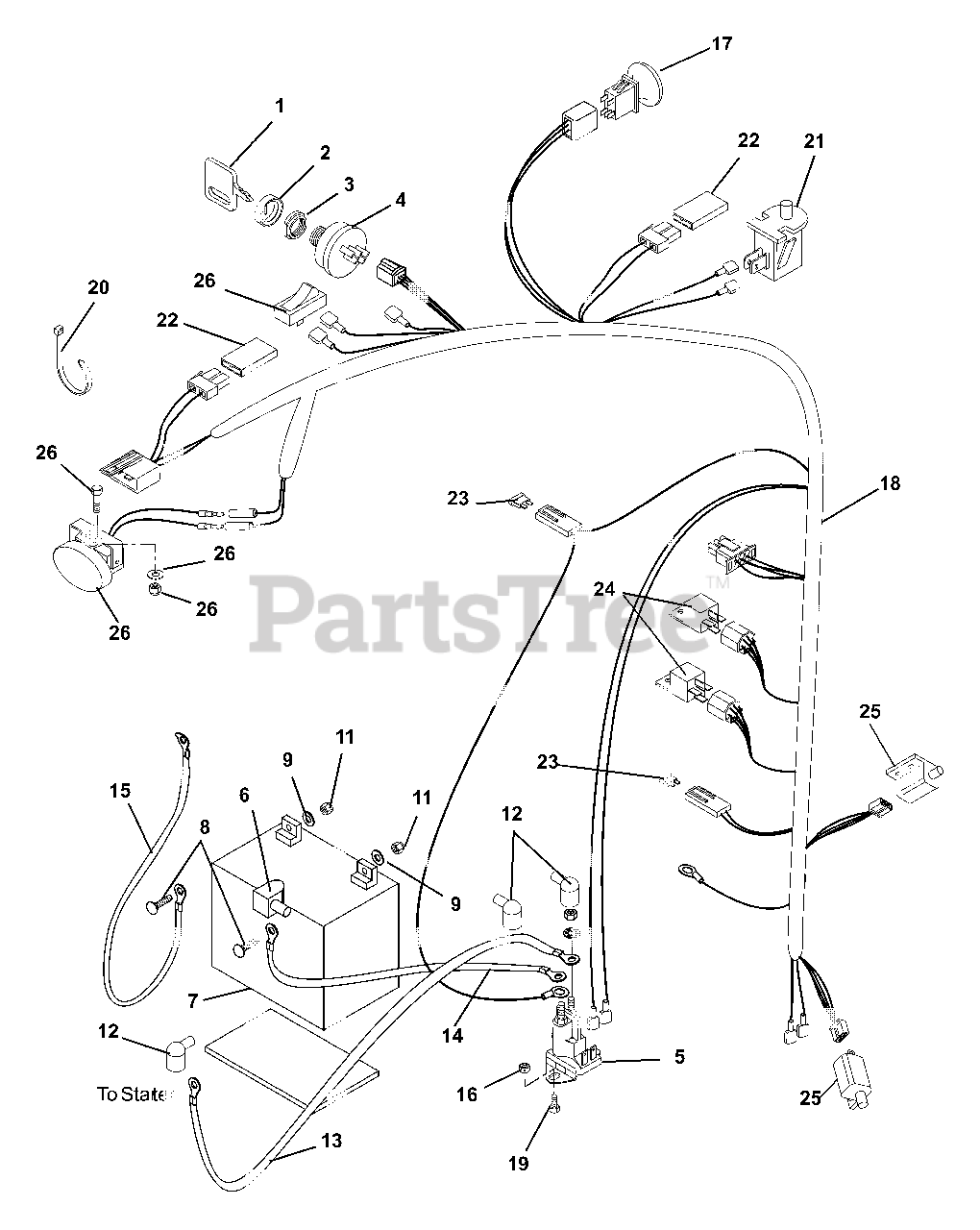

927066 (10528) - Gravely 28" Rear-Engine Riding Mower, 10.5hp Briggs & Stratton, Hydro (SN: 000101 & Above) Electrical System Parts Diagram

28" Rear-Engine Riding Mower, 10.5hp Briggs & Stratton, Hydro

Electrical System Parts Diagram

  • Title
1

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 20+

0

2

Gravely 045490

Cap, Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 045489

Nut, Panel .625-32
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

4

Gravely 01563700

Key Switch

$34.99

$

In Stock, only 1 left!

0

5

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Gravely 039619

Insulator
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

7

Battery, Sealed Maintenace Free U1-330

Battery, Sealed Maintenace Free U1-330

Note: (See Local Battery Supplier)

$

$

Not available

8

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

12

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 3 left!

0

13

Gravely 02727200

Cable, Positive Battery
(Superseded to 02727201)

$20.99

$

In Stock, Qty 9

0

14

Gravely 02727900

Starter Cable 13"

$35.99

$

In Stock, only 1 left!

0

15

Gravely 08840400

Starter Cable 16"

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 04940800

Switch, PTO NMIR

$

$

Not available

18

Gravely 02791700

Harness, Reverse No Mow Wire
(Superseded to 02791701)

$232.99

$

Usually ships in 4-12 days

0

19

Gravely 07412100

Screw, Tapping 10-24 x .375 Hex Washer Head

$0.99

$

Usually ships in 4-12 days

0

20

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

21

Gravely 02754100

Switch- Snap Mounting (N.O.)

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

22

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

23

Gravely 09351100

Fuse, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

24

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

25

Gravely 08828100

Switch, Interlock

$20.99

$

In Stock, only 1 left!

0

26

Gravely 72702700

Light Kit

Note: (Optional)

$

$

Not available
