927065 (1440 RER) - Ariens 40" Rear-Engine Rider, 14hp Briggs & Stratton, Hydro (SN: 000101 - 000399) 40" Deck, Belts, Blades And Idlers Parts Diagram

40" Rear-Engine Rider, 14hp Briggs & Stratton, Hydro

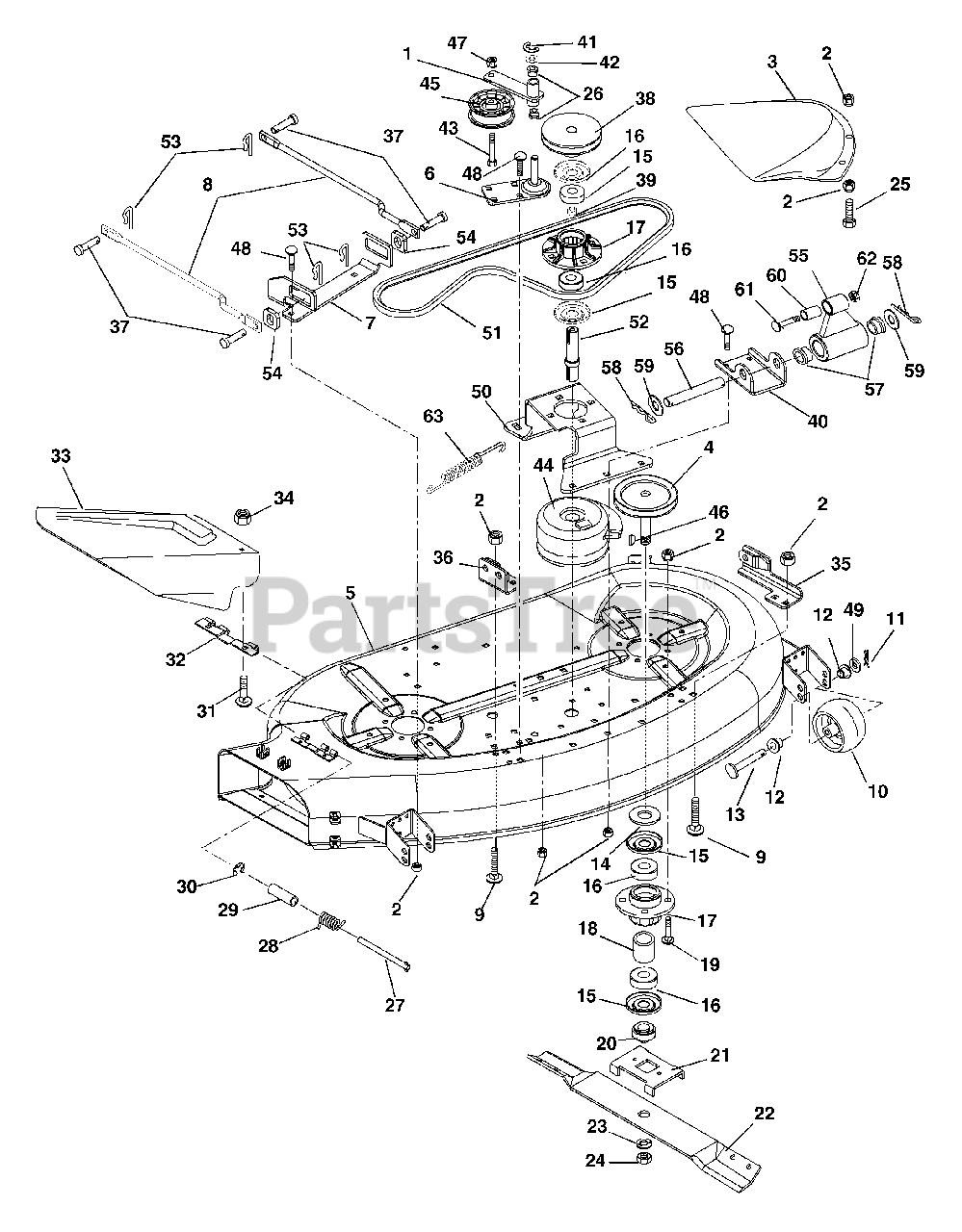

40" Deck, Belts, Blades And Idlers Parts Diagram

  • Title

1

Ariens 02769200

WLDMT-IDLER

$

$

Not available

2

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 01520100

COVER

$59.99

$

Usually ships in 4-12 days

0

4

Ariens 03615400

L. SPINDLE SHEAVE

$90.99

$

Usually ships in 4-12 days

0

Ariens 03615300

R. SPINDLE SHEAVE

$75.99

$

Usually ships in 4-12 days

0

5

Ariens 02769600

WLDMT - 40" DECK RAW

$

$

Not available

6

Ariens 02769300

BKT-IDLER MOUNT

$

$

Not available

7

Ariens 02778500

BRKT, REAR HANGER (40" DECK)

$

$

Not available

8

Ariens 02769700

LINK-STABILIZER 40" DECK BLK

$

$

Not available

9

Ariens 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

10

Ariens 02745400

ROLLER

$15.99

$

In Stock, Qty 20+

0

11

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$1.49

$

In Stock, Qty 20+

0

13

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

$5.99

$

In Stock, only 1 left!

0

14

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

15

Ariens 00341900

BEARING SLINGER

$22.99

$

In Stock, only 2 left!

0

16

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

17

Ariens 03625000

SPINDLE HOUSING

$168.99

$

Usually ships in 4-12 days

0

18

Ariens 02526400

SPACER .753X1.000X1.140

$26.99

$

Usually ships in 4-12 days

0

19

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

20

Ariens 03037500

RETAINER HUB

$71.99

$

In Stock, only 2 left!

0

21

Ariens 03485500

BLADE TRAY 48

$20.99

$

In Stock, only 1 left!

0

22

Ariens 03624700

BLADE

$31.99

$

In Stock, Qty 5

0

23

Ariens 06310300

@WSHR-LK .75X.188 REG YWZC

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06537700

NUT-JAM .75-10 YWZC

$2.49

$

In Stock, only 2 left!

0

25

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 20+

0

27

Ariens 03624200

PIN

$51.99

$

In Stock, only 1 left!

0

28

Ariens 08314500

SG-TORS .090X.37X.63

$14.99

$

In Stock, only 2 left!

0

29

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$5.99

$

In Stock, only 4 left!

0

30

Ariens 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

31

Ariens 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 02709551

HINGE PLATE

$27.99

$

In Stock, only 1 left!

0

33

Ariens 03609800

40IN. CHUTE DEFLECTOR

$89.99

$

Usually ships in 4-12 days

0

34

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 02769800

BKT-DECK LINK (LH)

$

$

Not available

36

Ariens 02763700

WLDMT DECK LINK BKT (RH)

$

$

Not available

37

Ariens 06817400

PIN-CLEV .494X1.00 BLKZC

$3.99

$

Usually ships in 4-12 days

0

38

Ariens 02779000

PULLEY, 40" DECK INPUT

$

$

Not available

39

Ariens 02526400

SPACER .753X1.000X1.140

$26.99

$

Usually ships in 4-12 days

0

40

Ariens 02778300

BRKT, FRONT HANGER

$14.99

$

Usually ships in 4-12 days

0

41

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

43

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

44

Ariens 03643100

ELECTRIC CLUTCH/BRAKE (3.4AMP)

$296.99

$

Usually ships in 4-12 days

0

45

Ariens 07309300

IDLER-FLAT 3.00X.38

$37.99

$

In Stock, only 1 left!

0

46

Ariens 06604200

KEY-WDRF .188X.625X.31 SAE9MOD
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

48

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

49

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

50

Ariens 02768600

BKT SPINDLE HSG MOUNT

$

$

Not available

51

Ariens 07220500

V-BELT, HA-RAW EDGE

Note: (38.37)

$37.99

$

Usually ships in 4-12 days

0

52

Ariens 02778600

SHAFT, 40" DECK INPUT

$108.99

$

Usually ships in 4-12 days

0

53

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

54

Ariens 02778400

SLIDER, HANGER BRKT

$

$

Not available

55

Ariens 02779700

LINK, FRONT LIFT (40" DECK)

$

$

Not available

56

Ariens 02780000

PIVOT, FRONT LIFT LOWER

$5.99

$

Usually ships in 4-12 days

0

57

Ariens 01591100

BUSHING-1"X.75"X1"

$

$

Not available

58

Ariens 06712200

PIN, HAIR #6

$

$

Not available

59

Ariens 06427600

WSHR-FL-STL .700X1.47X.134 YWZ

$5.99

$

In Stock, only 1 left!

0

60

Ariens 05516400

BSHG-SLV .500X.750X1.560

$5.99

$

In Stock, only 3 left!

0

61

Ariens 06223700

BLT-RDHDSQSHNK .50-13X2.75 YZ
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

62

Ariens 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.49

$

Usually ships in 4-12 days

0

63

Ariens 08353300

SG-TENS .095X.500X5.5 WLD60 YZ

$14.99

$

Usually ships in 4-12 days

0
