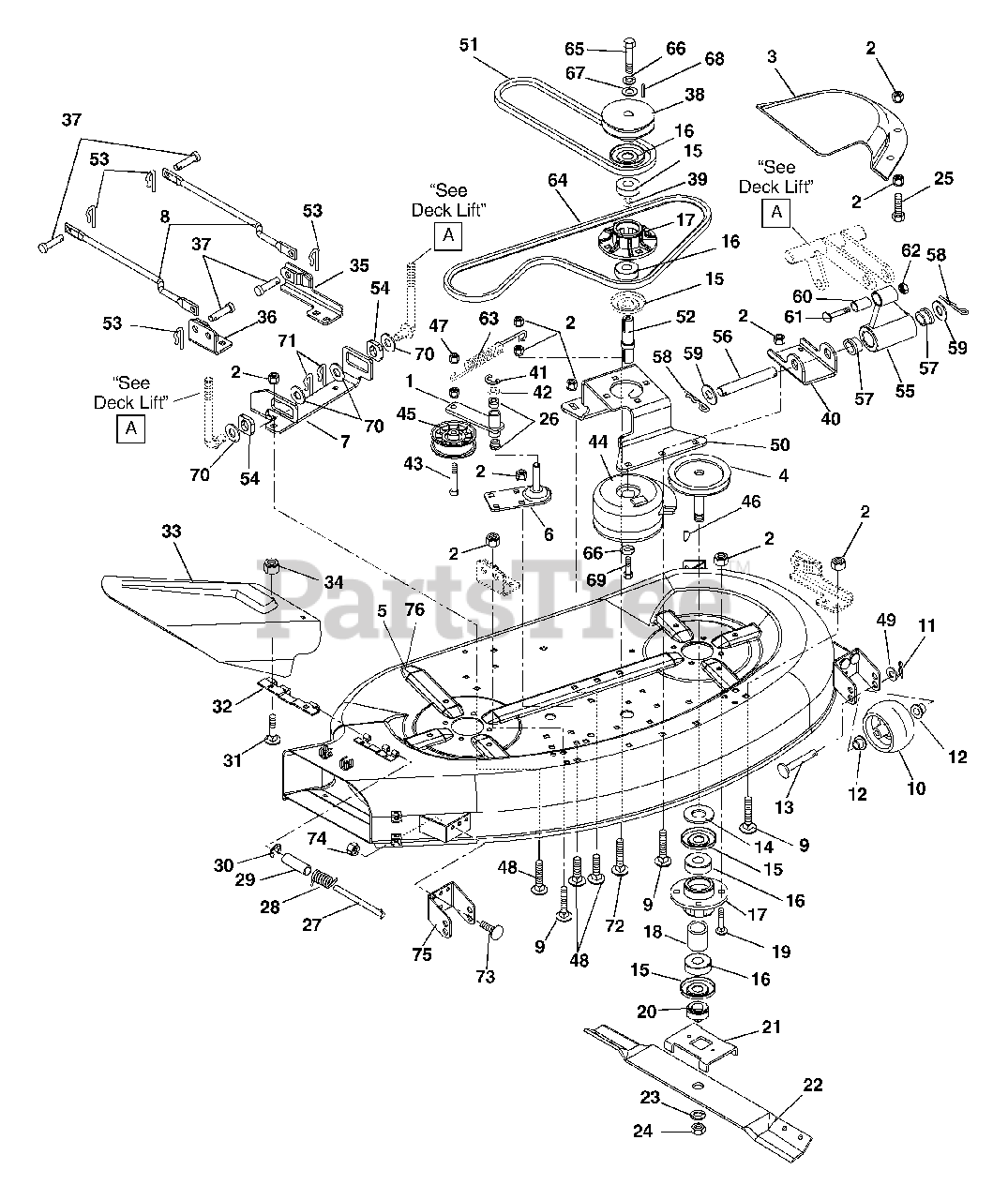

927064 (1440) - Gravely 40" Rear-Engine Riding Mower, 14hp Briggs & Stratton, Hydro (SN: 010000 & Above) Deck, Belts, Blades And Idlers 40" Parts Diagram

40" Rear-Engine Riding Mower, 14hp Briggs & Stratton, Hydro

Deck, Belts, Blades And Idlers 40" Parts Diagram

  • Title

1

Gravely 02769200

Weldment, Idler

$

$

Not available

2

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 02781200

Cover, 40" Deck Sheave

$

$

Not available

4

Gravely 03615400

Sheave, Left Spindle

$90.99

$

Usually ships in 4-12 days

0

4

Gravely 03615300

Sheave, Right Spindle

$75.99

$

Usually ships in 4-12 days

0

5

Gravely 02769600

Deck, 40"

$

$

Not available

6

Gravely 02769300

Bracket, Idler Mount

$

$

Not available

7

Gravely 02778500

Bracket, Rear Hanger

$

$

Not available

8

Gravely 02769700

Link, Stabilizer 40" Deck

$

$

Not available

9

Gravely 06226600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 55
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

10

Gravely 050825

Roller
(Superseded to 02745400)

$15.99

$

In Stock, Qty 20+

0

11

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 036241

Bushing, Flange .372 x .500 x .312 x .625
(Superseded to 05503600)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 02747500

Clevis Pin .368/.373 x 3.25

$5.99

$

In Stock, only 2 left!

0

14

Gravely 06444200

Washer, Flat Steel .755 x 1.25 x .125
(Superseded to 06441500)

$3.99

$

In Stock, Qty 13

0

15

Gravely 00341900

Bearing Slinger

$22.99

$

In Stock, only 2 left!

0

16

Gravely 035925

Bearing, Ball .750 x 1.781 x .61
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

17

Gravely 03625000

Spindle Housing

$168.99

$

Usually ships in 4-12 days

0

18

Gravely 035971

Spacer .751 x 1.00 x 1.14
(Superseded to 02526400)

$26.99

$

Usually ships in 4-12 days

0

19

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.0 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

20

Gravely 039559

Retainer Hub
(Superseded to 03037500)

$71.99

$

In Stock, only 2 left!

0

21

Gravely 03485500

Blade Tray 48

$20.99

$

In Stock, only 1 left!

0

22

Gravely 03624700

Blade

$31.99

$

In Stock, Qty 5

0

23

Gravely 06310300

Washer, Lock .75 x .188

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06537700

Nut, Jam .75-10

$2.49

$

In Stock, only 2 left!

0

25

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 036057

Bushing, Flange .500 x .625 x .312 x .75
(Superseded to 05503700)

$0.99

$

In Stock, Qty 17

0

27

Gravely 03624200

Pin

$51.99

$

In Stock, only 1 left!

0

28

Gravely 08307200

Spring, Torsion .095 x .50 x 1.00

$20.99

$

Usually ships in 4-12 days

0

29

Gravely 035997

Bushing
(Superseded to 02202900)

$5.99

$

In Stock, only 4 left!

0

30

Gravely 05706300

Ring, Retaining External .313 x .025

$0.99

$

Usually ships in 4-12 days

0

31

Gravely 06214300

Bolt, Round Head Square Neck .25-20 x .50
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 02709551

Hinge Plate

$27.99

$

In Stock, only 1 left!

0

33

Gravely 03609800

40 In Deflector

$89.99

$

Usually ships in 4-12 days

0

34

Gravely 06527600

Nut, Locking Flange .25-20 Grade F

$0.99

$

In Stock, Qty 20+

0

35

Gravely 02769800

Bracket, Deck Link Left Hand

$

$

Not available

36

Gravely 02763700

Bracket, Deck Link Right Hand

$

$

Not available

37

Gravely 06817400

Pin, Clevis .494 x 1.00

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 02779000

Pulley, 40" Deck Input

$

$

Not available

39

Gravely 035971

Spacer .75 x 1.00 x 1.14
(Superseded to 02526400)

$26.99

$

Usually ships in 4-12 days

0

40

Gravely 02778300

Bracket, Front Hanger

$14.99

$

Usually ships in 4-12 days

0

41

Gravely 05710200

Ring, Retaining External .50 x .042

$0.99

$

In Stock, Qty 20+

0

42

Gravely 06436600

Washer, Flat Steel .505 x .880 x .072
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

43

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

44

Gravely 03643100

Electric Clutch/Brake

$296.99

$

Usually ships in 4-12 days

0

45

Gravely 07309300

Idler, Flat 3.00 x .38

$37.99

$

In Stock, only 1 left!

0

46

Gravely 06604200

Key, Woodruff .188 x .625 x .31
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 06534900

Nut, Locking Center .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 06227000

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

49

Gravely 06221800

Bolt, Round Head Square Neck .31-18 x 1.00
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

50

Gravely 02768600

Bracket, Spindle Housing Mount

$

$

Not available

51

Gravely 07242600

Belt, 40" Deck PTO

$45.99

$

In Stock, only 2 left!

0

52

Gravely 02778600

Input Shaft 40" Deck

$108.99

$

Usually ships in 4-12 days

0

53

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0

54

Gravely 02778400

Slider, Hanger Bracket

$

$

Not available

55

Gravely 02779700

Link, Front Lift

$

$

Not available

56

Gravely 02780000

Pivot, Front Lift Lower

$5.99

$

Usually ships in 4-12 days

0

57

Gravely 01591100

Bushing, 1.00 x .75 x 1.00

$

$

Not available

58

Gravely 06712200

Pin, Hair

$

$

Not available

59

Gravely 035640

Washer, Flat Steel .75 x 1.47 x .134
(Superseded to 06427600)

$5.99

$

In Stock, only 1 left!

0

60

Gravely 05516400

Bushing, Sleeve .50 x .75 x 1.56

$5.99

$

In Stock, only 3 left!

0

61

Gravely 06223700

Bolt, Round Head Square Neck .50-13 x 2.75
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

62

Gravely 06519700

Nut, Locking Center Jam .50-13

$2.49

$

In Stock, only 3 left!

0

63

Gravely 011263

Spring, Tension .095 x .50 x 5.50
(Superseded to 08353300)

$14.99

$

Usually ships in 4-12 days

0

64

Gravely 041200

V-Belt A-Section 12.58 x .48
(Superseded to 07220500)

$37.99

$

Usually ships in 4-12 days

0

65

Gravely 05974500

Bolt, Hex .38-16 x 01.00 Grade 8 with Epoxy Patch
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

66

Gravely 06306500

Washer, Locking .375 x .115 Heavy
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

67

Gravely 06442400

Washer, Flat Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

68

Gravely 06606000

Key, Square.187 x .50 x .187 Hardened

$10.99

$

In Stock, only 1 left!

0

69

Gravely 05958600

Bolt, Hex .38-24 x 2.00
(Superseded to 05902015)

$2.99

$

In Stock, only 2 left!

0

70

Gravely 06441800

Washer, Flat Steel .518 x 2.00 x .105
(Superseded to 06401127)

$3.99

$

Usually ships in 4-12 days

0

71

Gravely 06714900

Pin, Hair External

$0.99

$

In Stock, Qty 20+

0

72

Gravely 06224300

Bolt, Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06200314)

$3.99

$

In Stock, only 3 left!

0

73

Gravely 06212200

Bolt-Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

74

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

75

Gravely 02747600

Roller Clevis
(Superseded to 02747651)

$27.99

$

In Stock, only 1 left!

0

76

Gravely 52711200

Kit, 40" Deck Assembly Service

$

$

Not available
