927064 (1440) - Gravely 40" Rear-Engine Riding Mower, 14hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Frame, Hood And Seat Parts Diagram

40" Rear-Engine Riding Mower, 14hp Briggs & Stratton, Hydro

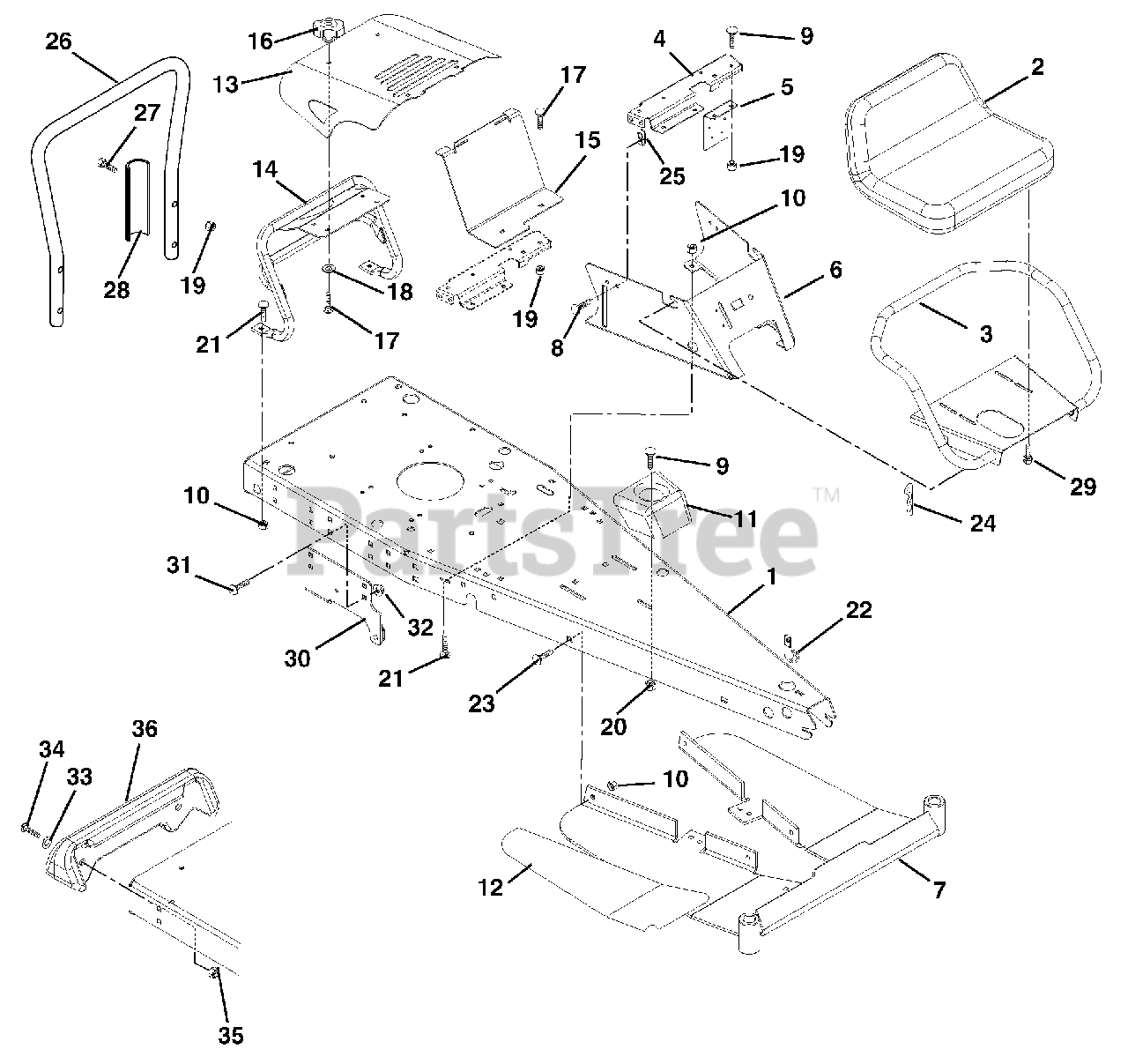

Frame, Hood And Seat Parts Diagram

  • Title

1

Gravely 02780151

Frame

$

$

Not available

2

Gravely 01597000

Seat-Low Back TS2300

$143.99

$

Usually ships in 4-12 days

0

3

Gravely 02775851

Weldment, Seat Plate and Armrest

$74.99

$

Usually ships in 4-12 days

0

4

Gravely 02764451

Reforcement, Seat Support

$22.99

$

In Stock, only 1 left!

0

5

Gravely 02766151

Panel, Solenoid Mounting

$

$

Not available

6

Gravely 02760353

Seat Support

$

$

Not available

7

Gravely 02760253

Weldment-Footrest

$216.99

$

Usually ships in 4-12 days

0

8

Gravely 07049400

Bolt-Serrated Hex Flange Washer Head .25-20 x .75

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 06226700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 02768500

Cupholder

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 02771700

Grip, Rear Engine Rider Footrest Left Hand

$9.49

$

Usually ships in 4-12 days

0

12

Gravely 02771800

Grip, Rear Engine Rider Footrest Right Hand

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 02771453

Engine-Hood (064)

Note: (064)

$

$

Not available

14

Gravely 02771651

Weldment Tube (064)

Note: (064)

$

$

Not available

15

Gravely 02771551

Bracket, Hood Support (064)

Note: (064)

$

$

Not available

16

Gravely 07534800

Knob, Clamping .31-18 Nyloc (064)

Note: (064)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 06221800

Bolt-Round Head Square Neck .31-18 x 1.00 (064)
(Superseded to 06200237)

Note: (064)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 040380

Nut-Push .312 (064)
(Superseded to 06514900)

Note: (064)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06544400

Nut-Locking-Top-Flange .31-18
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06530400

Nut-Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06227000

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

22

Gravely 036518

J-Clamp
(Superseded to 06909400)

$3.49

$

In Stock, Qty 5

0

23

Gravely 06226600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

24

Gravely 06711900

Pin-Hair-External .12 x .31 x 2.37

$2.99

$

In Stock, only 2 left!

0

25

Gravely 032369

Nut-Retainer .25-20 x .56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 02701251

Stand Up Tube (060, 062)

Note: (060, 062)

$41.99

$

Usually ships in 4-12 days

0

27

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5 (060, 062)
(Superseded to 05901710)

Note: (060, 062)

$1.49

$

In Stock, Qty 12

0

28

Gravely 02722700

Brace, Service Bar (060, 062)
(Superseded to 02722751)

Note: (060, 062)

$14.99

$

Usually ships in 4-12 days

0

29

Gravely 00591400

Bolt-Serrated Hex Flange Washer Head .31-18 x 1

$

$

Not available

30

Gravely 02774900

Bracket, Transmission - Right Hand

$

$

Not available

30

Gravely 02775000

Bracket, Transmission - Left Hand

$

$

Not available

31

Gravely 06227000

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

32

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06544500

Nut-Locking-Top-Flange .38-16
(Superseded to 06545500)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 01595251

Weight

Note: (Optional)

$

$

Not available
