927064 (1440) - Gravely 40" Rear-Engine Riding Mower, 14hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Brake System Parts Diagram

40" Rear-Engine Riding Mower, 14hp Briggs & Stratton, Hydro

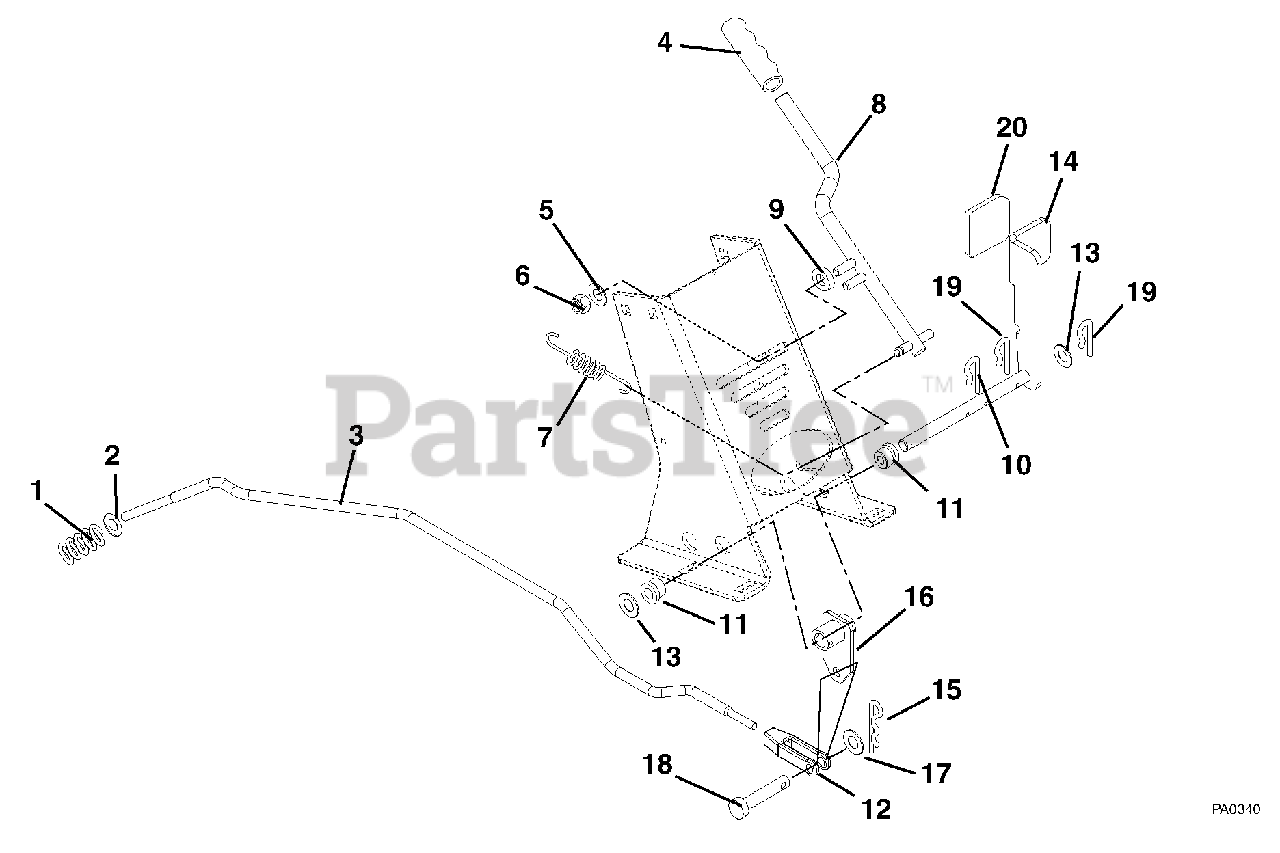

Brake System Parts Diagram

  • Title

1

Gravely 08327100

Spring, Compression .080 x .52 x 2.90

$9.49

$

Usually ships in 4-12 days

0

2

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

3

Gravely 02776500

Rod, Brake

$

$

Not available

4

Gravely 07527500

Grip

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 08330300

Spring, Tension .048 x .44 x 2.12

$

$

Not available

8

Gravely 02777300

Weldment, Parking Brake

$

$

Not available

9

Gravely 024815

Bushing, Flange .406 x .88 x .27 x .140 Grade 2
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

10

Gravely 06714500

Pin, Spring Clip

$2.49

$

In Stock, Qty 20+

0

11

Gravely 034738

Bushing, Flange .515 x .75 x .745 x 1.00 Nylon
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 034633

Yoke, .312-24 x 2.25
(Superseded to 07014700)

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 06439200

Washer, Flat Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 02761800

Weldment, Brake Pedal

$

$

Not available

15

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 02762100

Brake Rod Arm and Hub

$

$

Not available

17

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

18

Gravely 06811800

Pin, Clevis .312 x .822
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0

20

Gravely 02773900

Grip, Pedal

$12.99

$

In Stock, only 1 left!

0
