927063 (1232 RER) - Ariens 32" Rear-Engine Rider, 12hp Briggs & Stratton, Hydro (SN: 000400 - 009999) Frame, Hood And Seat Parts Diagram

32" Rear-Engine Rider, 12hp Briggs & Stratton, Hydro

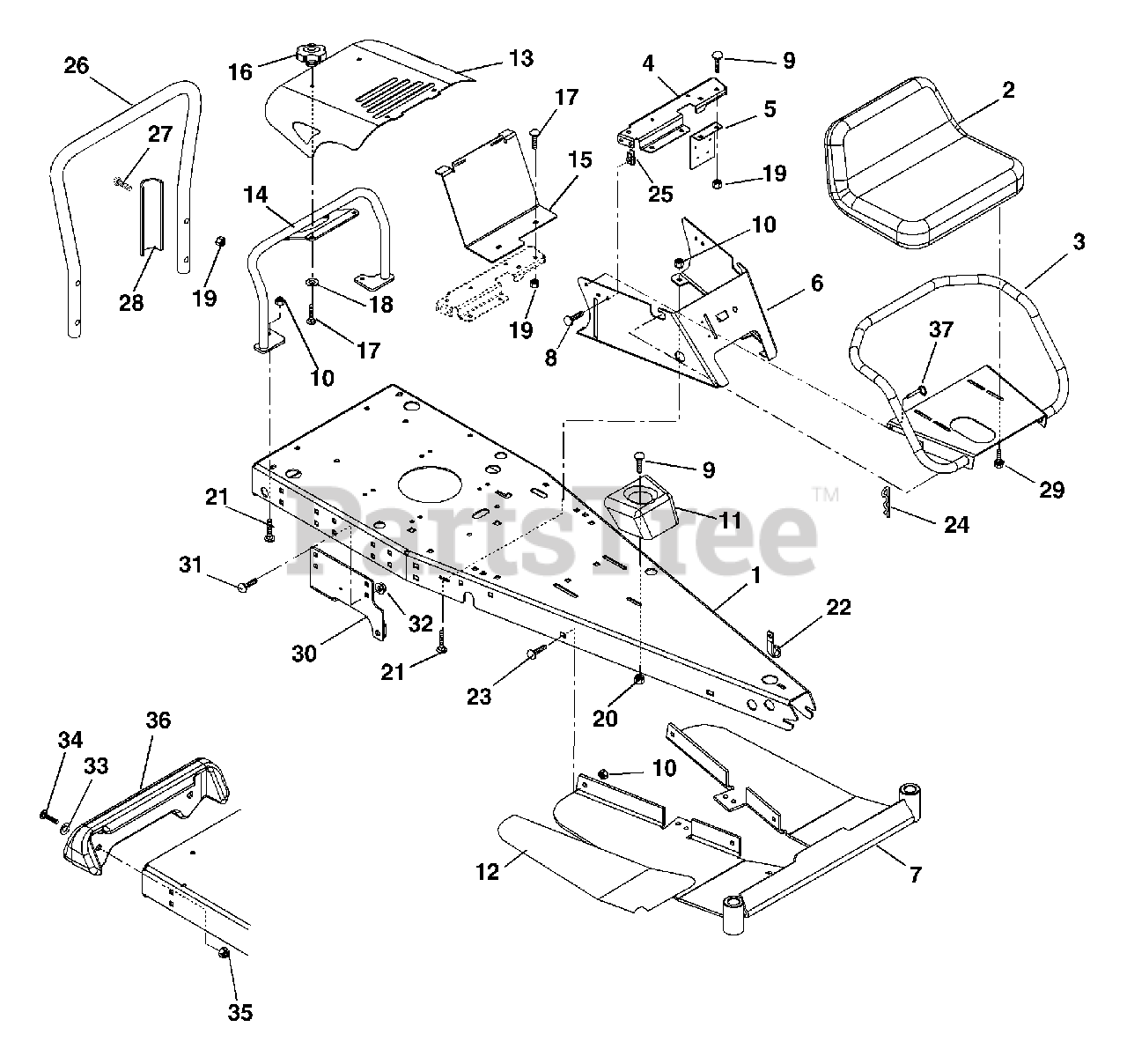

Frame, Hood And Seat Parts Diagram

  • Title

1

Ariens 02780151

FRAME,RER/SPORT-ZOOM

$

$

Not available

2

Ariens 01597000

SEAT-LOW BACK TS2300

$143.99

$

Usually ships in 4-12 days

0

3

Ariens 02775851

WLDMT, SEAT PLATE & ARMREST

$74.99

$

Usually ships in 4-12 days

0

4

Ariens 02764451

REINFORCEMENT, SEAT SUPPORT

$22.99

$

In Stock, only 1 left!

0

5

Ariens 02766151

PANEL-SOLENOID MOUNTING

$

$

Not available

6

Ariens 02760359

SEAT SUPPORT RER/MINI-Z-

$

$

Not available

7

Ariens 02760259

WLDMT-FOOTREST RER/MINI-Z-

$

$

Not available

8

Ariens 07049400

BLT-SERHFWH .25-20X.75 YWZC

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 06226700

BLT-RDHDSQNK .31-18X.75 G5BZ
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 02768500

CUP HOLDER RER

$20.99

$

Usually ships in 4-12 days

0

12

Ariens 02771700

GRIP, RER FOOTREST (LH)

$9.49

$

Usually ships in 4-12 days

0

12

Ariens 02771800

GRIP, RER FOOTREST (RH)

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 02771459

ENGINE-HOOD ARIENS
(Superseded to 71504300)

Note: (927065)

$

$

Not available

14

Ariens 02771651

WLDM'T TUBE

Note: (927065)

$

$

Not available

15

Ariens 02771551

BRACKET-HOOD SUPPORT

Note: (927065)

$

$

Not available

16

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

Note: (927065)

$3.49

$

In Stock, Qty 20+

0

17

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

Note: (927065)

$2.49

$

In Stock, only 3 left!

0

18

Ariens 06514900

NUT-PUSH .312

Note: (927065)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

22

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 5

0

23

Ariens 06226600

BLT-RDHDSQNK .38-16X1.00 G5BZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

24

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 2 left!

0

25

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

26

Ariens 02701251

TUBE

Note: (927061, 063)

$41.99

$

Usually ships in 4-12 days

0

27

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

Note: (927061, 063)

$1.49

$

In Stock, Qty 12

0

28

Ariens 02722700

BRACE
(Superseded to 02722751)

Note: (927061, 063)

$14.99

$

Usually ships in 4-12 days

0

29

Ariens 00591400

BLT-SERHFWH .31-18 X 1 YWZC

$

$

Not available

30

Ariens 02774900

BRKT, TRANS (RH-WLDMNT)

$

$

Not available

30

Ariens 02775000

BRKT, TRANS (LH-WLDMNT)

$

$

Not available

31

Ariens 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

32

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 01595251

WEIGHT, SPORT-Z

Note: (Optional)

$

$

Not available

37

Ariens 07003300

PIN-DET W/RING .25X1.00

$9.49

$

Usually ships in 4-12 days

0
