927063 (1232 RER) - Ariens 32" Rear-Engine Rider, 12hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Deck Lift Parts Diagram

32" Rear-Engine Rider, 12hp Briggs & Stratton, Hydro

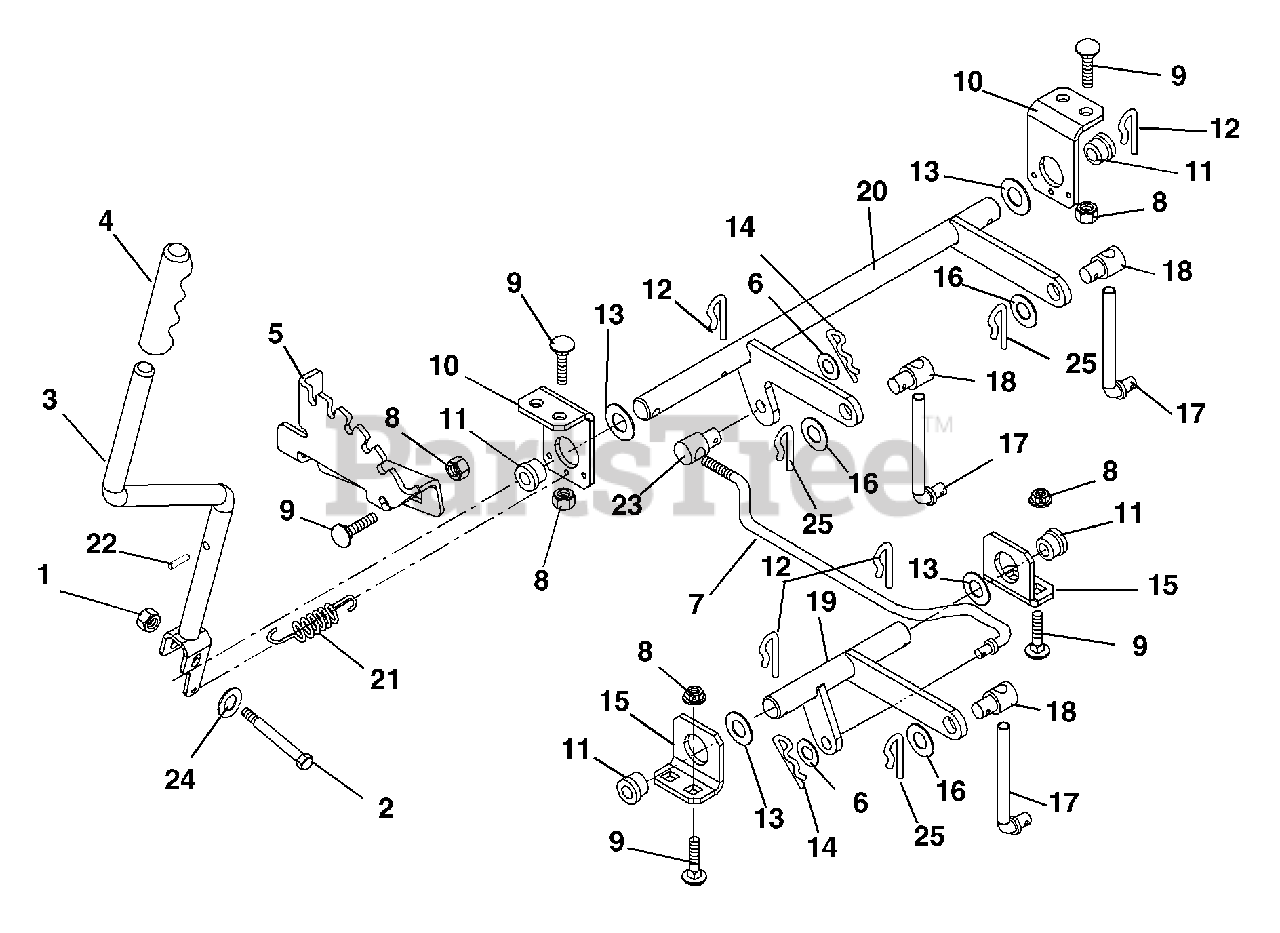

Deck Lift Parts Diagram

  • Title

1

Ariens 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 05980300

BOLT,SHLDR .38X1.25 .31-18 PLN

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 02762451

WLDMT-LIFT HANDLE
(Superseded to 51511000)

$

$

Not available

4

Ariens 07527500

GRIP

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 02762300

DETENT PLATE

$

$

Not available

6

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 02776300

ROD, DECK LIFT

$

$

Not available

8

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

10

Ariens 02762800

BRACKET-HANGER

$

$

Not available

11

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 7

0

12

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

13

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

14

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 02762700

BRACKET-PIVOT

$

$

Not available

16

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

17

Ariens 02778100

LINK, LIFT

Note: (061, 063)

$40.99

$

Usually ships in 4-12 days

0

Ariens 02778100

LINK, LIFT

Note: (065)

$40.99

$

Usually ships in 4-12 days

0

18

Ariens 01590400

TRUNNION-.50

Note: (061, 063)

$48.99

$

In Stock, only 4 left!

0

Ariens 01590400

TRUNNION-.50

Note: (065)

$48.99

$

In Stock, only 4 left!

0

19

Ariens 02762500

WMT, FRONT LIFT

Note: (061, 063)

$

$

Not available

Ariens 02779800

LIFT, FRONT (4O" DECK)

Note: (065)

$34.99

$

Usually ships in 4-12 days

0

20

Ariens 02762600

WMT, REAR LIFT

Note: (061, 063)

$

$

Not available

Ariens 02778200

LIFT, REAR (WLDMNT)

Note: (065)

$

$

Not available

21

Ariens 08333900

SPRING, EXTENSION

$

$

Not available

22

Ariens 05800700

PIN-ROLL .250X1.25

$0.99

$

In Stock, Qty 20+

0

23

Ariens 02779500

PIVOT, ROD

$

$

Not available

24

Ariens 06443800

WSHR,FLT .438X1.00X.160 ZCC

$

$

Not available

25

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0
