927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 020000 & Above) Steering And Front Wheels Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

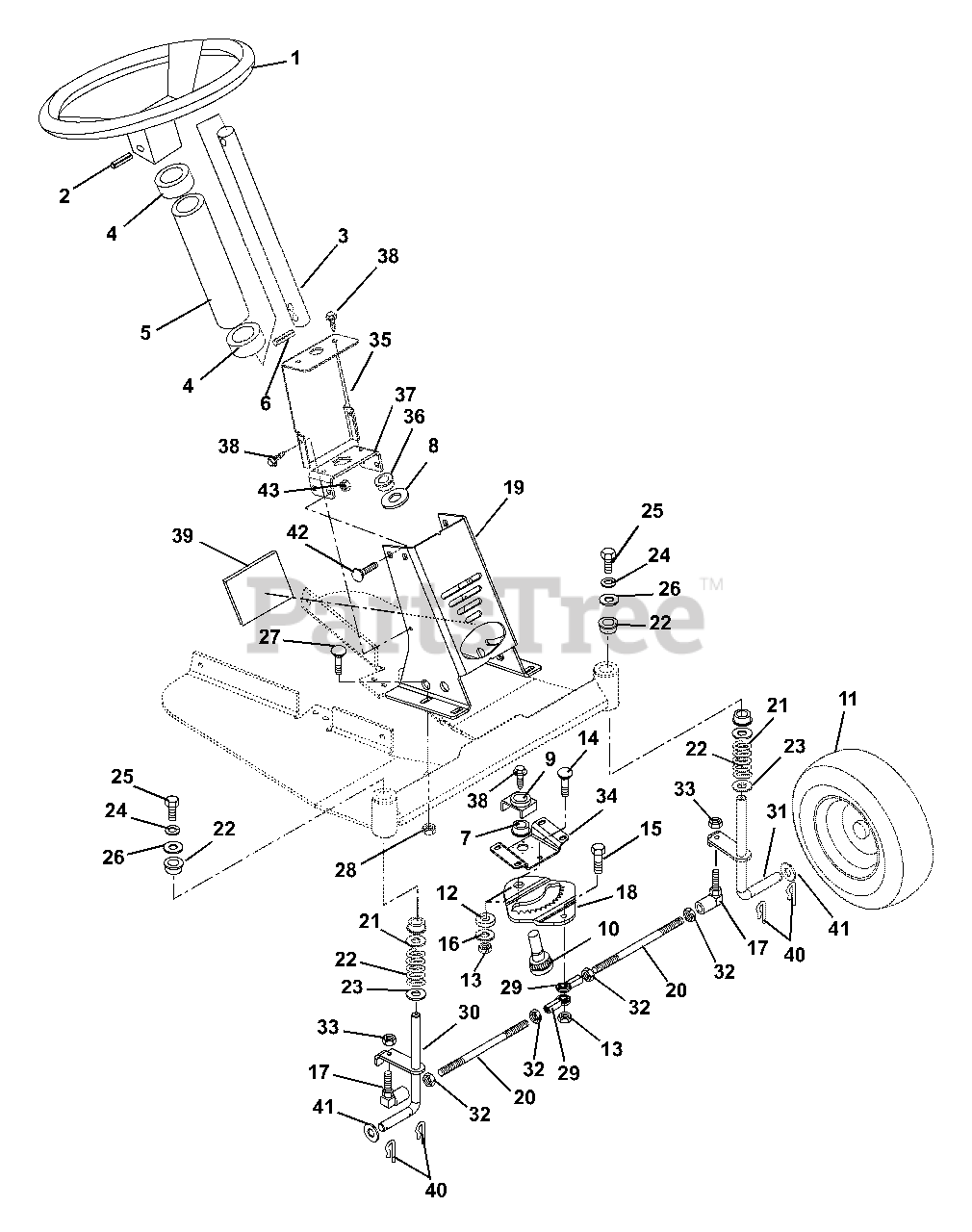

Steering And Front Wheels Parts Diagram

  • Title

1

Gravely 02753700

Steering Wheel 13 Inch

$

$

Not available

2

Gravely 05803700

Pin, Roll .25 x 1.75

$0.99

$

In Stock, Qty 20+

0

3

Gravely 02749100

Steering Shaft

$131.99

$

Usually ships in 4-12 days

0

4

Gravely 07503700

Plug

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 02753800

Tube

$

$

Not available

6

Gravely 05804600

Pin, Roll .188 x .75

$

$

Not available

7

Gravely 05505300

Bushing, Flange .625 x 1.156 x .375

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 06418100

Washer, Hardened Steel .515 x .97 x .062

$3.99

$

In Stock, only 4 left!

0

9

Gravely 01310000

Retaining Plate1

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 02705400

Pinion
(Superseded to 03841600)

$

$

Not available

11

Gravely 07126400

Tire/Wheel Assembly

$68.99

$

In Stock, only 2 left!

0

11

Gravely 07108000

Tire 4.10/3.50 - 4

$28.99

$

In Stock, Qty 9

0

11

Gravely 05505800

Bushing, Flange .75 x 1.38 x .75 x 1.557

$7.49

$

In Stock, Qty 7

0

12

Gravely 02768400

Spacer, Steering Gear

$

$

Not available

13

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06226600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

15

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06442400

Washer, Flat Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

17

Gravely 02917100

Ball Joint

$23.99

$

In Stock, Qty 6

0

18

Gravely 02761300

Steering Gear

$

$

Not available

19

Gravely 02775553

Box, Steering

$

$

Not available

20

Gravely 02765700

Steering Link

$103.99

$

Usually ships in 4-12 days

0

21

Gravely 02765800

Spring, Suspension

$68.99

$

In Stock, only 1 left!

0

22

Gravely 01591100

Bushing 1.00 x .75 x 1.00

$

$

Not available

23

Gravely 06427600

Washer-Flat-Steel .70 x 1.47 x .134

$5.99

$

In Stock, only 1 left!

0

24

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06442400

Washer, Flat Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

27

Gravely 06227000

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

28

Gravely 06544400

Nut, Locking Top Flange .38-16
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 044753

Rod End, .38 Right Hand
(Superseded to 03563100)

$15.99

$

In Stock, only 2 left!

0

30

Gravely 02765900

Weldment, Spindle Right Hand

$

$

Not available

31

Gravely 02766000

Weldment, Spindle Left Hand

$

$

Not available

32

Gravely 06534700

Nut, Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

33

Gravely 06538800

Nut, Locking Nylon .375-24 With Insert

$1.99

$

In Stock, only 4 left!

0

34

Gravely 02761451

Steering Gear Support

$

$

Not available

35

Gravely 02771200

Bracket, Steering Column

$

$

Not available

36

Gravely 036046

Bushing, Flange
(Superseded to 01212800)

$6.49

$

Usually ships in 4-12 days

0

37

Gravely 02760600

Support, Steering Column

$

$

Not available

38

Gravely 07413400

Screw, Tapping .312-18 x .50 Hex Washer Head

$

$

Not available

39

Gravely 02769900

Cover, Light

$

$

Not available

40

Gravely 06714500

Pin, Spring Clip

$2.49

$

In Stock, Qty 20+

0

41

Gravely 06441500

Washer, Flat Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

42

Gravely 06226700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

43

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0
