927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 020000 & Above) Engine Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

Engine Parts Diagram

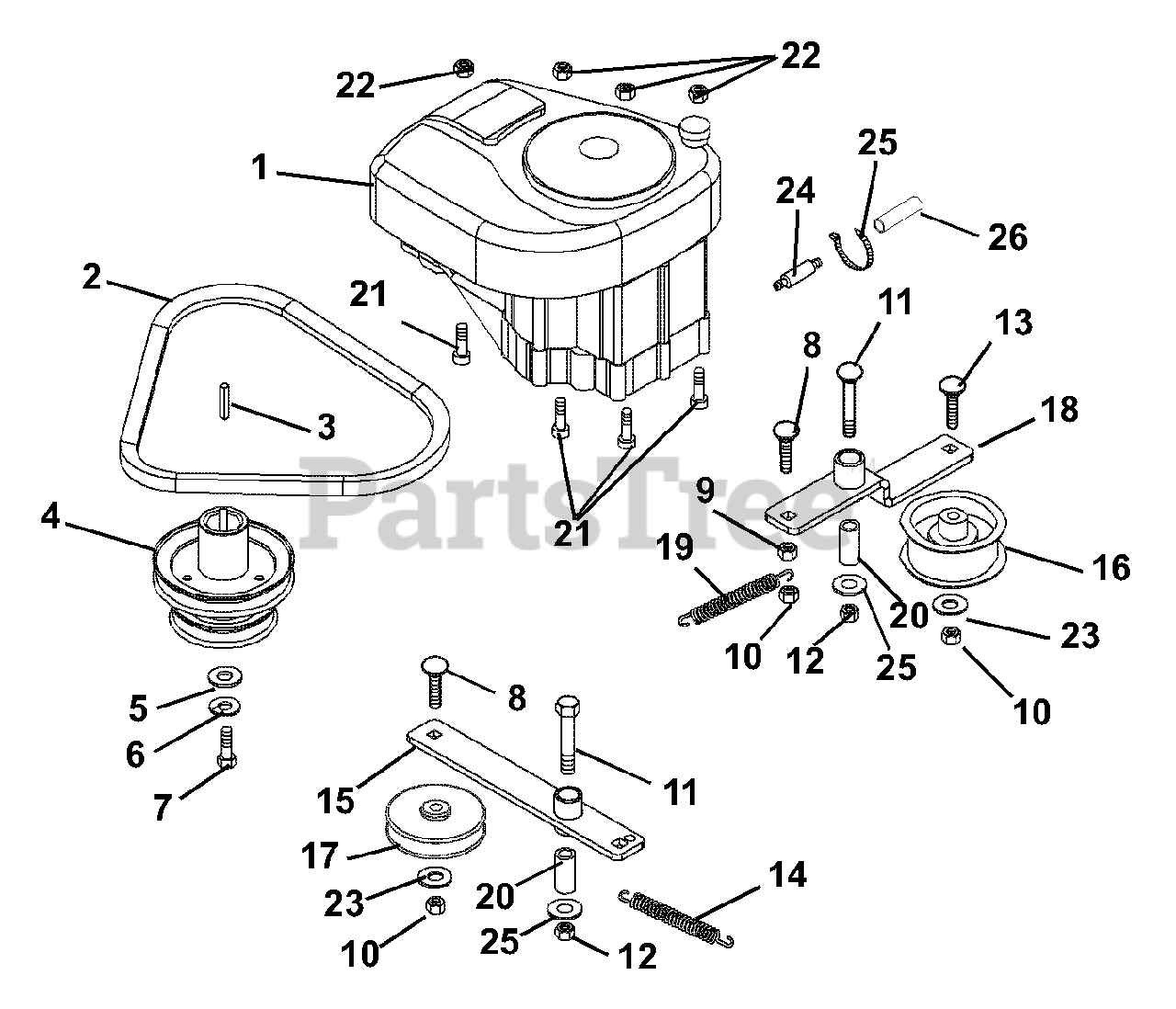

  • Title

1

Gravely 52710400

Group, Engine 12HP Intek (062)

Note: (062)

$

$

Not available

1

Gravely 52710300

Group, Engine 10HP Intek (060)

Note: (060)

$

$

Not available

2

Gravely 036233

V-Belt 4L-Section 30.219 x .547
(Superseded to 07211700)

$31.99

$

In Stock, only 2 left!

0

3

Gravely 06601800

Key, Straight .25 x 1.75 x .25

$3.99

$

In Stock, only 2 left!

0

4

Gravely 02775700

Stack, Sheave (060, 062)

Note: (060, 062)

$145.99

$

Usually ships in 4-12 days

0

5

Gravely 06443600

Washer, Flat Steel
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

6

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

7

Gravely 05967500

Bolt, Hex .44-20 x 1.75 Grade 5

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

9

Gravely 06534900

Nut-Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05961000

Bolt, Hex .50-13 x 2.25 Grade 5
(Superseded to 05901835)

$3.49

$

In Stock, Qty 6

0

12

Gravely 06535100

Nut, Locking Nylock Thin .50-13

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 06224300

Bolt-Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06200314)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 011263

Spring, Tension .095 x .50 x 5.50
(Superseded to 08353300)

$14.99

$

Usually ships in 4-12 days

0

15

Gravely 02775400

Idler, Drive

$

$

Not available

16

Gravely 048870

Sheave 3.25 x 1.25
(Superseded to 07318400)

$22.99

$

In Stock, only 1 left!

0

17

Gravely 07309200

Idler, V 3 x .38

$37.99

$

In Stock, only 2 left!

0

18

Gravely 02776400

Idler, 32" Deck PTO

$61.99

$

Usually ships in 4-12 days

0

19

Gravely 047314

Spring, Extension.093 x .75 x 4.00
(Superseded to 08343000)

$14.99

$

In Stock, only 1 left!

0

20

Gravely 05516400

Bushing-Sleeve .50 x .75 x 1.56

$5.99

$

In Stock, only 4 left!

0

21

Gravely 05972700

Screw, Socket Head Button Head .31-18 x 1.50 Grade 8

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 06544400

Nut-Locking-Top-Flange .31-18
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07067800

Valve, Oil Drain

$38.99

$

Usually ships in 4-12 days

0

25

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

26

Gravely 01590900

Tube, Oil Drain

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0
