927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 010000 - 019999) Deck, Idlers And Blades 28" And 32" Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

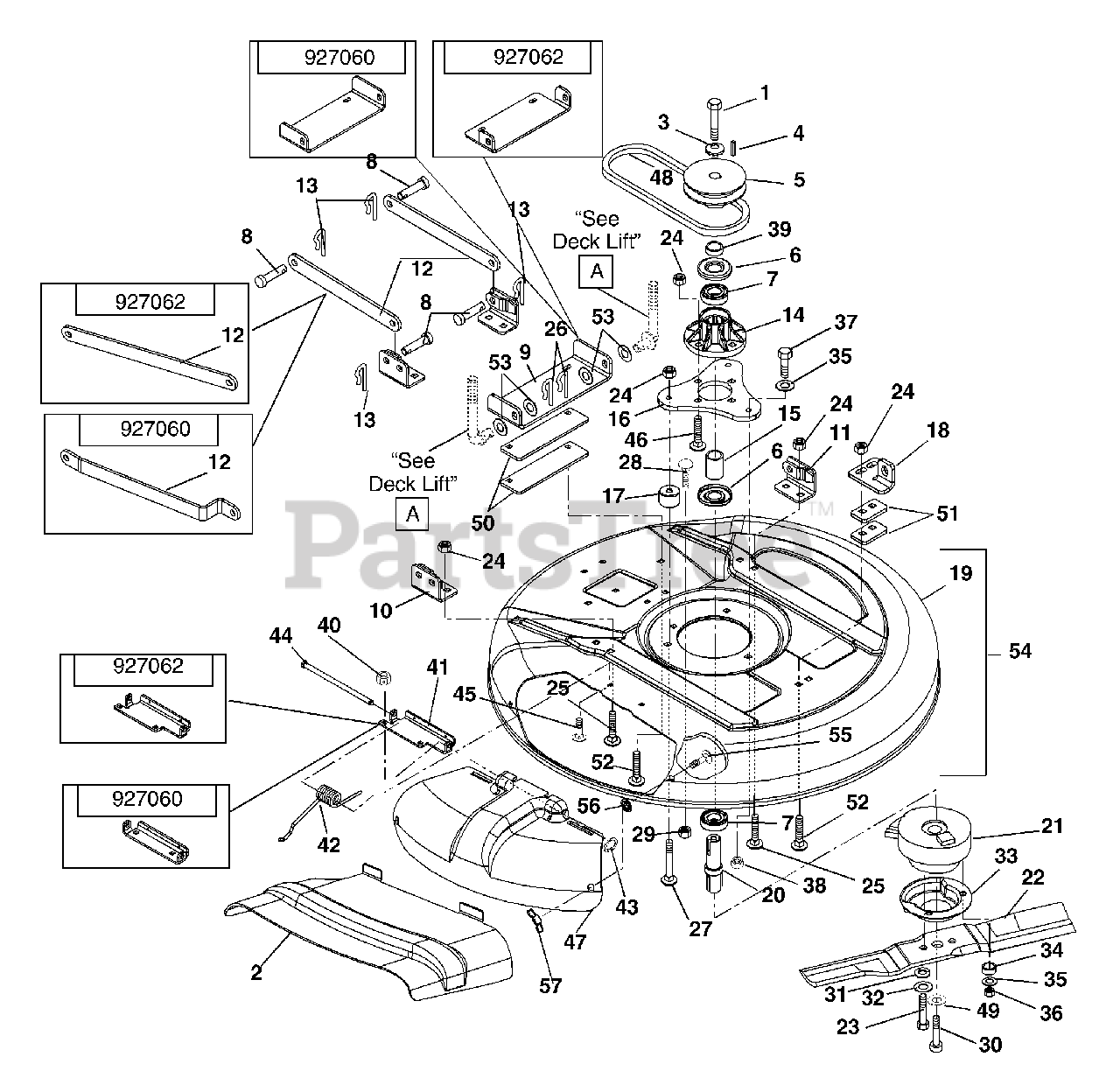

Deck, Idlers And Blades 28" And 32" Parts Diagram

  • Title

1

Gravely 05974500

Bolt, Hex .38-16 x 1.00 Grade 8 with Epoxy Patch
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 01608500

Discharge Chute

$

$

Not available

3

Gravely 00597000

Washer, Cupped Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 06611100

Key, Square .25 x .38 x .25

$1.49

$

In Stock, Qty 20+

0

5

Gravely 01610400

Pulley, 28" Deck Input (060)

Note: (060)

$45.99

$

In Stock, only 1 left!

0

5

Gravely 01610300

Pulley, 32" Deck Input (062)
(Superseded to 07330267)

Note: (062)

$52.99

$

In Stock, only 1 left!

0

6

Gravely 01572700

Bearing, Slinger

$8.99

$

In Stock, only 1 left!

0

7

Gravely 032050

Bearing, Ball 1.00 x 2.00 x .56
(Superseded to 05416000)

$14.99

$

In Stock, only 3 left!

0

8

Gravely 06817400

Pin, Clevis .494 x 1.00

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 02780651

Bracket, Rear Hanger 28" (060)

Note: (060)

$

$

Not available

9

Gravely 02780351

Bracket, Rear Hanger 32" (062)

Note: (062)

$

$

Not available

10

Gravely 02770351

Bracket, Deck Link Right Hand (060)

Note: (060)

$

$

Not available

10

Gravely 02763751

Bracket, Deck Link Right Hand (062)

Note: (062)

$

$

Not available

11

Gravely 02763751

Weldment, Deck Link Right Hand (060)

Note: (060)

$

$

Not available

11

Gravely 02763851

Weldment, Deck Link Left Hand (062)

Note: (062)

$

$

Not available

12

Gravely 02770451

Stabilizer , 28" Deck (Right Hand Only) (060)

Note: (Right Hand Only) (060)

$

$

Not available

12

Gravely 02764351

Link Stabilizer (060)

Note: (060)

$

$

Not available

12

Gravely 02764351

Link Stabilizer (062

$

$

Not available

13

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0

14

Gravely 62727400

Assembly, Spindle Housing

$179.99

$

Usually ships in 4-12 days

0

15

Gravely 01590500

Spacer, 1.00 x 1.25 x 1.60

$6.99

$

Usually ships in 4-12 days

0

16

Gravely 02764251

Spindle, Mount Plate

$85.99

$

Usually ships in 4-12 days

0

17

Gravely 02763100

Spacer, Mounting Plate

$9.49

$

Usually ships in 4-12 days

0

18

Gravely 02780751

Bracket, Front Lift Hanger (060)

Note: (060)

$

$

Not available

18

Gravely 02780351

Bracket, Front Lift Hanger (062)

Note: (062)

$

$

Not available

19

Gravely 02770651

Deck, 28"(060)

Note: (060)

$

$

Not available

19

Gravely 02770551

Deck, 32" (062)

Note: (062)

$

$

Not available

20

Gravely 02774300

Shaft, 32" Input

$155.99

$

Usually ships in 4-12 days

0

21

Gravely 52711900

Clutch, 28" & 32" Decks

Note: 52711900 contains belt p/n 07241400.

$905.99

$

Usually ships in 4-12 days

0

22

Gravely 01600600

Blade, 28" Mower (060)

Note: (060)

$27.99

$

In Stock, only 2 left!

0

22

Gravely 02774500

Blade, 32" Mower (062)

Note: (062)

$43.99

$

In Stock, only 3 left!

0

23

Gravely 05979600

Bolt, Hex M10 x 1.25 x 30

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06227000

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

26

Gravely 06714900

Pin, Hair External- #11

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06226800

Bolt, Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06213400)

$3.99

$

In Stock, only 2 left!

0

28

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

29

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 05979800

Bolt, Button Head .50 x 1.25-20

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 06304600

Washer, Locking Metric 10 MM

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

33

Gravely 02774600

Shield, Debris

$71.99

$

Usually ships in 4-12 days

0

34

Gravely 00520100

Bushing, Bronze .75 I.D. x .88 O.D. x .50 Long

$

$

Not available

35

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06535800

Nut, Locking Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

37

Gravely 05958300

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

38

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 022501

Spacer Steel 1.01 x 1.38 x .509
(Superseded to 08524600)

$

$

Not available

40

Gravely 06527600

Nut, Locking Center .25-20

$0.99

$

In Stock, Qty 20+

0

41

Gravely 01612000

Bracket, 28" Mulch Cover Hinge
(Superseded to 01612051)

$

$

Not available

41

Gravely 01608200

Bracket, 32" Mulch Cover Hinge

$

$

Not available

42

Gravely 08310001

Spring, Torsion

$

$

Not available

42

Gravely 08310002

Spring, Torsion

$9.49

$

Usually ships in 4-12 days

0

43

Gravely 05706300

Ring, Retaining External .312 x .025

$0.99

$

Usually ships in 4-12 days

0

44

Gravely 01608300

Rod, Hinge

$34.99

$

Usually ships in 4-12 days

0

45

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

46

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

47

Gravely 01611900

Cover, 28" Deck Mulch

$86.99

$

Usually ships in 4-12 days

0

47

Gravely 01608400

Cover, 32" Deck Mulch

$

$

Not available

48

Gravely 07243300

V-Belt HA, 57.25 (060)
(Superseded to 07200610)

Note: Use belt p/n 07241400 if clutch kit p/n 52711900 is installed.

$46.99

$

In Stock, Qty 13

0

48

Gravely 07243200

V-Belt HA, 63.00 (062)
(Superseded to 07242200)

Note: (062)

$48.99

$

In Stock, only 4 left!

0

49

Gravely 06447700

Washer, Flat Steel .50 x 1.75 x .187

$3.99

$

Usually ships in 4-12 days

0

50

Gravely 02780851

Plate, 32" Deck Spacer

$

$

Not available

51

Gravely 02780951

Plate, 32 Deck Front Hanger

$

$

Not available

52

Gravely 06227700

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06224100)

$2.49

$

In Stock, only 3 left!

0

53

Gravely 06441800

Washer, Flat Steel .518 x 2.00 x .105
(Superseded to 06401127)

$3.99

$

Usually ships in 4-12 days

0

54

Gravely 52711600

Kit, 28" Deck Assembly Service (060)

Note: (060)

$

$

Not available

54

Gravely 52711500

Kit, 32" Deck Assembly Service (062)

Note: (062)

$

$

Not available

55

Gravely 06214100

Bolt, Round Head Square Neck .31-18 x .75 Grade 2
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

56

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

57

Gravely 06537100

Nut, Nylock Wing .312-18

$5.99

$

In Stock, only 1 left!

0
