927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Gas Tanks Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

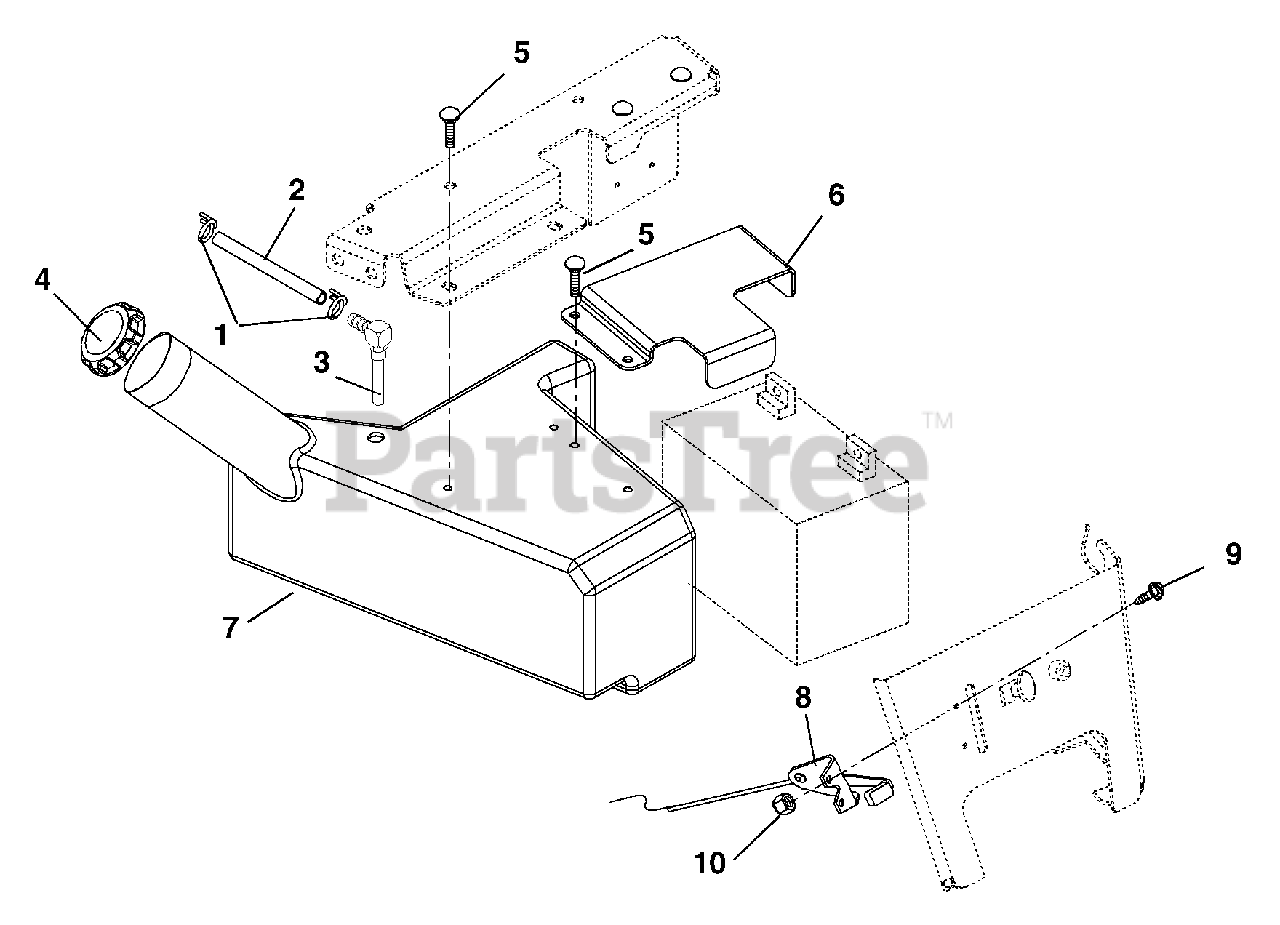

Gas Tanks Parts Diagram

  • Title
1

Gravely 06939100

Clamp, Hose Wire .490/.510 x .116

$3.99

$

In Stock, Qty 10

0

2

Gravely 021134

Gas Line, Bulk 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03606500

Fitting, Tank

$

$

Not available

4

Gravely 01538400

Fuel Cap

$15.99

$

Usually ships in 4-12 days

0

5

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 02771351

Bracket, Battery

$28.99

$

Usually ships in 4-12 days

0

7

Gravely 02765100

Tank, Fuel

$

$

Not available

8

Gravely 06942200

Cable, Throttle 19.5

$60.99

$

Usually ships in 4-12 days

0

9

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06536000

Nut, Locking Nylon 10-24 with Insertg
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
