927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Brake System Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

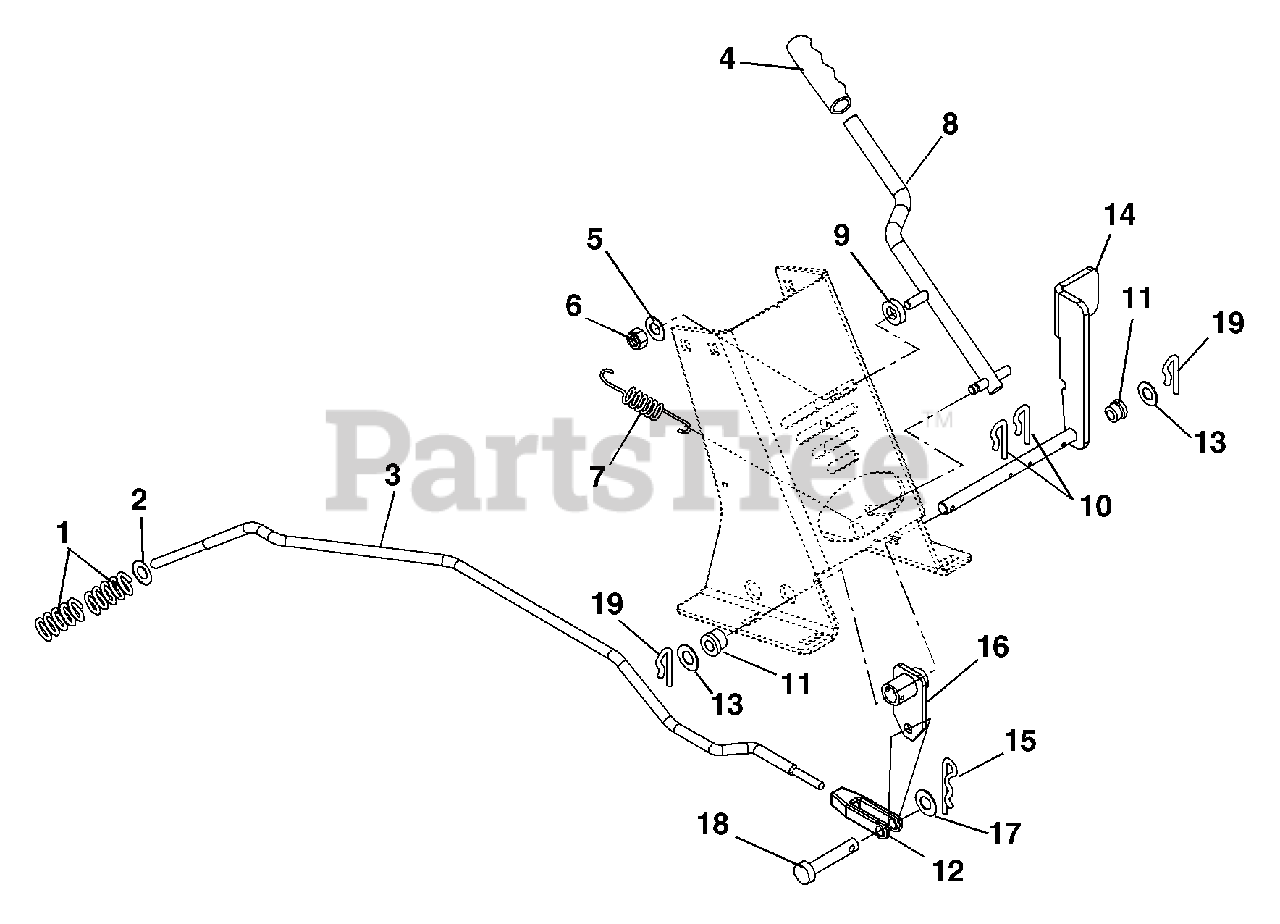

Brake System Parts Diagram

  • Title

1

Gravely 08313100

Spring, Compression .063 x .53 x 1.19
(Superseded to 08300028)

$4.99

$

In Stock, Qty 6

0

2

Gravely 06444300

Washer, Flat Steel .39 x .75 x .125

$7.99

$

In Stock, Qty 8

0

3

Gravely 02764600

Rod, Brake Rear Engine Rider Hydro

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 07527500

Grip

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 08330300

Spring, Tension .048 x .44 x 2.12

$

$

Not available

8

Gravely 02762000

Weldment, Parking Brake

$

$

Not available

9

Gravely 05515800

Bushing, Flange .406 x .88 x .27 x .140 Grade 2

$9.49

$

In Stock, only 4 left!

0

10

Gravely 06714500

Pin, Spring Clip

$2.49

$

In Stock, Qty 20+

0

11

Gravely 05521100

Bushing, Flange .515 x .75 x .745 x 1.00 Nylon

$2.49

$

In Stock, only 3 left!

0

12

Gravely 07014700

Yoke, .312-24 x 2.25

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 06439200

Washer, Flat Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 02761800

Weldment, Brake Pedal

$

$

Not available

15

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 02762100

Brake Rod Arm and Hub

$

$

Not available

17

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

18

Gravely 06811800

Pin, Clevis .312 x .822
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0
