927061 (1028 RER) - Ariens 28" Rear-Engine Rider, 10hp Briggs & Stratton, Hydro (SN: 020000 & Above) 28" And 32" Deck, Idlers And Blades Parts Diagram

28" Rear-Engine Rider, 10hp Briggs & Stratton, Hydro

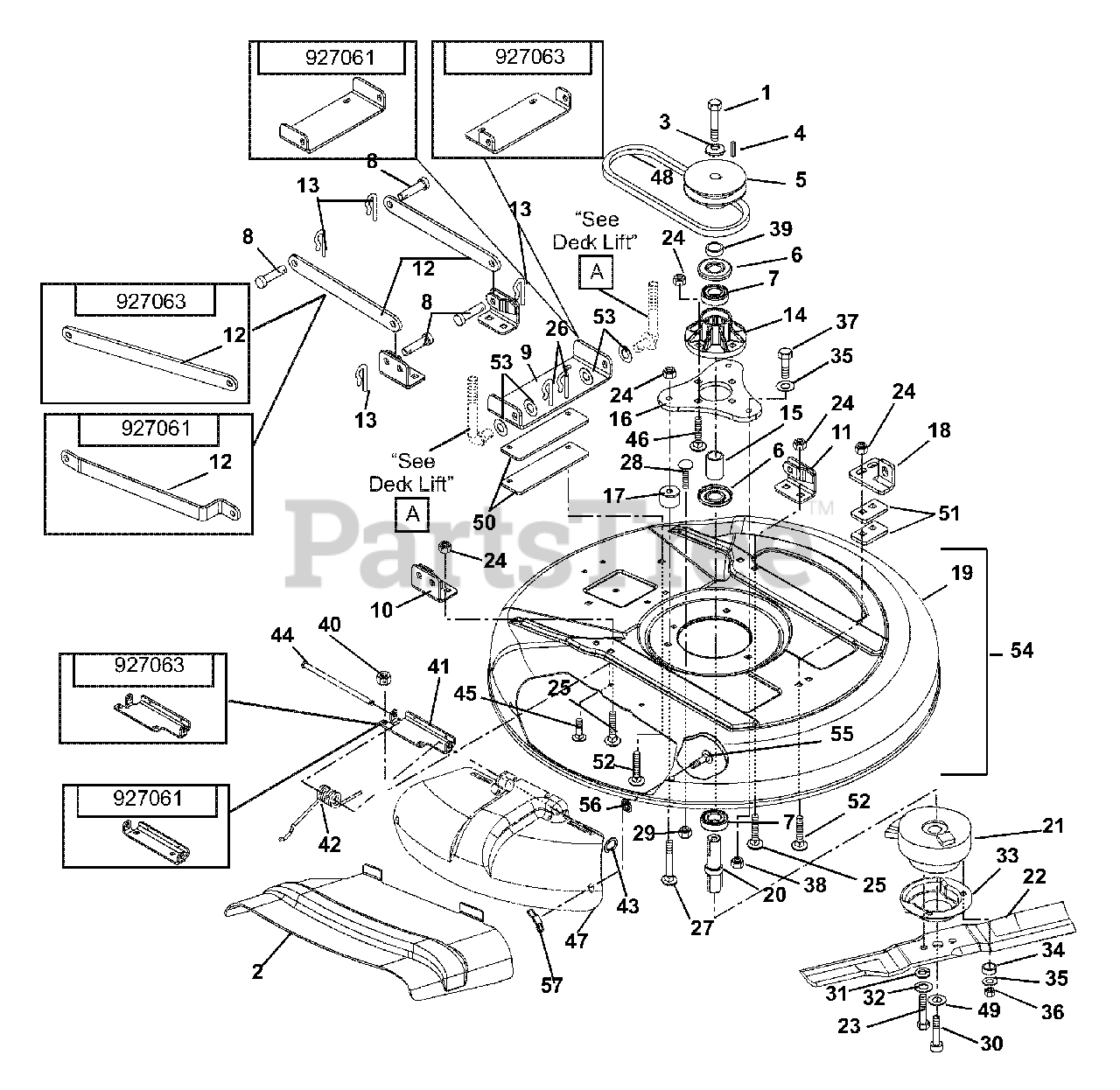

28" And 32" Deck, Idlers And Blades Parts Diagram

  • Title

1

Ariens 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

2

Ariens 01608500

DISCHARGE CHUTE

$

$

Not available

3

Ariens 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

4

Ariens 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

5

Ariens 01610400

SHEAVE, 4.25 DIA A-SECTION

Note: (061)

$45.99

$

In Stock, only 1 left!

0

6

Ariens 01610300

SHEAVE, 4.75 DIA A-SECTION
(Superseded to 07330267)

Note: (063)

$52.99

$

In Stock, only 1 left!

0

6

Ariens 01572700

BEARING SLINGER

$8.99

$

In Stock, only 1 left!

0

7

Ariens 05416000

BRG-BALL 1.0X2.0X.56 (1641)

$14.99

$

In Stock, only 3 left!

0

8

Ariens 06817400

PIN-CLEV .494X1.00 BLKZC

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 02780651

BRKT, REAR HANGER (28" DECK)

Note: (061)

$

$

Not available

9

Ariens 02780351

BRKT, FRONT LIFT (32" DECK)

Note: (063)

$

$

Not available

10

Ariens 02770351

BRKT, 28" DECK STABILIZER

Note: (061)

$

$

Not available

10

Ariens 02763751

WLDMT-DECK LINK (RH)

Note: (063)

$

$

Not available

11

Ariens 02763751

WLDMT-DECK LINK (RH)

Note: (061)

$

$

Not available

11

Ariens 02763851

WLDMT-DECK LINK (LH)

Note: (063)

$

$

Not available

12

Ariens 02770451

STABILIZER, 28" DECK (RH)

Note: (Right Hand Only) (061)

$

$

Not available

12

Ariens 02764351

LINK STABILIZER 32"

Note: (061)

$

$

Not available

12

Ariens 02764351

LINK STABILIZER 32"

Note: (063)

$

$

Not available

13

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

14

Ariens 62727400

ASSY-SPINDLE HSG

$179.99

$

Usually ships in 4-12 days

0

15

Ariens 01590500

SPACER, 1.001 X 1.25 X 1.76

$6.99

$

Usually ships in 4-12 days

0

16

Ariens 02764251

SPINDLE MOUNT PLATE

$85.99

$

Usually ships in 4-12 days

0

17

Ariens 02763100

SPACER-MOUNTING PLATE

$9.49

$

Usually ships in 4-12 days

0

18

Ariens 02780751

BRKT, FRONT HANGER (28" DECK)

Note: (061)

$

$

Not available

18

Ariens 02780351

BRKT, FRONT LIFT (32" DECK)

Note: (063)

$

$

Not available

19

Ariens 02770651

DECK, 28" RER

Note: (061)

$

$

Not available

19

Ariens 02770551

DECK, RER/SZ 32"

Note: (063)

$

$

Not available

20

Ariens 02774300

SHAFT, 28" AND 32" INPUT

$155.99

$

Usually ships in 4-12 days

0

21

Ariens 52711900

KIT, CLUTCH (1232 RER)

Note: 52711900 includes belt p/n 07241400.

$905.99

$

Usually ships in 4-12 days

0

21

Ariens 52711800

KIT, CLUTCH (1028 RER)

Note: 52711800 includes belt p/n 07221000.

$

$

Not available

22

Ariens 01600600

BLADE-CUTTING 28"

Note: (061)

$27.99

$

In Stock, only 2 left!

0

22

Ariens 02774500

BLADE, 32" RER/ZS

Note: (063)

$43.99

$

In Stock, only 3 left!

0

23

Ariens 05979600

BLT-HEX M10X1.25X30 CLS 10.9

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

26

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06226800

BLT-RDHDSQNK .38-16X2.25 G5BZ
(Superseded to 06213400)

$3.99

$

In Stock, only 2 left!

0

28

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

29

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 05979800

SCR-SKN .5-20X1.25 BTNHD

$3.99

$

Usually ships in 4-12 days

0

31

Ariens 06304600

WSHR-LK M 10MM YZ

$2.49

$

Usually ships in 4-12 days

0

32

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

33

Ariens 02774600

SHIELD, DEBRIS

$71.99

$

Usually ships in 4-12 days

0

34

Ariens 00520100

BSHG, SPCR .752X.877X.50 BRZ

$

$

Not available

35

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

37

Ariens 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

38

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 08524600

SPACER 1.008X1.377X.509 ST

$

$

Not available

40

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$0.99

$

In Stock, Qty 20+

0

41

Ariens 01612000

BRKT, 28" MULCH COVER HINGE
(Superseded to 01612051)

$

$

Not available

41

Ariens 01608200

BKT, HINGE

$

$

Not available

42

Ariens 08310001

SPRING, TORSION

$

$

Not available

42

Ariens 08310002

SPRING, TORSION

$9.49

$

Usually ships in 4-12 days

0

43

Ariens 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

44

Ariens 01608300

PIN, HINGE

$34.99

$

Usually ships in 4-12 days

0

45

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

46

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

47

Ariens 01611900

COVER, 28" DECK MULCH

$86.99

$

Usually ships in 4-12 days

0

47

Ariens 01608400

MULCH COVER, 32" DECK

$

$

Not available

48

Ariens 07243300

V-BELT, HA-WRAPPED
(Superseded to 07200610)

Note: (061) Use belt p/n 07221000 if clutch kit p/n 52711800 is installed.

$46.99

$

In Stock, Qty 13

0

48

Ariens 07242200

V-BELT, HA-WRAPPED

Note: (063) Use belt p/n 07241400 if clutch kit p/n 52711900 is installed.

$48.99

$

In Stock, only 4 left!

0

49

Ariens 06447700

WASHER, FLT STL .5X1.75X.187

$3.99

$

Usually ships in 4-12 days

0

50

Ariens 02780851

PLATE, 32" REAR HANGER SPACER

$

$

Not available

51

Ariens 02780951

PLATE, 32" FRONT HANGER SPCR

$

$

Not available

52

Ariens 06227700

@BLT-RDHDSQNK .38-16X1.25 BKZC
(Superseded to 06224100)

$2.49

$

In Stock, only 3 left!

0

53

Ariens 06441800

WSHR-FL-STL .518X2.0X.105 YWZC
(Superseded to 06401127)

$3.99

$

Usually ships in 4-12 days

0

54

Ariens 52711600

KIT, 28" DECK SERVICE ASSY

Note: (061)

$

$

Not available

54

Ariens 52711500

KIT, 32" DECK SERVICE ASSY

Note: (063)

$

$

Not available

55

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

56

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

57

Ariens 06537100

NUT-NYLK WING .312-18 YWZC

$5.99

$

In Stock, only 1 left!

0
