927052 (RM 1330 E) - Ariens 30" Rear-Engine Rider, 13hp Briggs & Stratton (SN: 000101 & Above) Steering Parts Diagram

30" Rear-Engine Rider, 13hp Briggs & Stratton

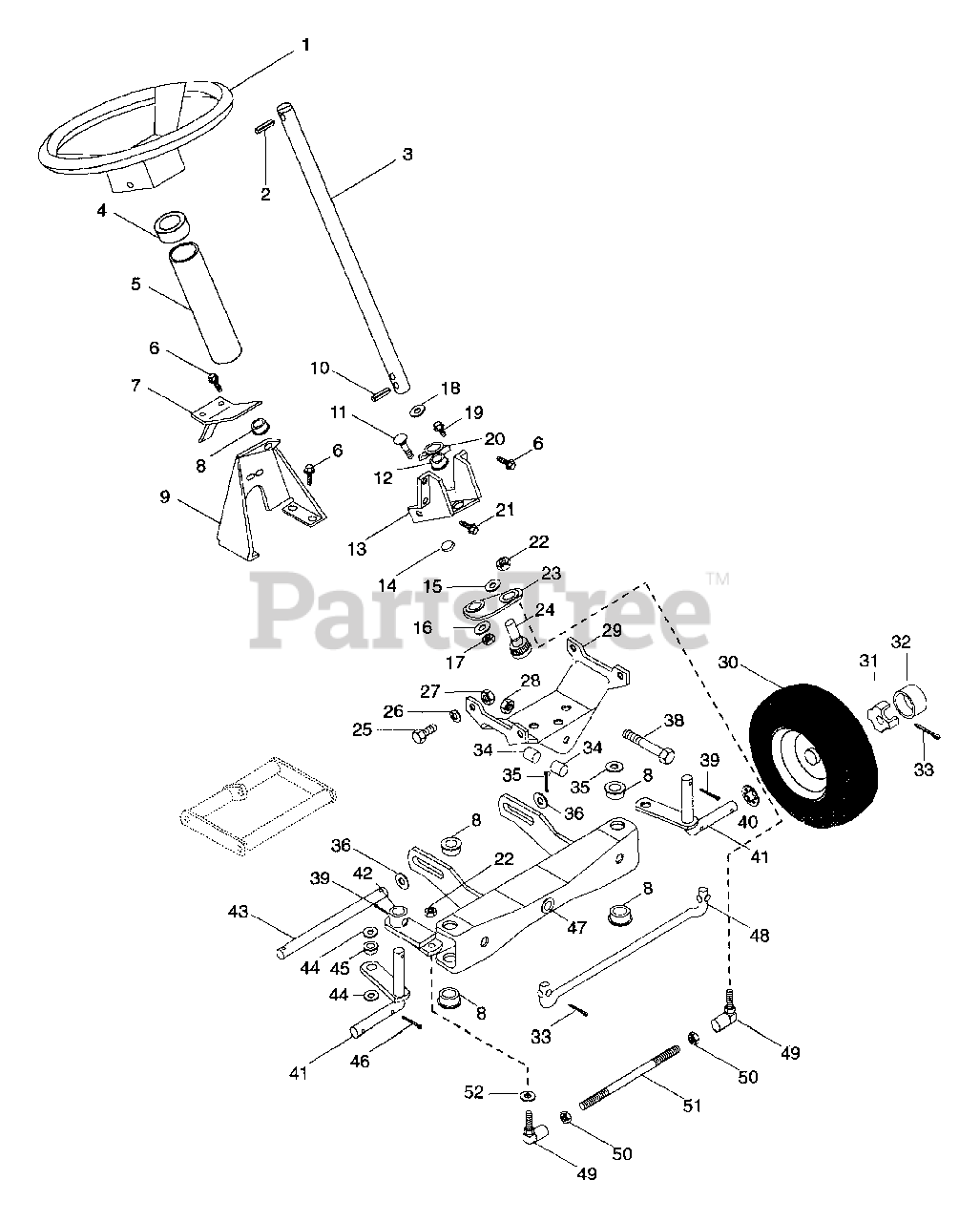

Steering Parts Diagram

  • Title

1

Ariens 02753700

STEERING WHEEL 13"

$

$

Not available

2

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

3

Ariens 02749100

STEERING SHAFT

$131.99

$

Usually ships in 4-12 days

0

4

Ariens 07503700

PLUG

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 02753800

TUBE 1.865 X 2.00 X 11.33

$

$

Not available

6

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 02707600

BRACE

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

9

Ariens 02707400

STEERING SUPPORT

$

$

Not available

10

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

11

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05505300

BSHG-FLG .625X1.156X.375 SI

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 02705300

STEERING BRACKET

$

$

Not available

14

Ariens 02506200

SPACER .380X.750X.236

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 06417400

WSHR-FL-STL .630X1.250X.062 PL
(Superseded to 06445100)

$2.49

$

In Stock, only 3 left!

0

16

Ariens 06407500

WSHR-FL-STL .390X1.500X.125
(Superseded to 06441700)

$3.99

$

In Stock, only 1 left!

0

17

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06418100

WSHR-HDND-STL-THR.515X.97X.062

$3.99

$

In Stock, only 4 left!

0

19

Ariens 07402100

SCR-TAP 10-24X.25 CRSLPH PL 1A
(Superseded to 07415500)

$

$

Not available

20

Ariens 01310000

RETAINING PLATE

$51.99

$

Usually ships in 4-12 days

0

21

Ariens 07409900

SCR-TAP .312-18X.50 PL F

$

$

Not available

22

Ariens 06512300

NUT-LK .375-24 PL

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 02506100

STEERING GEAR

$77.99

$

Usually ships in 4-12 days

0

24

Ariens 02705400

PINION
(Superseded to 03841600)

$

$

Not available

25

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

26

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

29

Ariens 02706600

AXLE BRACKET

$

$

Not available

30

Ariens 07126400

T/WHL ASSY

$68.99

$

In Stock, only 2 left!

0

30

Ariens 07108000

TIRE 4.10/3.50-4

$28.99

$

In Stock, Qty 9

0

30

Ariens 01215200

ZERK FITTING

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 05505800

BSHG-FLG .750X1.380X.750X1.557

$7.49

$

In Stock, Qty 7

0

30

Ariens 07123100

WHL-COMP
(Superseded to 07126400)

$68.99

$

In Stock, only 2 left!

0

31

Ariens 01238200

SPINDLE CUP

$

$

Not available

32

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

33

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

34

Ariens 05516400

BSHG-SLV .500X.750X1.560

$5.99

$

In Stock, only 3 left!

0

35

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

36

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

38

Ariens 05905100

BLT-HEX .50-13X4.00 PL GR2
(Superseded to 05961900)

$3.99

$

Usually ships in 4-12 days

0

39

Ariens 05804000

PIN-GRV .250X1.25 TP A

$

$

Not available

40

Ariens 02512000

SPINDLE WASHER

$38.99

$

In Stock, only 3 left!

0

41

Ariens 02735300

R.H. WHEEL SPINDLE

$103.99

$

Usually ships in 4-12 days

0

41

Ariens 02735400

L.H. WHEEL SPINDLE

$104.99

$

Usually ships in 4-12 days

0

42

Ariens 02706300

ARM

$72.99

$

Usually ships in 4-12 days

0

43

Ariens 02508600

HANGER PIN

$64.99

$

Usually ships in 4-12 days

0

44

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

45

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 20+

0

46

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 02729200

AXLE

$54.99

$

Usually ships in 4-12 days

0

48

Ariens 02706400

TIE ROD

$

$

Not available

49

Ariens 02917100

BALL JOINT

$23.99

$

In Stock, Qty 6

0

50

Ariens 06500500

NUT .375-24 PL

$3.99

$

In Stock, only 1 left!

0

51

Ariens 02705800

STEERING LINK

$

$

Not available

52

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0
