927048 (RM 9028 E) - Ariens 28" Rear-Engine Rider, 9hp Briggs & Stratton (SN: 002701 & Above) Rear Axle Parts Diagram

28" Rear-Engine Rider, 9hp Briggs & Stratton

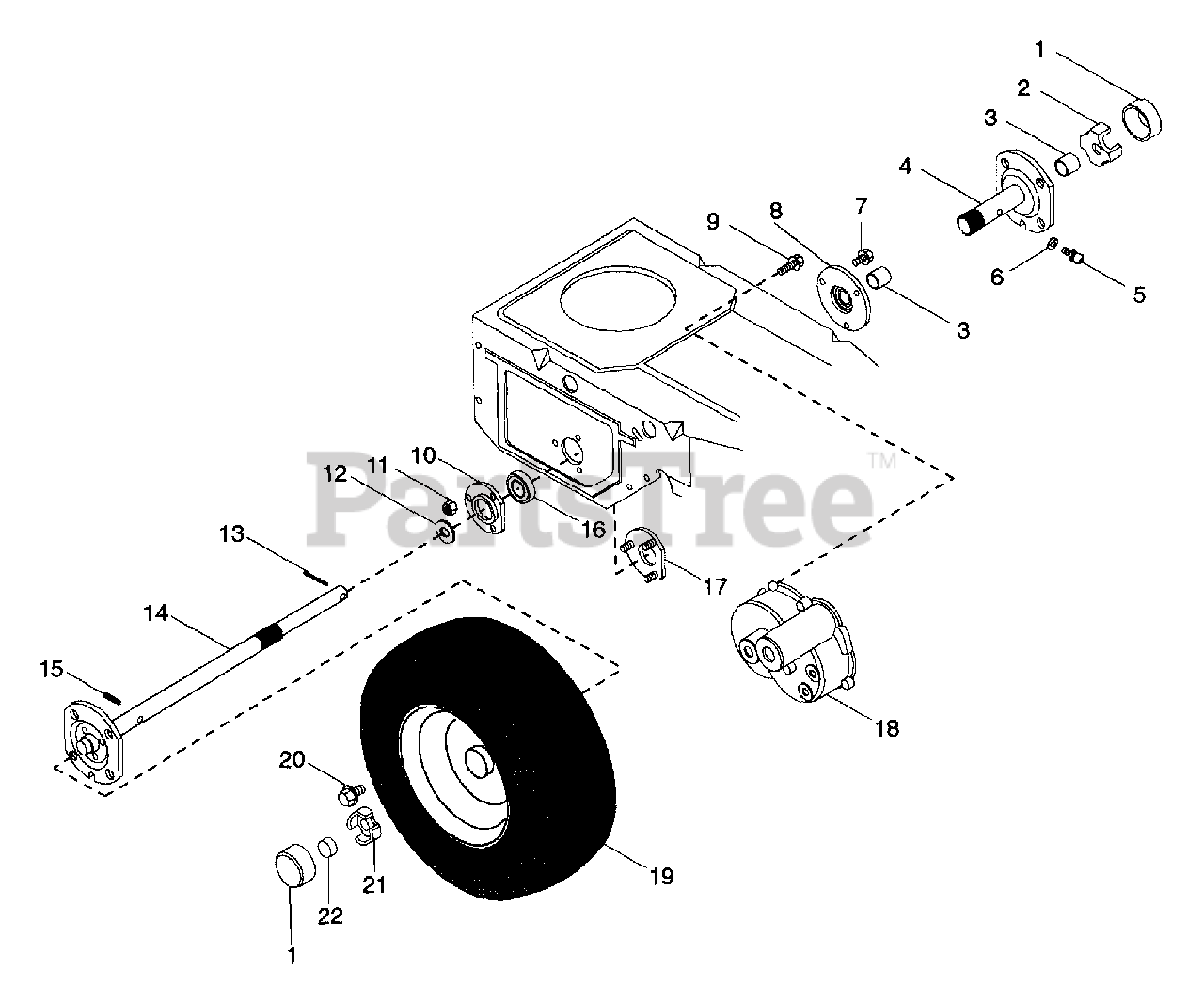

Rear Axle Parts Diagram

  • Title
1

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

2

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

3

Ariens 05511900

BSHG-SLV .690X.814X1.000 BR

$

$

Not available

4

Ariens 52704600

L.H. AXLE ASSEMBLY
(Superseded to 52709200)

$219.99

$

In Stock, only 1 left!

0

5

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

6

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 07401900

SCR-TAP.250-20X.62 HWH BLK ZC
(Superseded to 07410400)

$2.49

$

In Stock, Qty 13

0

8

Ariens 05607100

SEAL 1.125X2.496X.380

$35.99

$

Usually ships in 4-12 days

0

9

Ariens 07402900

SCR-TAP .312-18X1.50 HWH PL TR
(Superseded to 07415300)

$

$

Not available

10

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

11

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06403600

WSHR-FL-STL .880X1.380X.062

$6.99

$

Usually ships in 4-12 days

0

13

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

14

Ariens 02718100

RH AXLE
(Superseded to 02757800)

$232.99

$

Usually ships in 4-12 days

0

15

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

16

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$34.99

$

Usually ships in 4-12 days

0

17

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, Qty 17

0

18

Ariens 52700700

GEAR CASE ASSEMBLY
(Superseded to 52708600)

$

$

Not available

for detail)

Note: for detail)

$

$

Not available

19

Ariens 07115200

T/WHL ASSY 6.50-8 X 16

$

$

Not available

Ariens 07102100

TIRE 16X6.50-8 2 PLY

$79.99

$

Usually ships in 4-12 days

0

Ariens 07121000

T/WHL ASSY 16X6.5-8
(Superseded to 07115200)

$

$

Not available

$

$

Not available

$82.99

$

Usually ships in 4-12 days

0

20

Ariens 07406300

SCR-TAP .500-20X.62 HH PL
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0

21

Ariens 01238200

SPINDLE CUP

$

$

Not available

22

Ariens 01036600

PUSHNUT

$5.99

$

Usually ships in 4-12 days

0
