927048 (RM 9028 E) - Ariens 28" Rear-Engine Rider, 9hp Briggs & Stratton (SN: 002701 & Above) Brake And Clutch Parts Diagram

28" Rear-Engine Rider, 9hp Briggs & Stratton

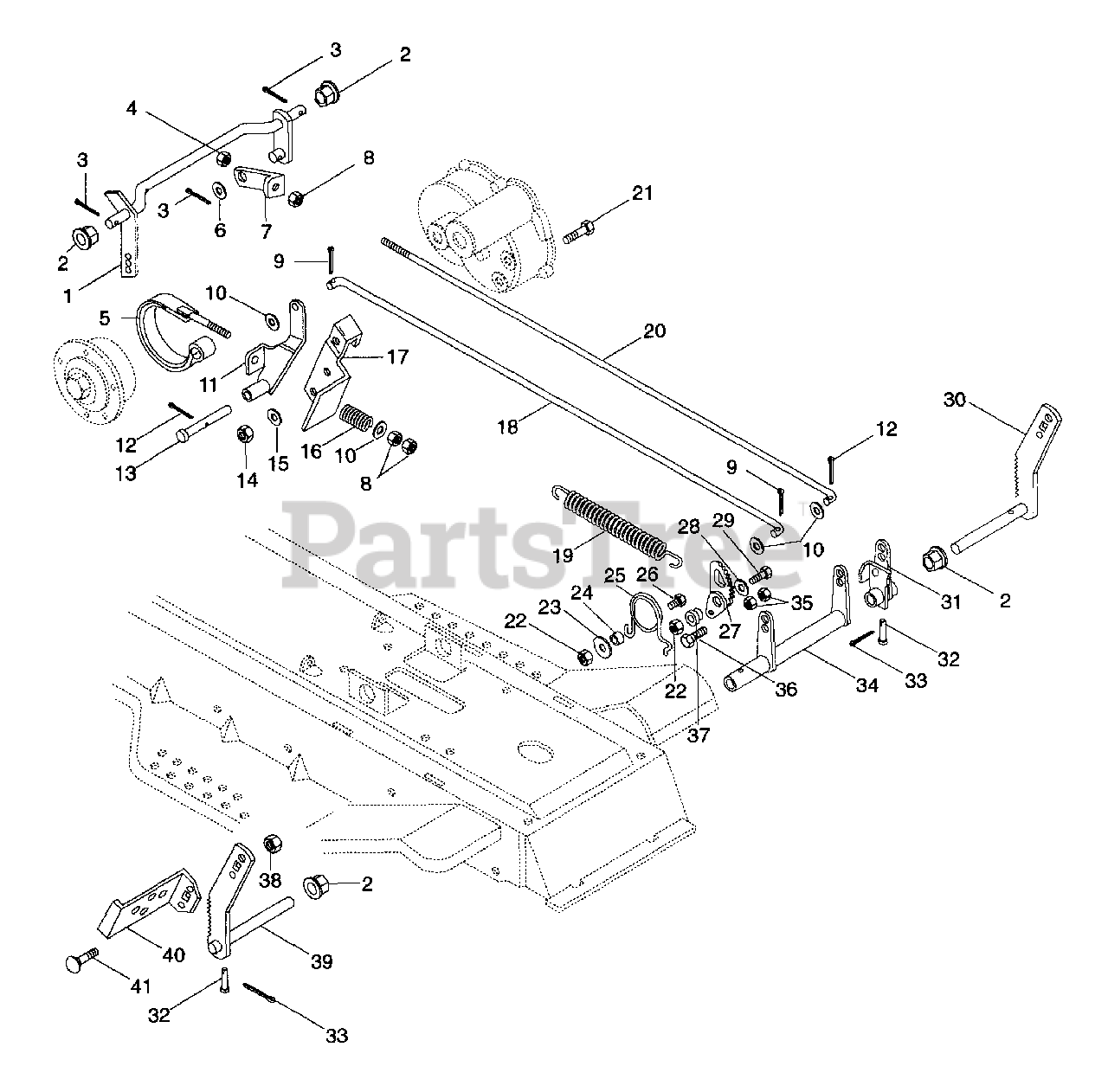

Brake And Clutch Parts Diagram

  • Title

1

Ariens 02701300

CLUTCH SHAFT

$

$

Not available

2

Ariens 02505500

FLANGE BUSHING

$

$

Not available

3

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

4

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 02503300

BRAKE BAND

$

$

Not available

6

Ariens 06410400

WSHR-FL-STL .520X.810X.033
(Superseded to 06439600)

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 02703500

CLUTCH BRACKET

$

$

Not available

8

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

9

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

10

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

11

Ariens 02702700

BRAKE LEVER

$

$

Not available

12

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

13

Ariens 02702800

PIN-CLEV .371X3.25

$5.49

$

In Stock, only 1 left!

0

14

Ariens 06513800

NUT-HEAVY .312-18 PL

$

$

Not available

15

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

16

Ariens 08309000

SG-COMP .105X.585X.75

$39.99

$

Usually ships in 4-12 days

0

17

Ariens 02702200

BRAKE BRACKET

$

$

Not available

18

Ariens 02703700

BRAKE ROD

$

$

Not available

19

Ariens 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$5.99

$

In Stock, only 1 left!

0

20

Ariens 02703600

ROD, CLUTCH

$66.99

$

Usually ships in 4-12 days

0

21

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

22

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$2.49

$

In Stock, only 2 left!

0

24

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

25

Ariens 08317900

SG-TORS .125X1.0X1.75

$

$

Not available

26

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

27

Ariens 02519400

BRAKE LATCH

$14.99

$

Usually ships in 4-12 days

0

28

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 02703200

CLUTCH PEDAL ARM

$22.99

$

Usually ships in 4-12 days

0

31

Ariens 02713800

CLUTCH ARM

$14.99

$

Usually ships in 4-12 days

0

32

Ariens 02740000

PIN-CLEV .185X1.00 SP

$

$

Not available

33

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

34

Ariens 02703300

BRAKE ARM

$

$

Not available

35

Ariens 06504700

NUT 8-32 PL
(Superseded to 06529900)

$

$

Not available

36

Ariens 06106200

SCR-MCH 8-32X1.00 SLTR PL
(Superseded to 06117800)

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 02519500

SPACER -SHLD .344X.500X.469

$

$

Not available

38

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 02703400

BRAKE PEDAL ARM

$

$

Not available

40

Ariens 02706900

PEDAL

$

$

Not available

41

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0
