927046 (RM 1028 E) - Ariens 28" Rear-Engine Rider, 10hp Briggs & Stratton (SN: 000101 & Above) Speed Selector Parts Diagram

28" Rear-Engine Rider, 10hp Briggs & Stratton

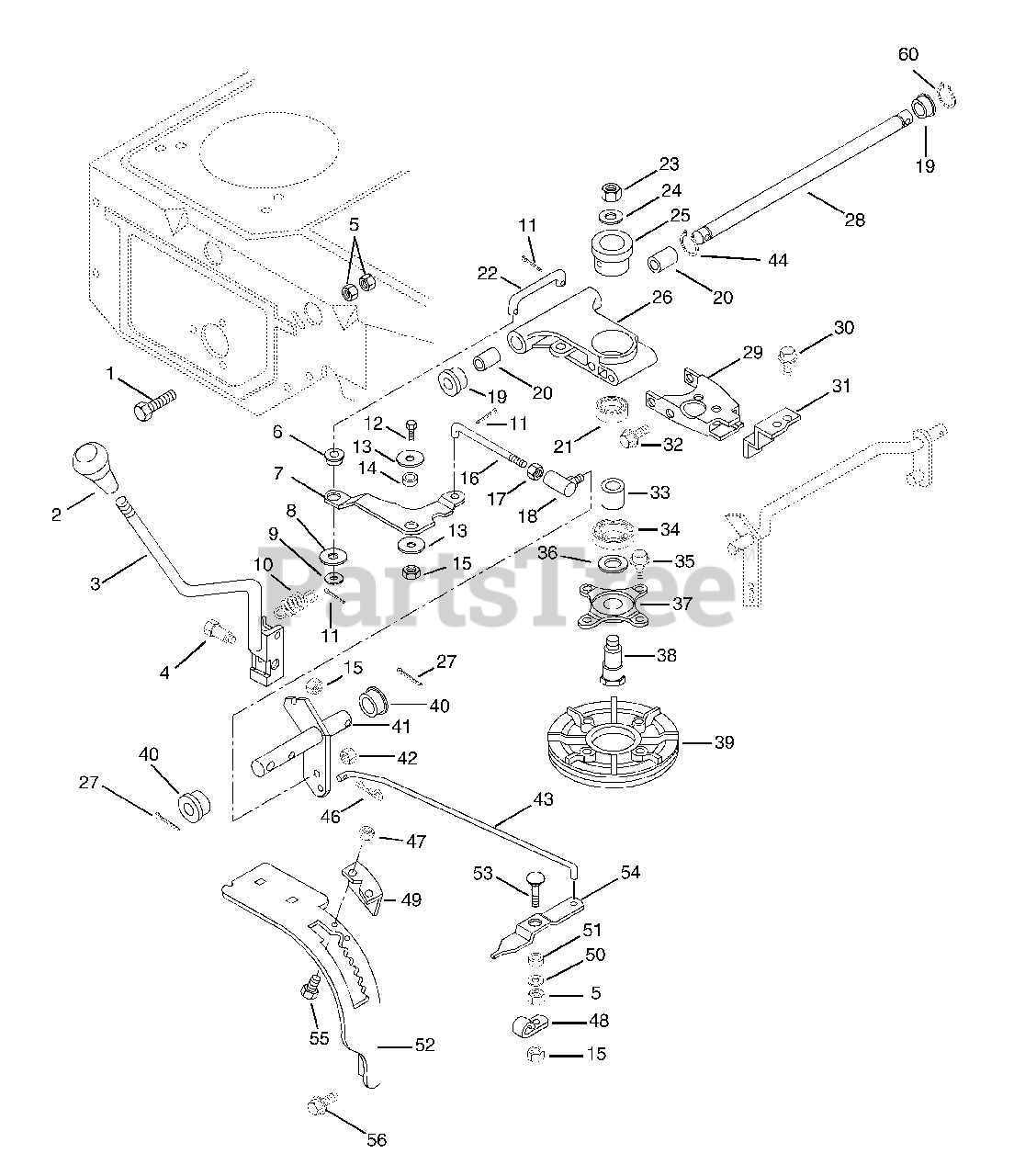

Speed Selector Parts Diagram

  • Title

1

Ariens 05921500

BLT-HEX .31-18X1.50 GR2 YWZC

$2.49

$

Usually ships in 4-12 days

0

2

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0

3

Ariens 02756700

SHIFT LEVER

$

$

Not available

4

Ariens 02712900

SHOULDER BOLT .436 X .912

$9.49

$

In Stock, only 1 left!

0

5

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

6

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$1.49

$

In Stock, Qty 20+

0

7

Ariens 02700700

BELL CRANK

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06407800

WSHR-FL-STL .380X.626X.033

$

$

Not available

10

Ariens 08309900

SG-TENS .092X.69X1.75 WLD 54

$

$

Not available

11

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 8

0

12

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06439700

WSHR-FL-STL .344X1.375X.075YWZ
(Superseded to 06446900)

$2.49

$

In Stock, only 2 left!

0

14

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 02700800

SHIFT ROD

$

$

Not available

17

Ariens 06537400

NUT-JAM .375-24 LH YWZC
(Superseded to 06500924)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 03645500

BALL JOINT- SNAP IN

$

$

Not available

19

Ariens 01212900

FLANGE BUSHING

$

$

Not available

20

Ariens 05504700

BSHG-SLV .625X.750X.500 BR

$11.99

$

In Stock, only 1 left!

0

21

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

22

Ariens 02701700

SHIFT LINK

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 06530000

NUT-LK-CTR .50-20 YWZC

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 06418100

WSHR-HDND-STL-THR.515X.97X.062

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 02716100

BEARING HOUSING

$

$

Not available

26

Ariens 52709000

CARRIER ASSEMBLY

$

$

Not available

27

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

28

Ariens 02701900

TRANSFER SHAFT

$

$

Not available

29

Ariens 02750900

CARRIER YOKE

$

$

Not available

30

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 02735200

NEUTRAL STOP

$

$

Not available

32

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

33

Ariens 05512800

BSHG-SLV .634X1.000X.465

$

$

Not available

34

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

35

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

37

Ariens 02716000

DISC ADAPTER

$

$

Not available

38

Ariens 02715900

SPINDLE BOLT

$22.99

$

Usually ships in 4-12 days

0

39

Ariens 02528400

DISC

$

$

Not available

39

Ariens 52709100

DRIVE CARRIER ASSEMBLY

$

$

Not available

40

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

41

Ariens 02703800

SHIFT ARM

$72.99

$

In Stock, only 1 left!

0

42

Ariens 06537000

NUT-CTRLK .31-24 YWZC

$

$

Not available

43

Ariens 02703900

INDICATOR ROD

$

$

Not available

44

Ariens 05701900

RG-RTNG-EXT .625X.035
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

45

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

46

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

47

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

48

Ariens 06908300

CLIP

$

$

Not available

49

Ariens 02754200

BRACKET- NEUTRAL

$

$

Not available

50

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

51

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

52

Ariens 02707000

QUADRANT

$71.99

$

Usually ships in 4-12 days

0

53

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

54

Ariens 02704000

INDICATOR

$

$

Not available

55

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

56

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

60

UNKNOWN

$

$

Not available
