927043 (RM 1230 E) - Ariens 30" Rear-Engine Rider, 12.5hp Briggs & Stratton (SN: 001400 & Above) Mower Height Linkage Parts Diagram

30" Rear-Engine Rider, 12.5hp Briggs & Stratton

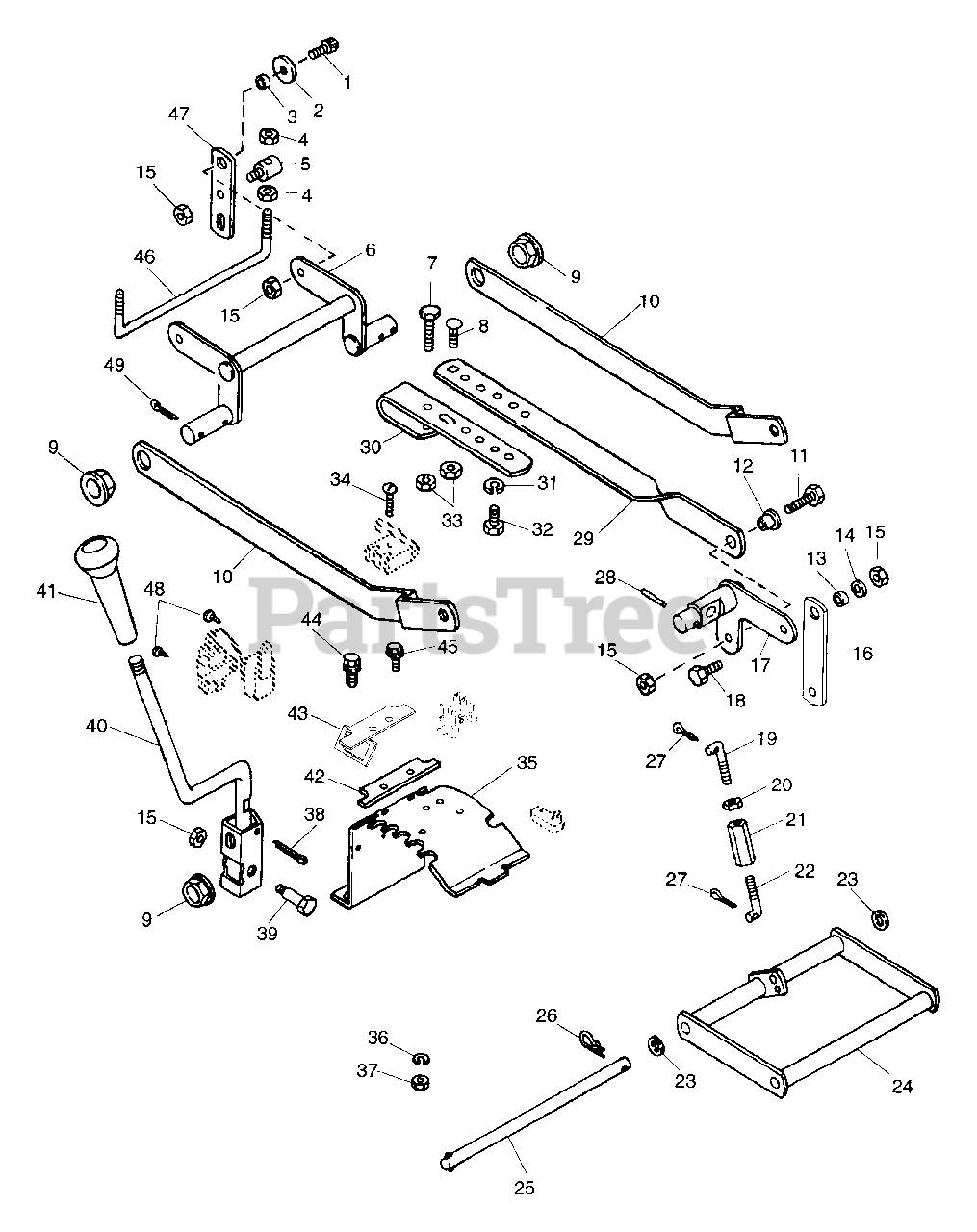

Mower Height Linkage Parts Diagram

  • Title

1

Ariens 05920900

SCR-SKH .31-18X.75 BTNHD YWZC

$3.99

$

In Stock, only 2 left!

0

2

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$2.49

$

In Stock, only 2 left!

0

3

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

4

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 02720600

ROD PIVOT

$

$

Not available

6

Ariens 02717600

REAR MOWER HANGER

$

$

Not available

7

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0

8

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

10

Ariens 02719400

POSITIONING ARM

$

$

Not available

11

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

12

Ariens 02519500

SPACER -SHLD .344X.500X.469

$

$

Not available

13

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

15

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 02705100

STRAP

$

$

Not available

17

Ariens 02715600

MOWER LIFT ARM

$

$

Not available

18

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 02728900

LINK - FRONT LIFT

$54.99

$

In Stock, only 2 left!

0

20

Ariens 06514800

NUT-LK .375-16

$

$

Not available

21

Ariens 06515500

NUT-CUPLG RH & LH THD .37-16PL

$5.99

$

Usually ships in 4-12 days

0

22

Ariens 02737800

LINK-FRONT LIFT

$50.99

$

In Stock, only 1 left!

0

23

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, only 1 left!

0

24

Ariens 02718800

FRONT LIFT ARM

Note: (Models 037,043,045,048,049,301,302)

$

$

Not available

Ariens 02719700

FRONT LIFT ARM

Note: (Models 047,050,303)

$

$

Not available

25

Ariens 02508600

HANGER PIN

$64.99

$

Usually ships in 4-12 days

0

26

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

27

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

28

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

29

Ariens 02722200

LIFT STRAP

$

$

Not available

30

Ariens 02722300

ADJUSTMENT STRAP

$

$

Not available

31

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 2 left!

0

32

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06105000

SCR-MCH 10-24X1.00 SLRH PL

Note: (Models 037,043,045,047)

$

$

Not available

35

Ariens 02748800

QUADRANT

$

$

Not available

36

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

Note: (Models 037,043,045,047)

$1.49

$

Usually ships in 4-12 days

0

37

Ariens 06505500

NUT-HEX 10-24 PL

Note: (Models 037,043,045,047)

$

$

Not available

38

Ariens 06700500

PIN-COTR .15X1.50
(Superseded to 06713800)

$3.99

$

In Stock, Qty 5

0

39

Ariens 02712900

SHOULDER BOLT .436 X .912

$9.49

$

In Stock, only 1 left!

0

40

Ariens 02733800

LINK

$

$

Not available

41

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0

42

Ariens 02719800

STOP

Note: (Models 037,043,045,047)

$

$

Not available

43

Ariens 02754300

REINFORCEMENT STOP

Note: (Models 048,049,050,301,302,303)

$

$

Not available

44

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 02729000

ROD - REAR LIFT

$61.99

$

Usually ships in 4-12 days

0

47

Ariens 02728800

LINK - REAR LIFT

$7.99

$

Usually ships in 4-12 days

0

48

Ariens 07408500

SCR-TAP 12-14X.50 CRPH PL

$

$

Not available

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

49

Ariens 06700200

PIN-COTR .09X1.0 PL

$0.99

$

Usually ships in 4-12 days

0
