927037 (RM 830 E) - Ariens 30" Rear-Engine Rider, 8hp (SN: 003901 - 006338) Electrical Parts Diagram

30" Rear-Engine Rider, 8hp

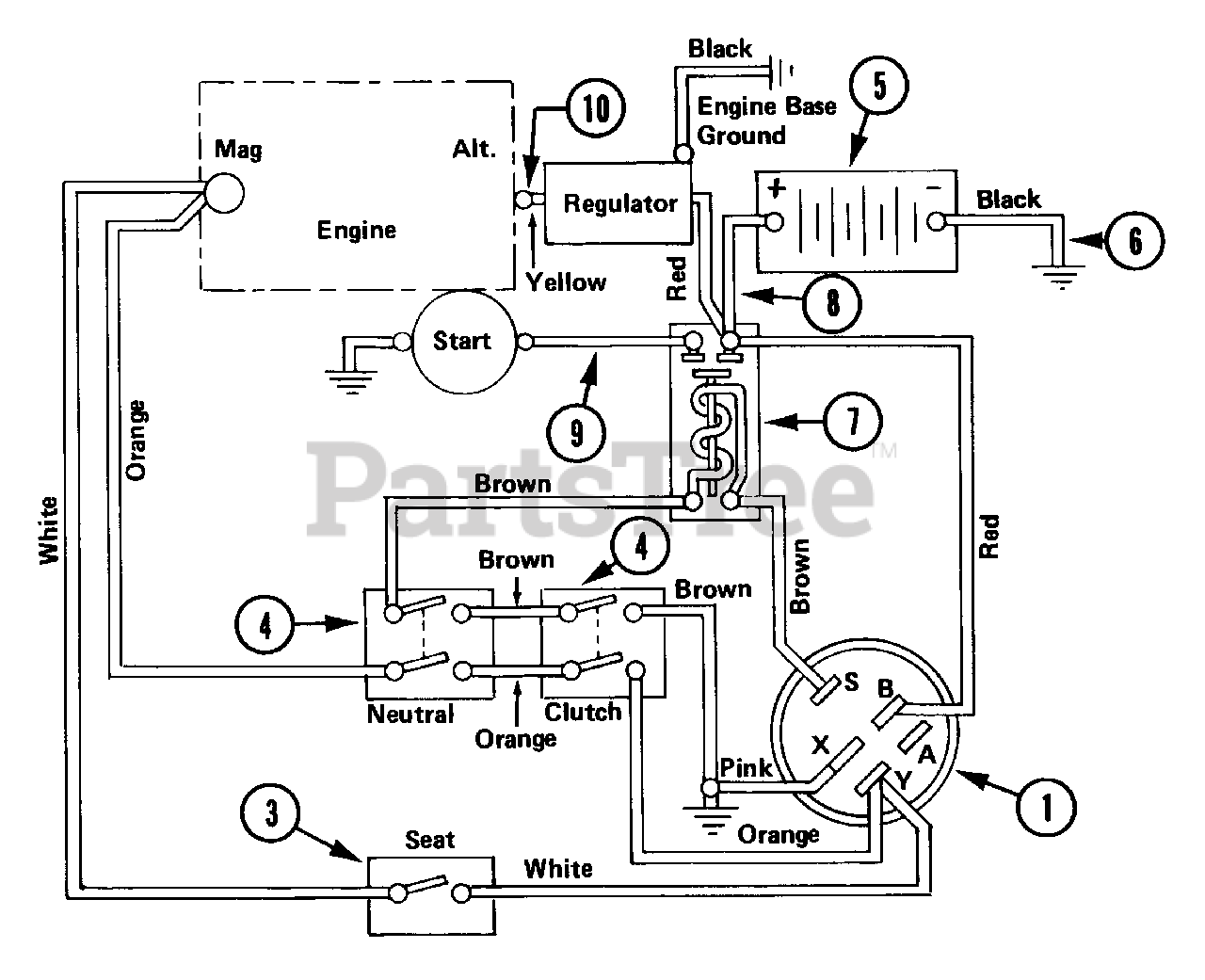

Electrical Parts Diagram

  • Title

1

Ariens 01234100

KEY SWITCH

Note: (037, 039)

$68.99

$

Usually ships in 4-12 days

0

1

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

Note: (025, 040, 041, 042, 043, 044, 045)

$56.99

$

In Stock, Qty 6

0

3

Ariens 02737900

SAFETY SWITCH

$23.99

$

In Stock, only 1 left!

0

Ariens 52706600

SEAT W/SWITCH REPLACEMENT PACK

$

$

Not available

Ariens 03171600

SWITCH SEAT

$

$

Not available

4

Ariens 02707800

SWITCH INTERLOCK

$17.99

$

Usually ships in 4-12 days

0

Ariens 01237100

SWITCH ASSEMBLY, N.O./N.O.

$

$

Not available

5

Ariens 02749400

BATTERY

$

$

Not available

6

Ariens 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

$14.99

$

In Stock, only 1 left!

0

7

Ariens 03551000

SOLENOID

$34.99

$

In Stock, Qty 15

0

8

Ariens 02727900

STARTER CABLE 16"

$35.99

$

In Stock, only 1 left!

0

9

Ariens 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$20.99

$

In Stock, Qty 9

0

11

Ariens 02739700

ADAPTER - SEAT SWITCH

$

$

Not available

12

Ariens 02748200

WIRE HARNESS GROUND TO RUN

$

$

Not available

13

Ariens 01238500

REGULATOR

$86.99

$

Usually ships in 4-12 days

0
