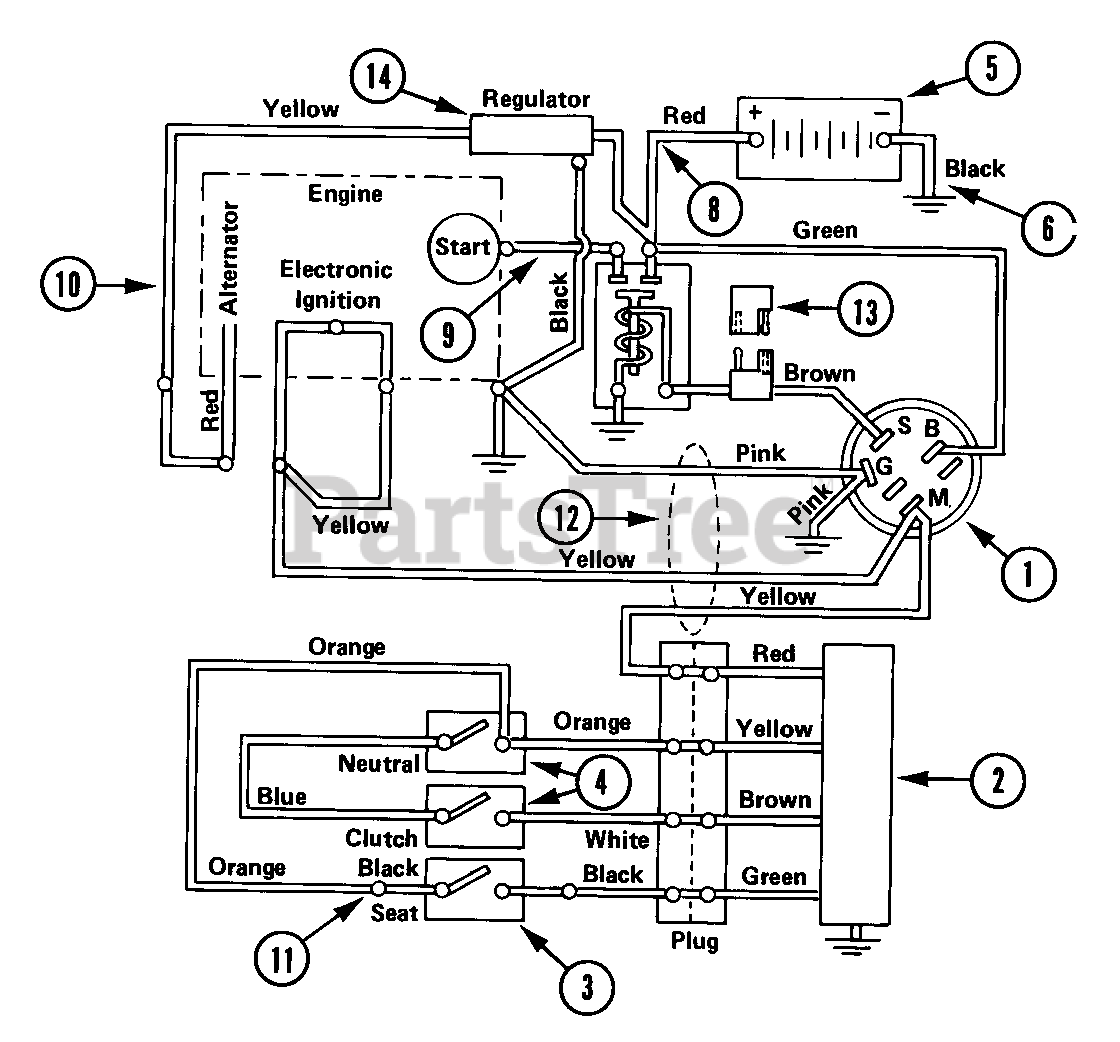

927036 (RM 1232 E) - Ariens 32" Rear-Engine Rider, 12hp Kawasaki (SN: 000101 & Above) Electrical Parts Diagram

32" Rear-Engine Rider, 12hp Kawasaki

Electrical Parts Diagram

  • Title

1

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, Qty 6

0

2

Ariens 02724000

MODULE
(Superseded to 52707700)

$

$

Not available

3

Ariens 02737900

SAFETY SWITCH

$23.99

$

In Stock, only 1 left!

0

3

Ariens 52703800

SEAT WITH SWITCH REPLACEMENT P
(Superseded to 52706600)

$

$

Not available

3

Ariens 03171600

SWITCH SEAT

$

$

Not available

4

Ariens 02707800

SWITCH INTERLOCK

$17.99

$

Usually ships in 4-12 days

0

5

Ariens 02512900

BATTERY
(Superseded to 52708000)

$

$

Not available

6

Ariens 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

Note: (36)

$14.99

$

In Stock, only 1 left!

0

9

Ariens 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

10

Ariens 02743200

CHARGING WIRE
(Superseded to 53600600)

Note: (34)

$

$

Not available

11

Ariens 02739700

ADAPTER - SEAT SWITCH

$

$

Not available

12

Ariens 02743800

WIRE HARNESS

Note: (34)

$

$

Not available

12

Ariens 02747900

WIRE HARNESS

Note: (36)

$

$

Not available

13

Ariens 02745200

DIODE & HOUSING

$40.99

$

Usually ships in 4-12 days

0

14

Ariens 01238500

REGULATOR

Note: (36)

$86.99

$

Usually ships in 4-12 days

0
