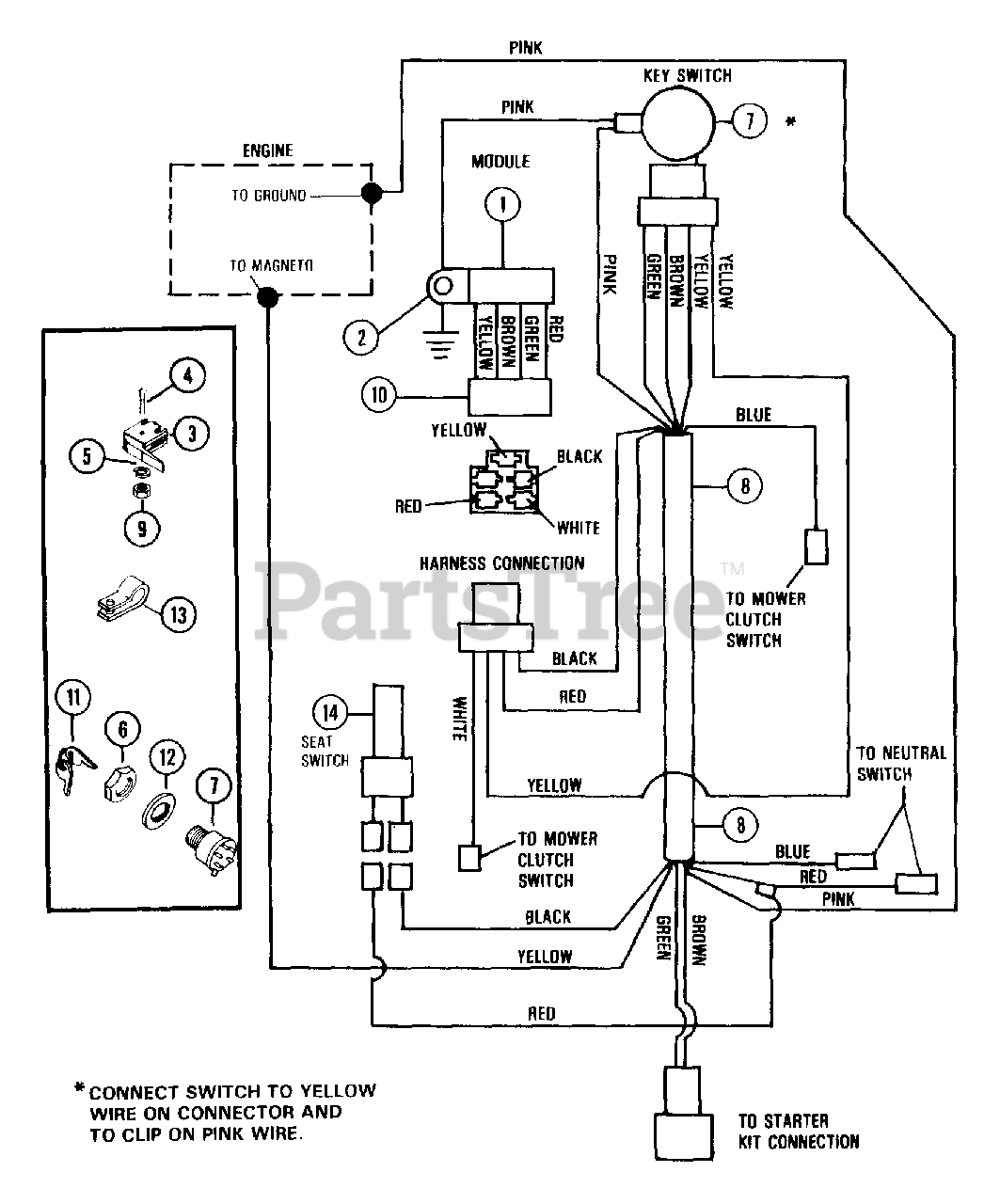

927026 (RM 1032) - Ariens 32" Rear-Engine Rider, 10hp Tecumseh (SN: 000101 & Above) Riding Mower With Recoil Start Parts Diagram

32" Rear-Engine Rider, 10hp Tecumseh

Riding Mower With Recoil Start Parts Diagram

  • Title

1

Ariens 02723700

MODULE
(Superseded to 52707800)

$

$

Not available

2

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

3

Ariens 02707800

SWITCH INTERLOCK

$17.99

$

Usually ships in 4-12 days

0

4

Ariens 06105000

SCR-MCH 10-24X1.00 SLRH PL

$

$

Not available

5

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.49

$

Usually ships in 4-12 days

0

6

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

Note: SPECIAL, ALL UNITS

$7.99

$

Usually ships in 4-12 days

0

7

Ariens 62409700

SWITCH & KEY SET ASSEMBLY
(Superseded to 52406900)

$39.99

$

Usually ships in 4-12 days

0

8

Ariens 02723600

WIRE HARNESS

$

$

Not available

9

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

10

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

$

$

Not available

11

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

12

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06908300

CLIP

$

$

Not available

14

Ariens 03171600

SWITCH SEAT

$

$

Not available
