927026 (RM 1032) - Ariens 32" Rear-Engine Rider, 10hp Tecumseh (SN: 000101 & Above) Rear Frame Assembly Parts Diagram

32" Rear-Engine Rider, 10hp Tecumseh

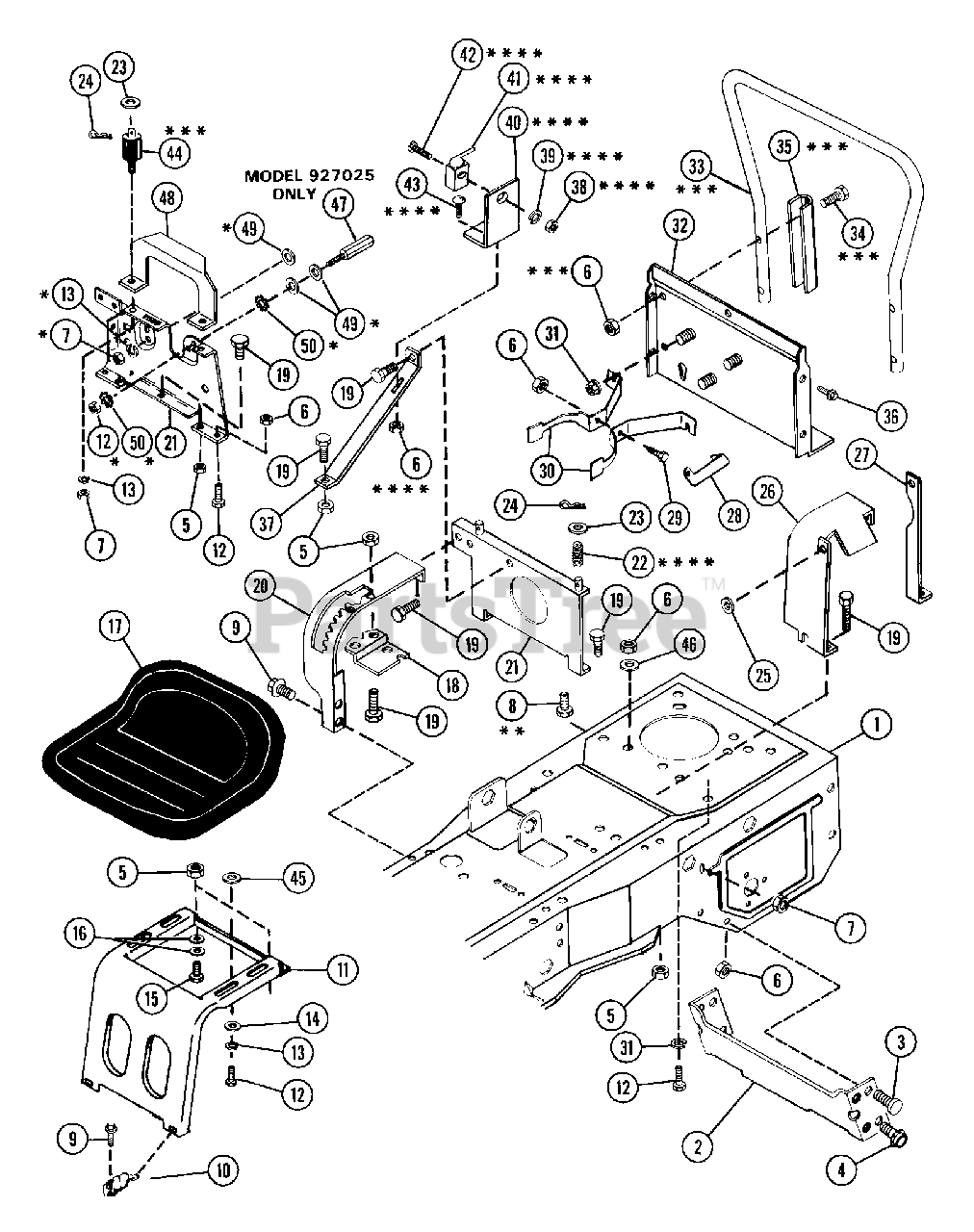

Rear Frame Assembly Parts Diagram

  • Title

1

Ariens 02700100

FRAME
(Superseded to 52700200)

$

$

Not available

2

Ariens 02717700

FRAME BRACE

$

$

Not available

3

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

4

Ariens 07402900

SCR-TAP .312-18X1.50 HWH PL TR
(Superseded to 07415300)

$

$

Not available

5

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

8

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

9

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 02535300

CLAMP

$

$

Not available

11

Ariens 02732600

SEAT BRACKET
(Superseded to 52708200)

$

$

Not available

12

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

Note: (Used Only On Model(s): 927023,24,25,26).

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

Note: (Used Only On Model(s): 927017,18,20).

$1.99

$

In Stock, only 1 left!

0

16

Ariens 06406900

WSHR-FL-STL .406X.812X.063 PL
(Superseded to 06436200)

Note: (Used Only On Model(s): 927017,18,20).

$0.99

$

In Stock, Qty 20+

0

17

Ariens 02731900

SEAT
(Superseded to 01235600)

Note: (Used Only On Model(s): 927017,18,20).

$

$

Not available

17

Ariens 02723500

SEAT
(Superseded to 01235600)

Note: (Used Only On Model(s): 927021,23,24,25,26).

$

$

Not available

18

Ariens 02713400

BRACKET NEUTRAL SWITCH

$

$

Not available

19

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 02707000

QUADRANT

$71.99

$

Usually ships in 4-12 days

0

21

Ariens 02732500

SEAT LEG
(Superseded to 02700300)

Note: (Used Only On Model(s): 927017,18,20).

$

$

Not available

21

Ariens 02700300

SEAT LEG

Note: (Used Only On Model(s): 927021,24,26).

$

$

Not available

21

Ariens 02717800

SEAT LEG

Note: (Used Only On Model(s): 927023,25).

$

$

Not available

22

Ariens 08319500

SG-COMP
(Superseded to 08321700)

Note: (Used Only On Model(s): 927017,18,20).

$9.49

$

Usually ships in 4-12 days

0

23

Ariens 02732900

SPRING CUP

Note: (Used Only On Model(s): 927017, 18, 20).

$

$

Not available

23

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

Note: (Used Only On Model(s): 927021, 23, 24, 25, 26).

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

Note: (Used Only On Model(s): 927017, 18, 20).

$0.99

$

In Stock, Qty 15

0

25

Ariens 07502600

GROMMET, .31 ID

$

$

Not available

26

Ariens 02700500

SHIELD

Note: (Used Only On Model(s): 927017, 18, 20, 21, 24, 26).

$

$

Not available

27

Ariens 02714100

BRACE

Note: (Used Only On Model(s): 927017, 18, 20, 21, 24, 26).

$

$

Not available

28

Ariens 02509200

BELT FINGER BRACE

$32.99

$

Usually ships in 4-12 days

0

29

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 02504400

BELT FINGER

$17.99

$

Usually ships in 4-12 days

0

31

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 02701100

BACK COVER

$

$

Not available

33

Ariens 02701200

TUBE
(Superseded to 02701251)

Note: (Used Only On Model(s): 927021, 23, 24, 25, 26).

$41.99

$

Usually ships in 4-12 days

0

34

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

Note: (Used Only On Model(s): 927021, 23, 24, 25, 26).

$1.49

$

In Stock, Qty 13

0

35

Ariens 02722700

BRACE
(Superseded to 02722751)

Note: (Used Only On Model(s): 927021,23,24,25,26).

$14.99

$

Usually ships in 4-12 days

0

36

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

37

Ariens 02700400

BRACE

$

$

Not available

38

Ariens 06505500

NUT-HEX 10-24 PL

Note: (Used Only On Model(s): 927017, 18, 20).

$

$

Not available

39

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

Note: (Used Only On Model(s): 927017, 18, 20).

$1.49

$

Usually ships in 4-12 days

0

40

Ariens 02732700

SEAT SWITCH BRACKET
(Superseded to 52706600)

Note: (Used Only On Model(s): 927017, 18, 20).

$

$

Not available

41

Ariens 02707800

SWITCH INTERLOCK

Note: (Used Only On Model(s): 927017, 18, 20).

$17.99

$

Usually ships in 4-12 days

0

42

Ariens 06105000

SCR-MCH 10-24X1.00 SLRH PL

Note: (Used Only On Model(s): 927017,18,20).

$

$

Not available

43

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

Note: (Used Only On Model(s): 927017,18,20).

$2.49

$

In Stock, Qty 20+

0

44

Ariens 02717900

ISOLATION MOUNT

Note: (Used Only On Model(s): 927023, 25, 26).

$21.99

$

In Stock, only 1 left!

0

45

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

Note: (Used Only On Model(s): 927020, 25).

$7.99

$

In Stock, Qty 8

0

46

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

47

Ariens 02718000

STUD SPACER

Note: (Used Only On Model(s): 927025).

$

$

Not available

48

Ariens 02735000

ENGINE CLIP

Note: (Used Only On Model(s): 927023, 26).

$

$

Not available

49

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

Note: (Used Only On Model(s): 927023, 25).

$1.49

$

In Stock, only 2 left!

0

50

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

Note: (Used Only On Model(s): 927023, 25).

$0.99

$

In Stock, only 3 left!

0
