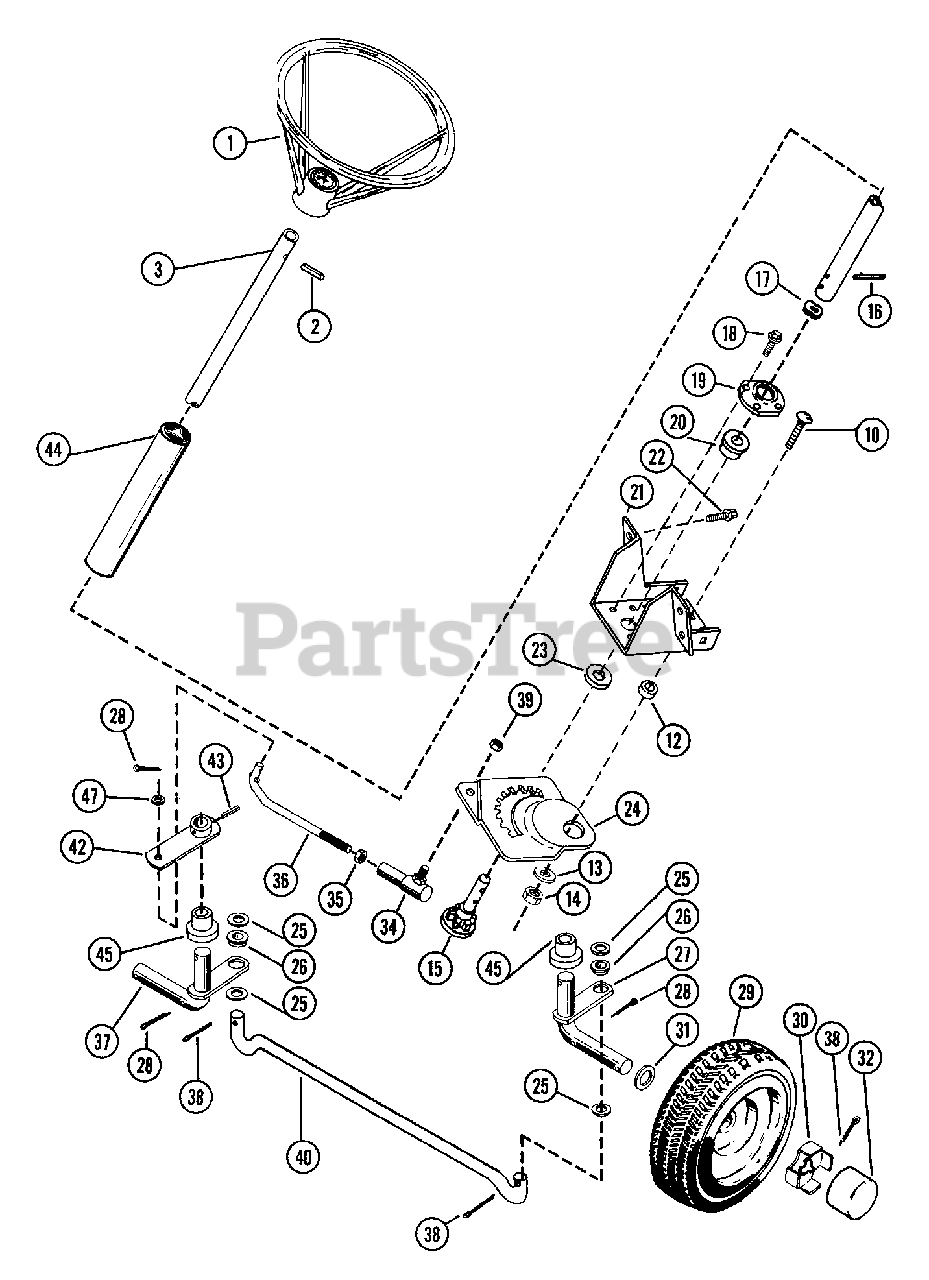

927020 (RM 1032) - Ariens 32" Rear-Engine Rider, 10hp Tecumseh (SN: 004501 - 005500) Steering Assembly Parts Diagram

32" Rear-Engine Rider, 10hp Tecumseh

Steering Assembly Parts Diagram

  • Title

1

Ariens 02713600

STEERING WHEEL

$

$

Not available

2

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

3

Ariens 02713900

STEERING SHAFT

$

$

Not available

10

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 02506200

SPACER .380X.750X.236

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06407500

WSHR-FL-STL .390X1.500X.125
(Superseded to 06441700)

$3.99

$

In Stock, only 1 left!

0

14

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 02705400

PINION
(Superseded to 03841600)

$

$

Not available

16

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

17

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07402100

SCR-TAP 10-24X.25 CRSLPH PL 1A
(Superseded to 07415500)

$

$

Not available

19

Ariens 01310000

RETAINING PLATE

$51.99

$

Usually ships in 4-12 days

0

20

Ariens 05505300

BSHG-FLG .625X1.156X.375 SI

$5.99

$

Usually ships in 4-12 days

0

21

Ariens 02705300

STEERING BRACKET

$

$

Not available

22

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

23

Ariens 06417400

WSHR-FL-STL .630X1.250X.062 PL
(Superseded to 06445100)

$2.49

$

In Stock, only 3 left!

0

24

Ariens 02506100

STEERING GEAR

$77.99

$

Usually ships in 4-12 days

0

25

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

26

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 19

0

27

Ariens 02735400

L.H. WHEEL SPINDLE

$104.99

$

Usually ships in 4-12 days

0

28

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 62711200

FRONT WHEEL ASSEMBLY
(Superseded to 07117400)

Note: (Used Only On Model(s): 927018).

$

$

Not available

29

Ariens 62711300

FRONT WHEEL ASSEMBLY
(Superseded to 07116100)

Note: (Used Only On Model(s): 927020).

$

$

Not available

29

Ariens 61200500

FRONT WHEEL ASSEMBLY
(Superseded to 07126400)

Note: (Used Only On Model(s): 927025,27).

$68.99

$

In Stock, only 2 left!

0

29

Ariens 07108000

TIRE 4.10/3.50-4

$28.99

$

In Stock, Qty 9

0

29

Ariens 07108500

TUBE

$17.99

$

Usually ships in 4-12 days

0

29

Ariens 07108300

WHL
(Superseded to 52703100)

$79.99

$

Usually ships in 4-12 days

0

29

Ariens 01215200

ZERK FITTING

$3.99

$

Usually ships in 4-12 days

0

29

Ariens 05505800

BSHG-FLG .750X1.380X.750X1.557

$7.49

$

In Stock, Qty 7

0

30

Ariens 00337600

SPINDLE CUP
(Superseded to 01238200)

$

$

Not available

31

Ariens 02512000

SPINDLE WASHER

$38.99

$

In Stock, only 3 left!

0

32

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

34

Ariens 02917100

BALL JOINT

$23.99

$

In Stock, Qty 6

0

35

Ariens 06500500

NUT .375-24 PL

$3.99

$

In Stock, only 1 left!

0

36

Ariens 02735800

WIRE HARNESS

$

$

Not available

37

Ariens 02735300

R.H. WHEEL SPINDLE

$103.99

$

Usually ships in 4-12 days

0

38

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

39

Ariens 06512300

NUT-LK .375-24 PL

$3.99

$

Usually ships in 4-12 days

0

40

Ariens 02706400

TIE ROD

$

$

Not available

42

Ariens 02706300

ARM

$72.99

$

Usually ships in 4-12 days

0

43

Ariens 05804000

PIN-GRV .250X1.25 TP A

$

$

Not available

44

Ariens 02708200

TUBE

$

$

Not available

45

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

47

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0
