927020 (RM 1032) - Ariens 32" Rear-Engine Rider, 10hp Tecumseh (SN: 004501 - 005500) Rear Axle Parts Diagram

32" Rear-Engine Rider, 10hp Tecumseh

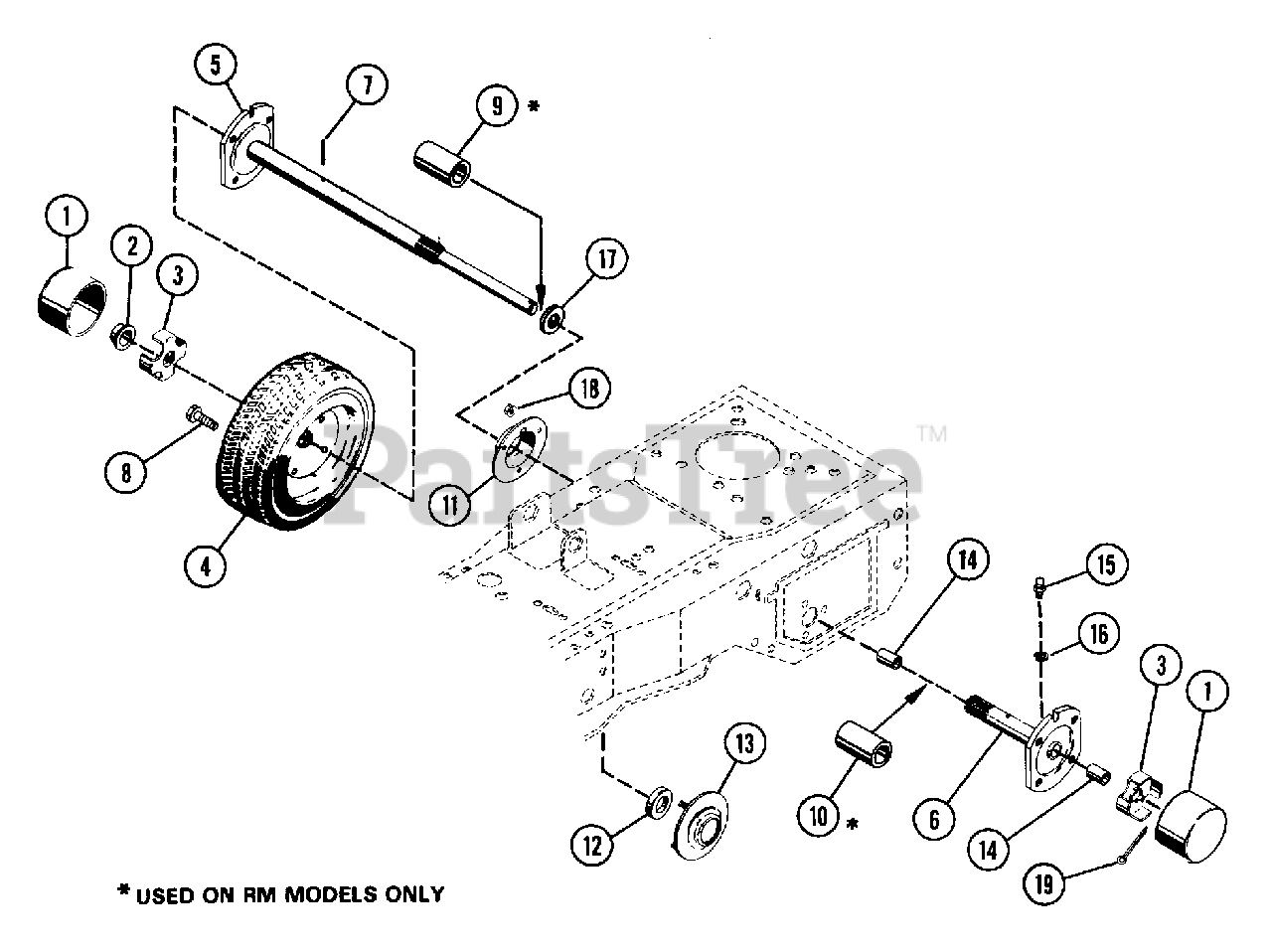

Rear Axle Parts Diagram

  • Title

1

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

2

Ariens 01036600

PUSHNUT

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 00337600

SPINDLE CUP
(Superseded to 01238200)

$

$

Not available

4

Ariens 60300200

WHEEL ASSEMBLY
(Superseded to 07100017)

Note: (Used Only On Model(s): 927018).

$136.99

$

Usually ships in 4-12 days

0

4

Ariens 07108200

TIRE
(Superseded to 07100017)

Note: (Used Only On Model(s): 927018).

$136.99

$

Usually ships in 4-12 days

0

4

Ariens 07107600

WHL

Note: (Used Only On Model(s): 927018).

$67.99

$

In Stock, only 1 left!

0

4

Ariens 60394800

TERRA TIRE & WHEEL ASSEMBLY
(Superseded to 07115200)

Note: (Used Only On Model(s): 927020,25,27).

$

$

Not available

4

Ariens 07102100

TIRE 16X6.50-8 2 PLY

Note: (Used Only On Model(s): 927020,25,27).

$79.99

$

Usually ships in 4-12 days

0

4

Ariens 07107700

WHL

Note: (Used Only On Model(s): 927020,25,27).

$82.99

$

Usually ships in 4-12 days

0

5

Ariens 02702900

R H AXLE

Note: (Used Only On Model(s): 927018).

$

$

Not available

5

Ariens 02718100

RH AXLE
(Superseded to 02757800)

Note: (Used Only On Model(s): 927020,25,27).

$232.99

$

Usually ships in 4-12 days

0

6

Ariens 62700400

L H AXLE ASSEMBLY
(Superseded to 52704300)

Note: (Used Only On Model(s): 927018).

$119.99

$

Usually ships in 4-12 days

0

6

Ariens 62703400

L H AXLE ASSEMBLY
(Superseded to 52709200)

Note: (Used Only On Model(s): 927020,25,27).

$219.99

$

In Stock, only 1 left!

0

7

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

8

Ariens 07003200

BLT-WHL .50-20X.75 GR5 PL
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0

9

Ariens 02718200

TUBE

Note: (Used Only On Model(s): 927025).

$

$

Not available

10

Ariens 02718400

TUBE

Note: (Used Only On Model(s): 927025).

$

$

Not available

11

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

12

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$34.99

$

Usually ships in 4-12 days

0

13

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, Qty 17

0

14

Ariens 05511900

BSHG-SLV .690X.814X1.000 BR

$

$

Not available

15

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

16

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 06403600

WSHR-FL-STL .880X1.380X.062

$6.99

$

Usually ships in 4-12 days

0

18

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0
