927020 (RM 1032) - Ariens 32" Rear-Engine Rider, 10hp Tecumseh (SN: 004501 - 005500) Mower Brake & Clutch Assembly Parts Diagram

32" Rear-Engine Rider, 10hp Tecumseh

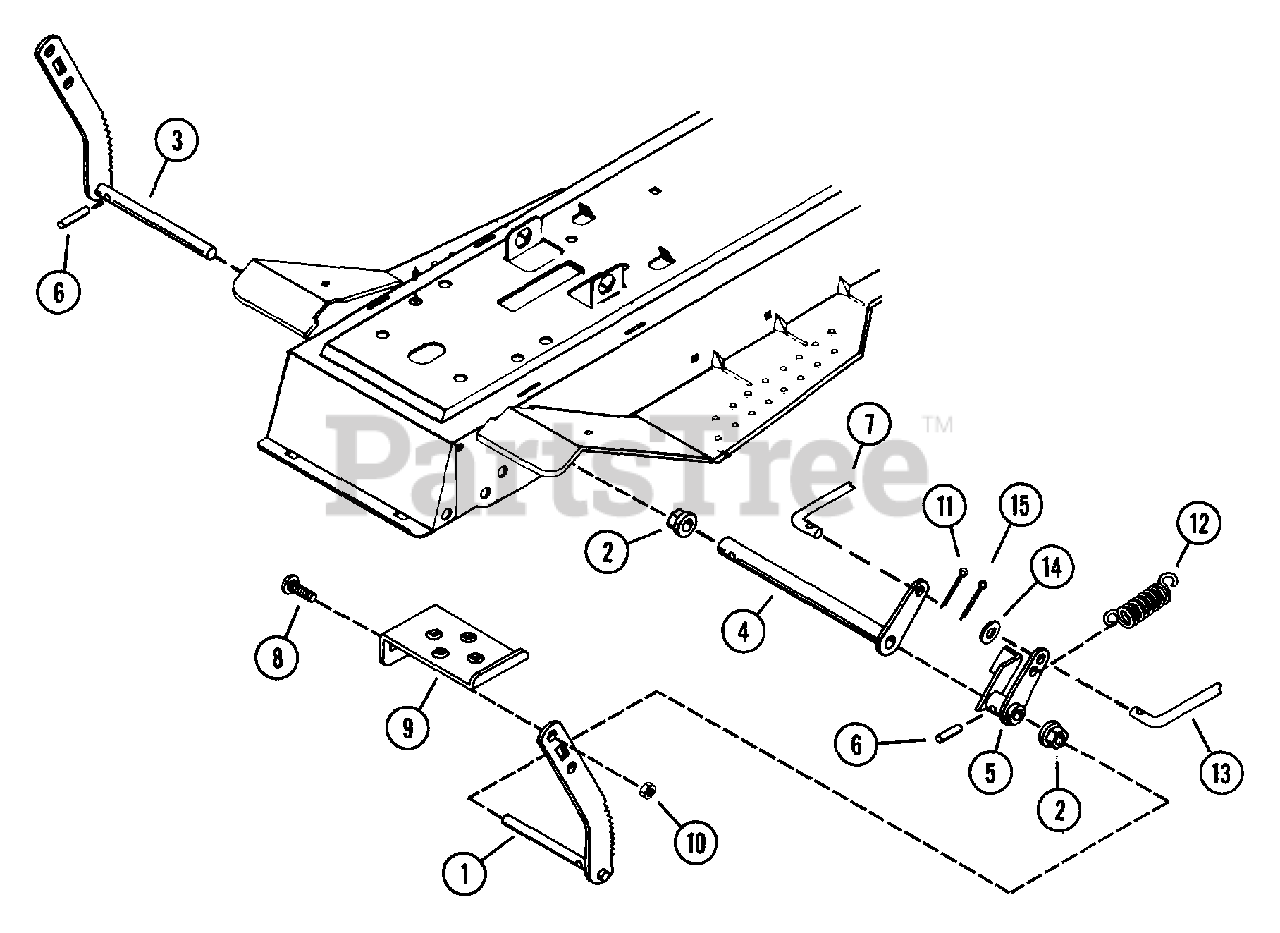

Mower Brake & Clutch Assembly Parts Diagram

  • Title

1

Ariens 02703200

CLUTCH PEDAL ARM

$22.99

$

Usually ships in 4-12 days

0

2

Ariens 02505500

FLANGE BUSHING

$

$

Not available

3

Ariens 02703400

BRAKE PEDAL ARM

$

$

Not available

4

Ariens 02703300

BRAKE ARM

$

$

Not available

5

Ariens 02713800

CLUTCH ARM

$14.99

$

Usually ships in 4-12 days

0

6

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

7

Ariens 02703700

BRAKE ROD

$

$

Not available

8

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 02706900

PEDAL

$

$

Not available

10

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06702300

PIN-COTR .09X1.87 PL

$

$

Not available

12

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

Usually ships in 4-12 days

0

13

Ariens 02703600

ROD, CLUTCH

$66.99

$

Usually ships in 4-12 days

0

14

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

15

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0
