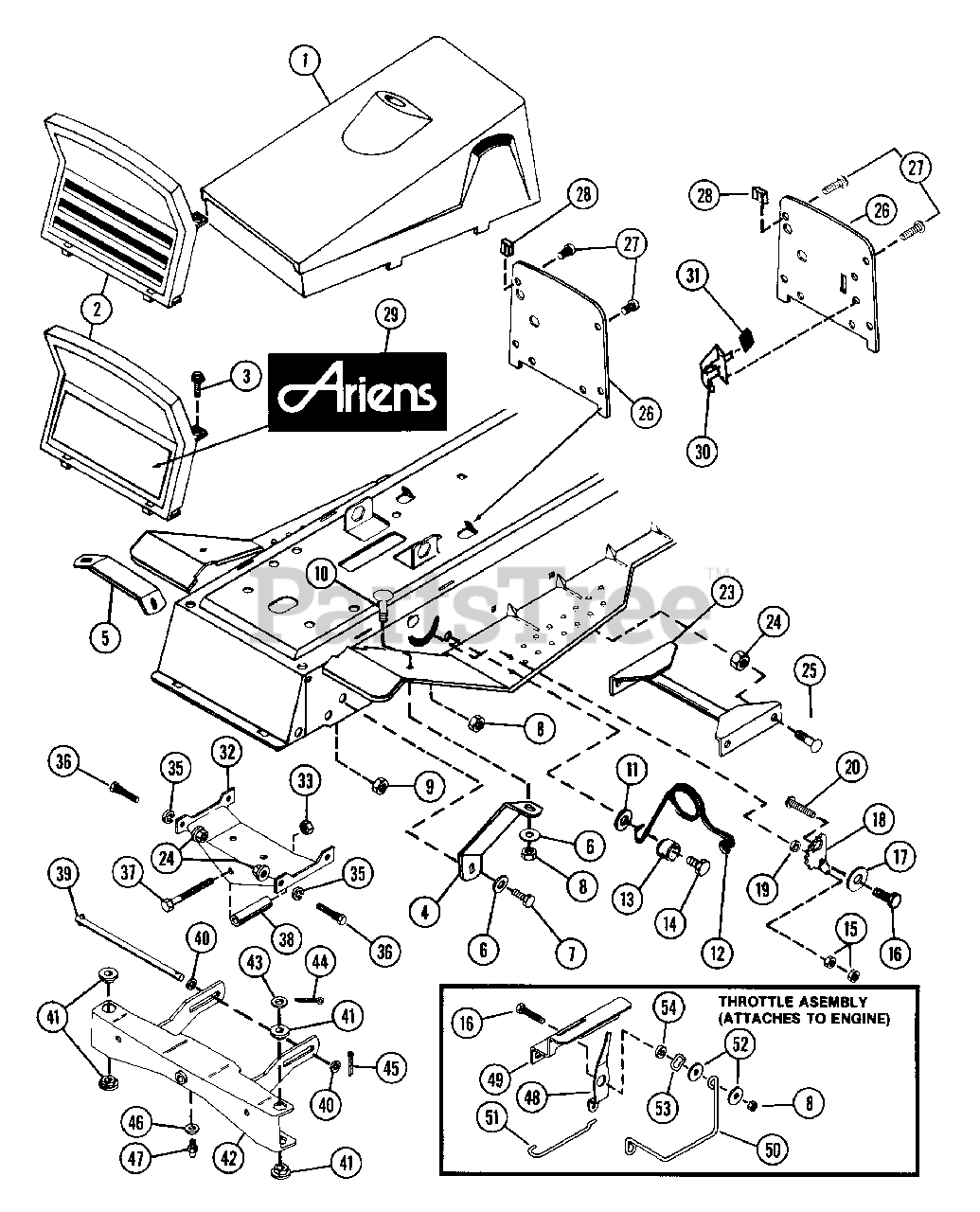

927020 (RM 1032) - Ariens 32" Rear-Engine Rider, 10hp Tecumseh (SN: 004501 - 005500) Front Frame Assembly Parts Diagram

32" Rear-Engine Rider, 10hp Tecumseh

Front Frame Assembly Parts Diagram

  • Title

1

Ariens 02708000

COWL

$

$

Not available

2

Ariens 02707900

GRILLE
(Superseded to 02739500)

Note: (Used Only On Model(s): 927018,20,27).

$

$

Not available

2

Ariens 62707500

GRILLE INSERT & SHELL ASSEMBLY
(Superseded to 02739500)

Note: (Used Only On Model(s): 927025).

$

$

Not available

3

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 02706100

FENDER BRACE

Note: (Used Only On Model(s): 927018,24).

$

$

Not available

4

Ariens 02718600

L H FENDER BRACE

Note: (Used Only On Model(s): 927020,25,27).

$

$

Not available

5

Ariens 02718700

RH FENDER BRACE

Note: (Used Only On Model(s): 927020,25,27).

$

$

Not available

6

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

7

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

8

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06509000

NUT-LK-TWIN .312-18 PL

$

$

Not available

10

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$2.49

$

In Stock, only 2 left!

0

12

Ariens 08317900

SG-TORS .125X1.0X1.75

$

$

Not available

13

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

Note: (Used Only On Model(s): 927020,25,27).

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

Note: (Used Only On Model(s): 927018).

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

15

Ariens 06504700

NUT 8-32 PL
(Superseded to 06529900)

Note: (Used Only On Model(s): 927018,20,27).

$

$

Not available

16

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

Note: (Used Only On Model(s): 927020,25,27).

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

Note: (Used Only On Model(s): 927018).

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 02519400

BRAKE LATCH

$14.99

$

Usually ships in 4-12 days

0

19

Ariens 02519500

SPACER -SHLD .344X.500X.469

$

$

Not available

20

Ariens 06106200

SCR-MCH 8-32X1.00 SLTR PL
(Superseded to 06117800)

Note: (Used Only On Model(s): 927018,20,27).

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 02705200

FRAME BRACE

$

$

Not available

24

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 02736200

DASH PANEL W/SILK SCREEN
(Superseded to 52708100)

Note: (Used Only On Model(s): 927025).

$

$

Not available

26

Ariens 02736500

DASH PANEL W/SILK SCREEN

Note: (Used Only On Model(s): 927027).

$

$

Not available

26

Ariens 02733200

DASH PANEL W/SILK SCREEN

Note: (Used Only On Model(s): 927018).

$

$

Not available

26

Ariens 02734100

DASH PANEL W/SILK SCREEN
(Superseded to 52708100)

Note: (Used Only On Model(s): 927020).

$

$

Not available

27

Ariens 06103300

SCR-MCH 10-32X.50 CRFLSTRSEMS

$

$

Not available

28

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

29

Ariens 07889700

DECAL - GRILLE

Note: (Used Only On Model(s): 927018,20,27).

$

$

Not available

30

Ariens 06908700

THROTTLE CONTROL

Note: (Used Only On Model(s): 927020).

$59.99

$

Usually ships in 4-12 days

0

30

Ariens 06912700

THROTTLE CONTROL

Note: (Used Only On Model(s): 927025,27).

$59.99

$

Usually ships in 4-12 days

0

31

Ariens 07501900

KNOB

Note: (Used Only On Model(s): 927020,25,27).

$

$

Not available

32

Ariens 02706600

AXLE BRACKET

$

$

Not available

33

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 1 left!

0

35

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

37

Ariens 05905100

BLT-HEX .50-13X4.00 PL GR2
(Superseded to 05961900)

$3.99

$

Usually ships in 4-12 days

0

38

Ariens 02713200

TUBE AXLE PIVOT

$

$

Not available

39

Ariens 02508600

HANGER PIN

$64.99

$

Usually ships in 4-12 days

0

40

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

41

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

42

Ariens 02506000

AXLE
(Superseded to 02729200)

$54.99

$

Usually ships in 4-12 days

0

43

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

44

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

45

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

46

Ariens 06409400

WSHR-FL-STL .265X.500X.087 PL
(Superseded to 06439500)

$1.49

$

Usually ships in 4-12 days

0

47

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

48

Ariens 02734000

LEVER - THROTTLE

Note: (Used Only On Model(s): 927018).

$

$

Not available

49

Ariens 02733900

BRACKET - THROTTLE

Note: (Used Only On Model(s): 927018).

$

$

Not available

50

Ariens 02734600

THROTTLE BRACE

Note: (Used Only On Model(s): 927018).

$

$

Not available

51

Ariens 02733800

LINK

Note: (Used Only On Model(s): 927018).

$

$

Not available

52

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

Note: (Used Only On Model(s): 927018).

$3.99

$

Usually ships in 4-12 days

0

53

Ariens 00325400

WAVE WASHER .531X.781X.125FH

Note: (Used Only On Model(s): 927018).

$0.99

$

In Stock, Qty 20+

0

54

Ariens 02732900

SPRING CUP

$

$

Not available
