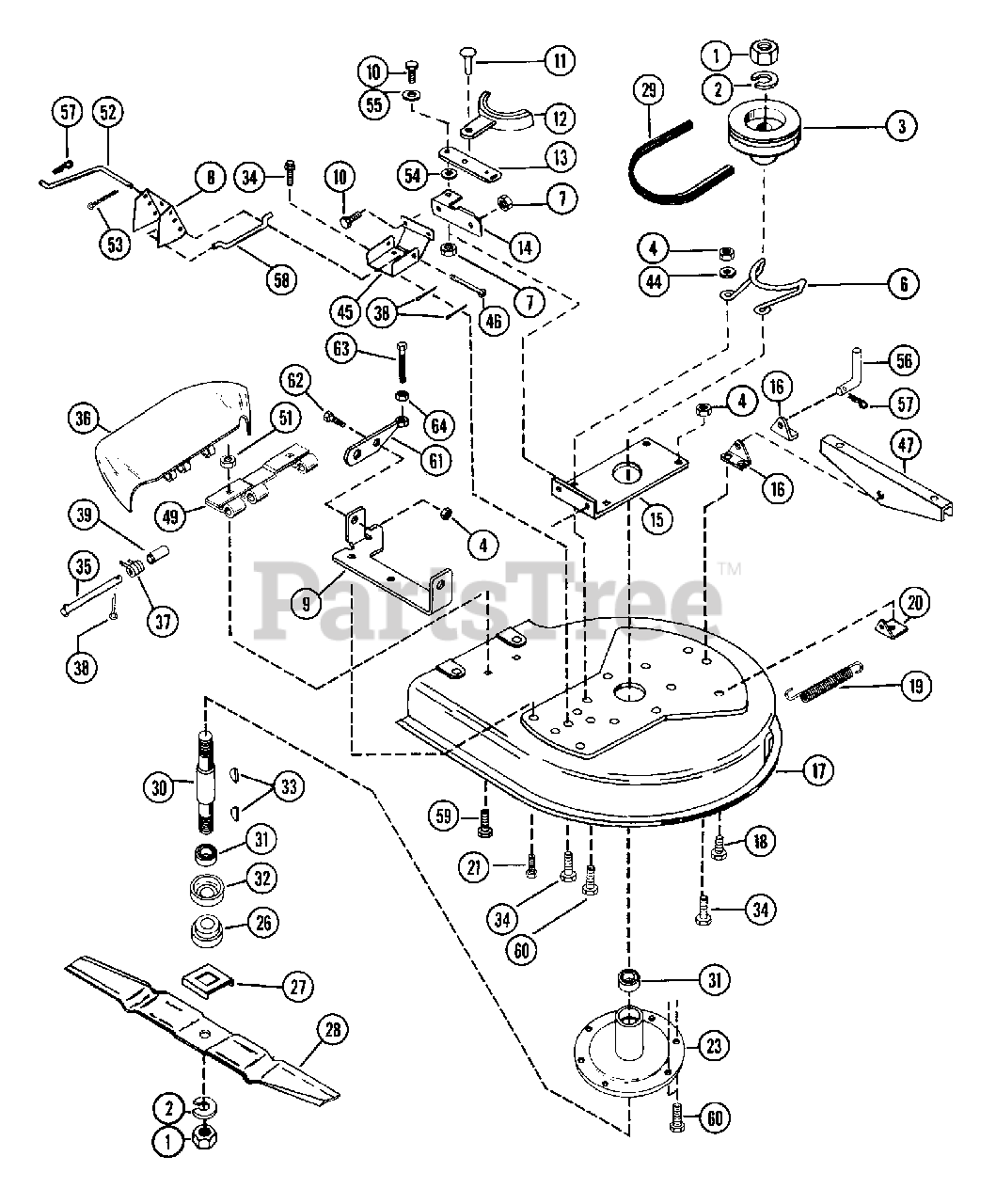

927018 (SRM 626) - Ariens 26" Rear-Engine Rider, 6hp Tecumseh (SN: 001201 - 002100) Mower 26" Parts Diagram

26" Rear-Engine Rider, 6hp Tecumseh

Mower 26" Parts Diagram

  • Title
1

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

2

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 02712500

MOWER SHEAVE

$

$

Not available

4

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 02715500

BELT FINGER

$

$

Not available

7

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 02715400

MOWER ENGAGING ARM

$

$

Not available

9

Ariens 02736700

FRONT BRACKET 26

$

$

Not available

10

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

11

Ariens 06801600

RVT .25X.50 RH ST

$

$

Not available

12

Ariens 01206300

BLADE BRAKE

$

$

Not available

13

Ariens 02708900

MOWER BRAKE LEVER

$19.99

$

Usually ships in 4-12 days

0

14

Ariens 02708800

BRAKE BRACKET

$

$

Not available

15

$

$

Not available

16

Ariens 02715300

REAR MTG BRACKET

$

$

Not available

17

Ariens 52701400

26 IN MOWER PAN W/ DECALS

Note: (W/DECALS)

$

$

Not available

18

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 08301000

SG-TENS .072X.51X5.31 WLD 25

$9.49

$

Usually ships in 4-12 days

0

20

Ariens 02509400

BRAKE CLIP

$38.99

$

Usually ships in 4-12 days

0

21

Ariens 07001000

BLT-SCRHFWH .38-16X.50 PL

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 00317200

SPINDLE HOUSING

$

$

Not available

26

Ariens 00316900

RETAINER HUB

$

$

Not available

27

Ariens 00317000

BLADE TRAY

$30.99

$

Usually ships in 4-12 days

0

28

Ariens 02722400

MOWER BLADE 26

$51.99

$

Usually ships in 4-12 days

0

29

Ariens 07211500

V-BELT, 4L-WRAPPED

$50.99

$

In Stock, only 3 left!

0

30

Ariens 03526700

SPINDLE SHAFT

$94.99

$

Usually ships in 4-12 days

0

31

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

32

Ariens 00341900

BEARING SLINGER

$22.99

$

In Stock, only 2 left!

0

33

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 11

0

34

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

35

Ariens 02520500

CLEVIS PIN
(Superseded to 03624200)

$51.99

$

In Stock, only 1 left!

0

36

Ariens 02520400

PAN CHUTE EXTENSION

$111.99

$

Usually ships in 4-12 days

0

37

Ariens 08307200

SG-TORS .095X.50X 1.0

$20.99

$

Usually ships in 4-12 days

0

38

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

39

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$5.99

$

In Stock, only 4 left!

0

44

Ariens 06407300

WSHR-FL-STL .406X.865X.094 PL

$

$

Not available

45

Ariens 02712400

PIVOT BRACKET

$

$

Not available

46

Ariens 02709300

PIN-CLEV .309X3.50 SP

$

$

Not available

47

Ariens 02708300

SWIVEL BRACKET

$22.99

$

Usually ships in 4-12 days

0

49

Ariens 02709500

HINGE PLATE
(Superseded to 02709551)

$27.99

$

In Stock, only 1 left!

0

51

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

52

Ariens 02712700

MOWER ENGAGEMENT LINK

$

$

Not available

53

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

54

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

55

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

56

Ariens 02510000

CLEVIS PIN
(Superseded to 00212300)

$3.49

$

In Stock, only 3 left!

0

57

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

58

Ariens 02712600

MOWER BRAKE LINK

$

$

Not available

59

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$0.99

$

In Stock, Qty 20+

0

60

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

61

Ariens 02736600

ADJUSTING ARM

$

$

Not available

62

Ariens 05904800

@BLT-HEX .38-16X.88 PL GR2

$2.99

$

Usually ships in 4-12 days

0

63

Ariens 05921700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

64

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0
