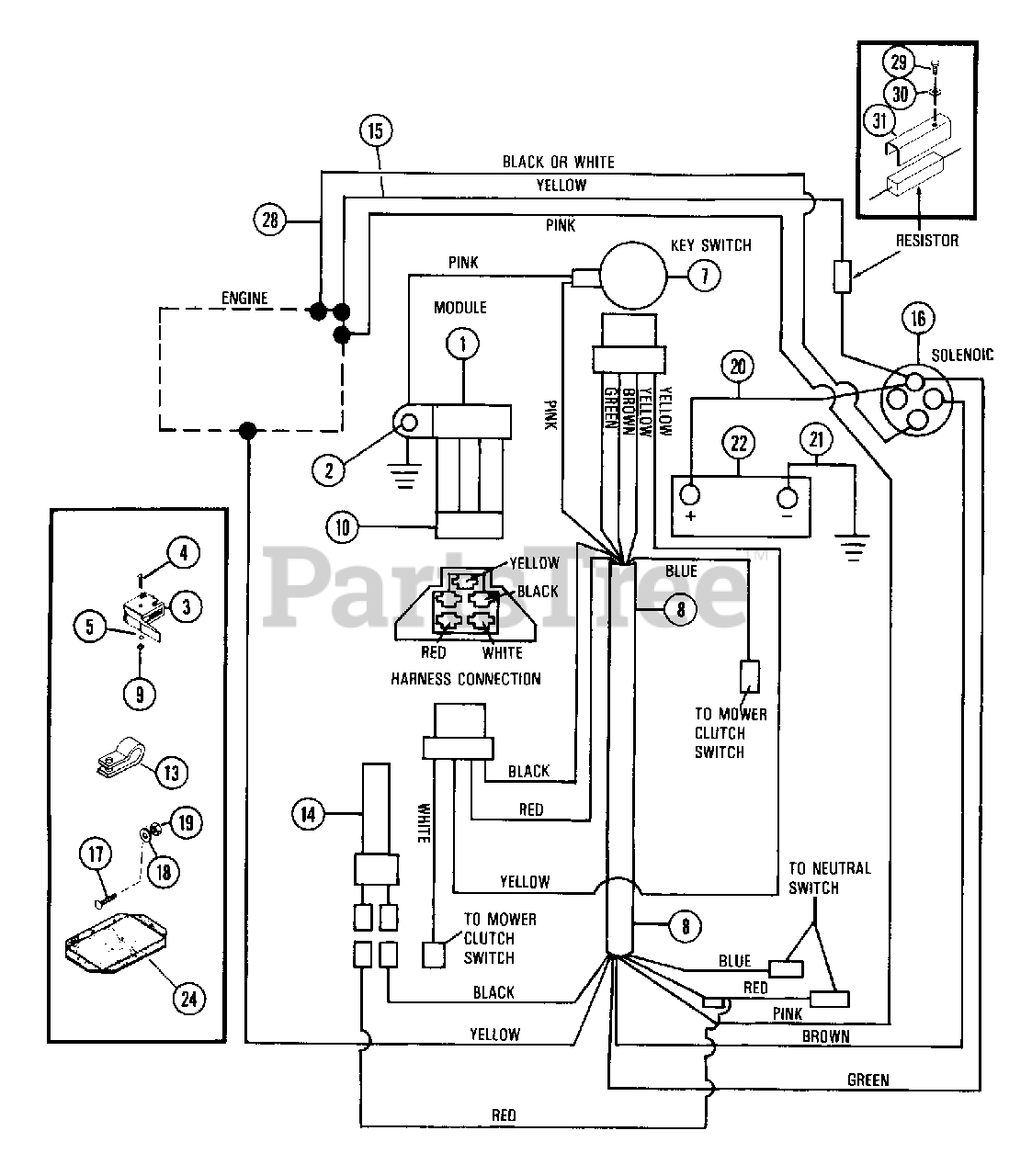

927011 (RM 830 E) - Ariens 30" Rear-Engine Rider, 8hp Briggs & Stratton (SN: 000101 & Above) Riding Mowers With Electric Start Parts Diagram

30" Rear-Engine Rider, 8hp Briggs & Stratton

Riding Mowers With Electric Start Parts Diagram

  • Title

1

Ariens 02724000

MODULE
(Superseded to 52707700)

$

$

Not available

2

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

3

Ariens 02707800

SWITCH INTERLOCK

$17.99

$

Usually ships in 4-12 days

0

4

Ariens 06105000

SCR-MCH 10-24X1.00 SLRH PL

$

$

Not available

5

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.49

$

Usually ships in 4-12 days

0

6

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

Note: SPECIAL, ALL UNITS

$7.99

$

Usually ships in 4-12 days

0

7

Ariens 62500900

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, Qty 5

0

8

Ariens 02723900

WIRE HARNESS

$

$

Not available

9

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

10

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

$

$

Not available

11

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

12

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06908300

CLIP

$

$

Not available

14

Ariens 03171600

SWITCH SEAT

$

$

Not available

15

Ariens 02539400

CHARGING WIRE
(Superseded to 53600600)

$

$

Not available

16

Ariens 02913200

SOLENOID,STARTER SWITCH
(Superseded to 53504000)

$73.99

$

Usually ships in 4-12 days

0

17

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

19

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

20

Ariens 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

Note: (SOLENOID TO BATTERY) ALL ELEC. START

$14.99

$

In Stock, only 1 left!

0

21

Ariens 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

$14.99

$

In Stock, only 1 left!

0

22

Ariens 02512900

BATTERY
(Superseded to 52708000)

$

$

Not available

23

Ariens 02719300

BATTERY TRAY
(Superseded to 52708000)

$

$

Not available

24

Ariens 02530700

RUBBER PAD

$

$

Not available

25

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

26

Ariens 02515200

HOOK
(Superseded to 03640900)

$38.99

$

Usually ships in 4-12 days

0

27

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 03506400

GROUND CABLE
(Superseded to 03557500)

Note: (SOLENOID TO STARTER)

$

$

Not available

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (CABLE TO SOLENOID)

$0.99

$

In Stock, Qty 20+

0

Ariens 06510000

NUT-JAM .312-24 PL
(Superseded to 06536700)

Note: (CABLE TO SOLENOID)

$0.99

$

In Stock, Qty 13

0

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

Note: (WIRING TO SOLENOID)

$1.49

$

Usually ships in 4-12 days

0

Ariens 06502600

NUT 10-32 PL

Note: (WIRING TO SOLENOID)

$

$

Not available

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

Note: (SOLENOID MOUNTING)

$0.99

$

In Stock, Qty 13

0

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

Note: (SOLENOID MOUNTING)

$

$

Not available

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

Note: (SOLENOID MOUNTING)

$0.99

$

In Stock, only 3 left!

0

Ariens 06204200

BLT-RDHDSQNK .25-20X.75 GR5PL
(Superseded to 06219900)

Note: (SOLENOID MOUNTING)

$0.99

$

In Stock, Qty 13

0
