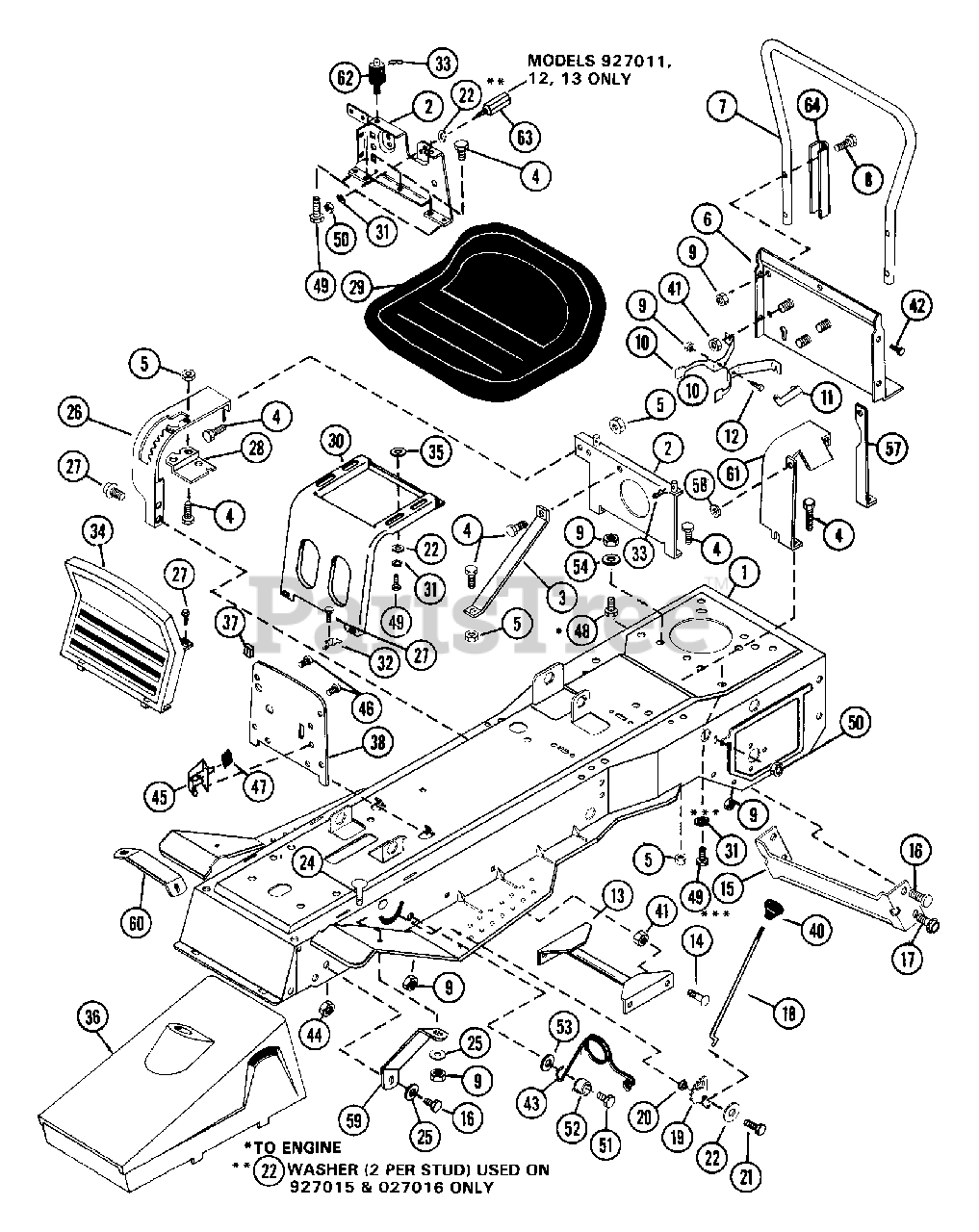

927010 (RM 830) - Ariens 30" Rear-Engine Rider, 8hp Tecumseh (SN: 000101 & Above) Frame Assembly Parts Diagram

30" Rear-Engine Rider, 8hp Tecumseh

Frame Assembly Parts Diagram

  • Title

1

Ariens 02700100

FRAME
(Superseded to 52700200)

$

$

Not available

2

Ariens 02700300

SEAT LEG

Note: (Used Only On Model(s): 927003,9,10).

$

$

Not available

2

Ariens 02717800

SEAT LEG

Note: (Used Only On Model(s): 927011,12,13,15,16).

$

$

Not available

3

Ariens 02700400

BRACE

Note: (Used Only On Model(s): 927003,9,10,12,15,16).

$

$

Not available

4

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (Used Only On Model(s): 927010,12,15).

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (Used Only On Model(s): 927003,9).

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (Used Only On Model(s): 927011,13,16).

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 02701100

BACK COVER

$

$

Not available

7

Ariens 02701200

TUBE
(Superseded to 02701251)

$41.99

$

Usually ships in 4-12 days

0

8

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

9

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 02504400

BELT FINGER

$17.99

$

Usually ships in 4-12 days

0

11

Ariens 02509200

BELT FINGER BRACE

$32.99

$

Usually ships in 4-12 days

0

12

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 02705200

FRAME BRACE

$

$

Not available

14

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 02717700

FRAME BRACE

$

$

Not available

16

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

17

Ariens 07402900

SCR-TAP .312-18X1.50 HWH PL TR
(Superseded to 07415300)

$

$

Not available

18

Ariens 02706000

PARKING BRAKE ROD

$

$

Not available

19

Ariens 02519400

BRAKE LATCH

$14.99

$

Usually ships in 4-12 days

0

20

Ariens 02519500

SPACER -SHLD .344X.500X.469

$

$

Not available

21

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

25

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

26

Ariens 02707000

QUADRANT

Note: (Used Only On Model(s): 927003,9).

$71.99

$

Usually ships in 4-12 days

0

27

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

28

Ariens 02713400

BRACKET NEUTRAL SWITCH

$

$

Not available

29

Ariens 02723500

SEAT
(Superseded to 01235600)

$

$

Not available

30

Ariens 02707300

SEAT BRACKET
(Superseded to 52708300)

$

$

Not available

31

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 02535300

CLAMP

$

$

Not available

33

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 62707500

GRILLE INSERT & SHELL ASSEMBLY
(Superseded to 02739500)

$

$

Not available

35

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

Note: (Used Only On Model(s): 927011,13,16).

$7.99

$

In Stock, Qty 8

0

36

Ariens 02708000

COWL

$

$

Not available

37

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

38

Ariens 02724200

DASH PANEL W/SILK SCREEN

Note: (Used Only On Model(s): 927011,13,16).

$

$

Not available

38

Ariens 02724100

DASH PANEL W/SILK SCREEN

Note: (Used Only On Model(s): 927003,9,10,12,15).

$

$

Not available

39

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

$2.49

$

Usually ships in 4-12 days

0

40

Ariens 07503500

KNOB

$

$

Not available

41

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

43

Ariens 08317900

SG-TORS .125X1.0X1.75

$

$

Not available

44

Ariens 06509000

NUT-LK-TWIN .312-18 PL

Note: (Used Only On Model(s): 927003,9).

$

$

Not available

45

Ariens 06908700

THROTTLE CONTROL

Note: (Used Only On Model(s): 927009,10,12,15,16).

$59.99

$

Usually ships in 4-12 days

0

45

Ariens 06907400

THROTTLE CONTROL

Note: (Used Only On Model(s): 927003).

$

$

Not available

45

Ariens 06912700

THROTTLE CONTROL

Note: (Used Only On Model(s): 927011,13).

$59.99

$

Usually ships in 4-12 days

0

46

Ariens 07406400

SCR-TAP 10-12X.50 CRPH PL A BL

$3.49

$

Usually ships in 4-12 days

0

47

Ariens 07501900

KNOB

$

$

Not available

48

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

49

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

51

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

52

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

53

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$2.49

$

In Stock, only 2 left!

0

54

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

56

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

57

Ariens 02714100

BRACE

$

$

Not available

58

Ariens 07502600

GROMMET, .31 ID

$

$

Not available

59

Ariens 02706100

FENDER BRACE

Note: (Used Only On Model(s): 927003,9,10).

$

$

Not available

60

FENDER BRACE, R.H.

Note: (Used Only On Model(s): 927003,9,10).

$

$

Not available

61

Ariens 02700500

SHIELD

$

$

Not available

62

Ariens 02717900

ISOLATION MOUNT

Note: (Used Only On Model(s): 927011,12,13,15,16).

$21.99

$

In Stock, only 1 left!

0

63

Ariens 02718000

STUD SPACER

Note: (Used Only On Model(s): 927011,13).

$

$

Not available

64

Ariens 02722700

BRACE
(Superseded to 02722751)

$14.99

$

Usually ships in 4-12 days

0
