927003 (RM 626) - Ariens 26" Rear-Engine Rider, 6hp Tecumseh (SN: 000101 & Above) Linkage Assembly Parts Diagram

26" Rear-Engine Rider, 6hp Tecumseh

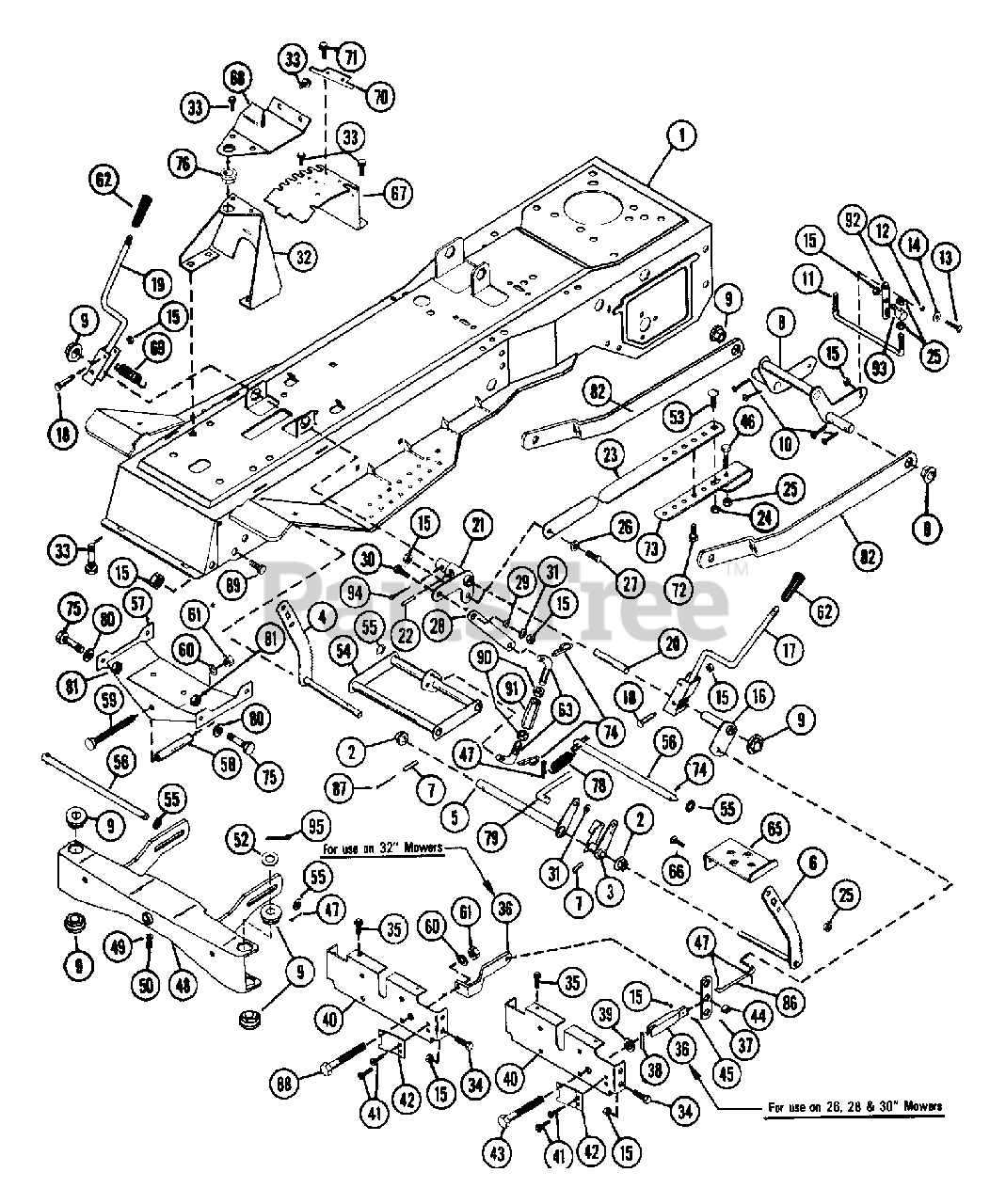

Linkage Assembly Parts Diagram

  • Title

1

Ariens 02700100

FRAME
(Superseded to 52700200)

$

$

Not available

2

Ariens 02505500

FLANGE BUSHING

$

$

Not available

3

Ariens 02713800

CLUTCH ARM

$14.99

$

Usually ships in 4-12 days

0

4

Ariens 02703400

BRAKE PEDAL ARM

$

$

Not available

5

Ariens 02703300

BRAKE ARM

$

$

Not available

6

Ariens 02703200

CLUTCH PEDAL ARM

$22.99

$

Usually ships in 4-12 days

0

7

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

8

Ariens 02717600

REAR MOWER HANGER

$

$

Not available

9

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

10

Ariens 06700200

PIN-COTR .09X1.0 PL

Note: (Used Only On Model(s): 927003,9,10,11).

$0.99

$

Usually ships in 4-12 days

0

10

Ariens 06700200

PIN-COTR .09X1.0 PL

Note: (Used Only On Model(s): 927012,13,15,16).

$0.99

$

Usually ships in 4-12 days

0

11

Ariens 02729000

ROD - REAR LIFT

$61.99

$

Usually ships in 4-12 days

0

12

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

13

Ariens 05920900

SCR-SKH .31-18X.75 BTNHD YWZC

$3.99

$

In Stock, only 2 left!

0

14

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$2.49

$

In Stock, only 2 left!

0

15

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 02704400

CLUTCH ARM

$

$

Not available

17

Ariens 02704500

MOWER CLUTCH LEVER
(Superseded to 02758351)

$

$

Not available

18

Ariens 02712900

SHOULDER BOLT .436 X .912

$9.49

$

In Stock, only 1 left!

0

19

Ariens 02704700

MOWER HEIGHT LEVER
(Superseded to 02758251)

$11.99

$

Usually ships in 4-12 days

0

20

Ariens 02715700

SHAFT

$

$

Not available

21

Ariens 02715600

MOWER LIFT ARM

$

$

Not available

22

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

23

Ariens 02722200

LIFT STRAP

$

$

Not available

24

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 02519500

SPACER -SHLD .344X.500X.469

$

$

Not available

27

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 11

0

28

Ariens 02705100

STRAP

$

$

Not available

29

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

30

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

32

Ariens 02707400

STEERING SUPPORT

$

$

Not available

33

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

34

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

35

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 02716300

ADJUSTMENT YOKE

Note: (Used Only On Model(s): 927003,9,10,11).

$

$

Not available

36

Ariens 02719500

FRONT ANCHOR

Note: (Used Only On Model(s): 927012,13,15,16).

$5.99

$

Usually ships in 4-12 days

0

37

Ariens 02705700

CLUTCH LINK

Note: (Used Only On Model(s): 927003,9,10,11).

$22.99

$

Usually ships in 4-12 days

0

37

Ariens 02719600

CLUTCH LINK

Note: (Used Only On Model(s): 927012,13,15,16).

$5.99

$

Usually ships in 4-12 days

0

38

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

Note: (Used Only On Model(s): 927003,9,10,11).

$2.49

$

In Stock, only 2 left!

0

39

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

Note: (Used Only On Model(s): 927003,9,10,11).

$0.99

$

In Stock, Qty 20+

0

40

Ariens 02709700

MOWER ADJUSTMENT BRACKET

$

$

Not available

41

Ariens 07402100

SCR-TAP 10-24X.25 CRSLPH PL 1A
(Superseded to 07415500)

Note: (Used Only On Model(s): 927003,9,10,11).

$

$

Not available

42

Ariens 02507200

LOCK SPRING

Note: (Used Only On Model(s): 927003,9,10,11).

$

$

Not available

43

Ariens 02507400

CAP SCREW

Note: (Used Only On Model(s): 927003,9,10,11).

$

$

Not available

44

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

Note: (Used Only On Model(s): 927003,9,10,11).

$14.99

$

Usually ships in 4-12 days

0

44

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

Note: (Used Only On Model(s): 927012,13,15,16).

$5.99

$

Usually ships in 4-12 days

0

45

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

46

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

$1.49

$

In Stock, Qty 15

0

47

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

48

Ariens 02506000

AXLE
(Superseded to 02729200)

$54.99

$

Usually ships in 4-12 days

0

49

Ariens 06409400

WSHR-FL-STL .265X.500X.087 PL
(Superseded to 06439500)

$1.49

$

Usually ships in 4-12 days

0

50

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

52

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, Qty 13

0

53

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

54

Ariens 02718800

FRONT LIFT ARM

Note: (Used Only On Model(s): 927003,9,10,11).

$

$

Not available

54

Ariens 02719700

FRONT LIFT ARM

Note: (Used Only On Model(s): 927012,13,15,16).

$

$

Not available

55

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

56

Ariens 02508600

HANGER PIN

$64.99

$

Usually ships in 4-12 days

0

57

Ariens 02706600

AXLE BRACKET

$

$

Not available

58

Ariens 02713200

TUBE AXLE PIVOT

$

$

Not available

59

Ariens 05905100

BLT-HEX .50-13X4.00 PL GR2
(Superseded to 05961900)

$3.99

$

Usually ships in 4-12 days

0

60

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

61

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

Usually ships in 4-12 days

0

62

Ariens 07504900

HANDLE
(Superseded to 07514500)

$23.99

$

Usually ships in 4-12 days

0

63

Ariens 02728900

LINK - FRONT LIFT

$54.99

$

In Stock, only 2 left!

0

65

Ariens 02706900

PEDAL

$

$

Not available

66

Ariens 06201900

BLT-RDHDSQNK .38-16X.62 GR5 PL
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

67

Ariens 02707500

QUADRANT
(Superseded to 02748800)

$

$

Not available

68

Ariens 02707600

BRACE

$5.99

$

Usually ships in 4-12 days

0

69

Ariens 08309900

SG-TENS .092X.69X1.75 WLD 54

$

$

Not available

70

Ariens 02719800

STOP

$

$

Not available

71

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

72

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

73

Ariens 02722300

ADJUSTMENT STRAP

$

$

Not available

74

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

75

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

76

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

77

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

Note: (Used Only On Model(s): 927012,13,15,16).

$3.99

$

Usually ships in 4-12 days

0

78

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

In Stock, only 1 left!

0

79

Ariens 02703700

BRAKE ROD

$

$

Not available

80

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

81

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

82

Ariens 02719400

POSITIONING ARM

Note: (Used Only On Model(s): 927012,13,15,16).

$

$

Not available

83

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

Note: (Used Only On Model(s): 927012,13,15,16).

$2.99

$

In Stock, only 1 left!

0

85

Ariens 05904200

BLT-HEX .50-13X1.25 PL GR2
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

Ariens 05904200

BLT-HEX .50-13X1.25 PL GR2
(Superseded to 05958900)

Note: (Used Only On Model(s): 927012,13,15,16).

$3.49

$

In Stock, only 1 left!

0

86

Ariens 02706800

LINK
(Superseded to 52705000)

$

$

Not available

87

Ariens 06702300

PIN-COTR .09X1.87 PL

$

$

Not available

88

Ariens 05904200

BLT-HEX .50-13X1.25 PL GR2
(Superseded to 05958900)

Note: (Used Only On Model(s): 927012,13,15,16).

$3.49

$

In Stock, only 1 left!

0

89

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

90

Ariens 06514800

NUT-LK .375-16

$

$

Not available

91

Ariens 06514700

NUT-CUPLG .375-16 PL

$

$

Not available

92

Ariens 02728800

LINK - REAR LIFT

$7.99

$

Usually ships in 4-12 days

0

93

Ariens 02720600

ROD PIVOT

$

$

Not available

94

Ariens 06701200

PIN-COTR .18X1.50 PL
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

95

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0
