927 SB (961930044-00) - Husqvarna 27" Snow Blower (2008-11) Auger Housing / Impeller Assembly Parts Diagram

27" Snow Blower

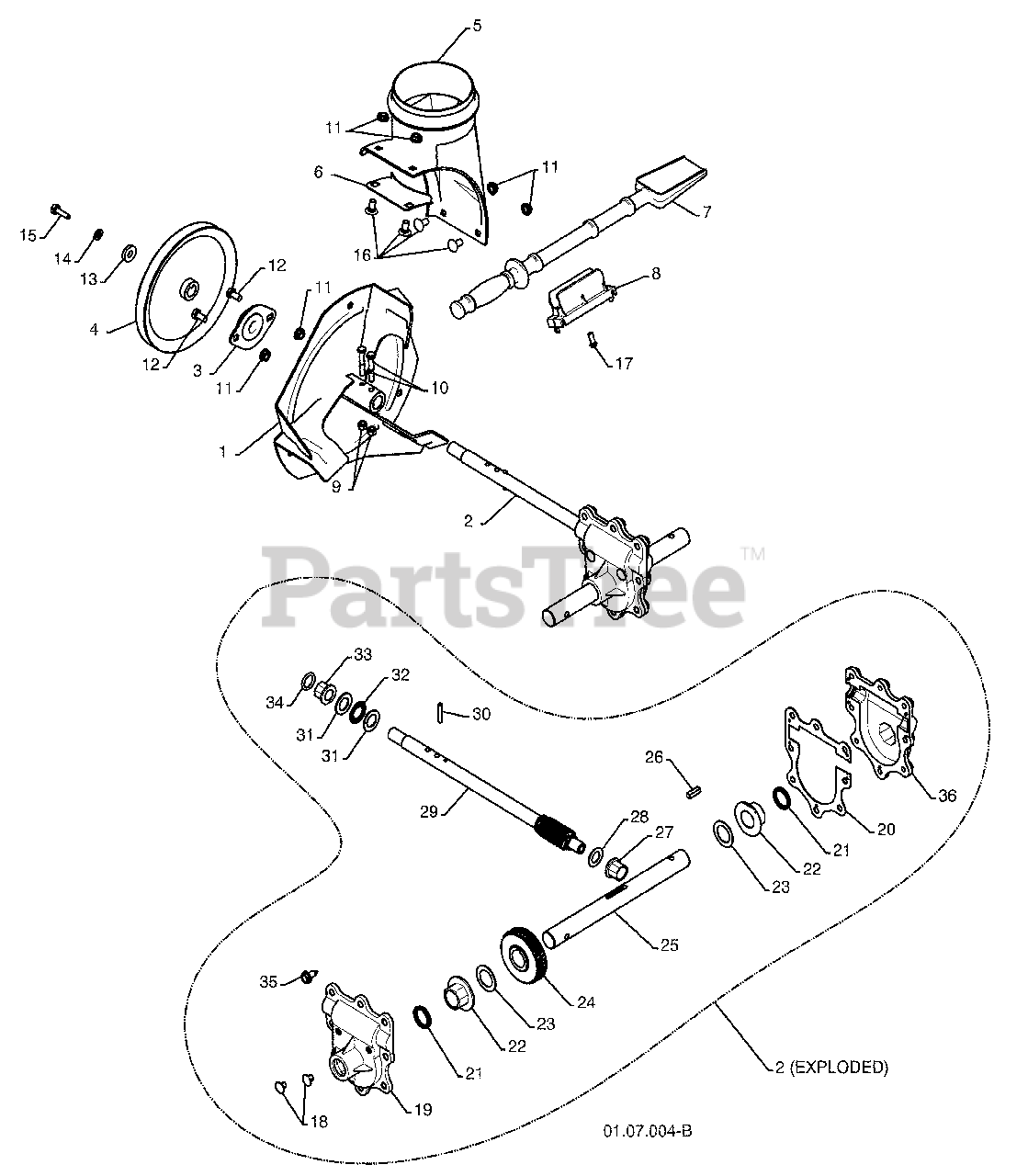

Auger Housing / Impeller Assembly Parts Diagram

  • Title
1

Husqvarna 532184105

IMPELLER
(Superseded to 532175321)

$78.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532196710

GEARBOX ASSEMBLY
(Superseded to 598831601)

$265.99

$

In Stock, only 1 left!

0

$28.99

$

In Stock, only 4 left!

0

4

Husqvarna 532191079

IMPELLER PULLEY
(Superseded to 532427071)

$

$

Not available

5

Husqvarna 532175322

DISCHARGE BASE
(Superseded to 585056901)

$11.99

$

In Stock, Qty 6

0

6

Husqvarna 532184095

CORNER BRACKET
(Superseded to 597433002)

$4.99

$

In Stock, Qty 9

0

7

Husqvarna 532192199

CLEAN OUT TOOL

$34.99

$

In Stock, only 2 left!

0

8

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 873800400

NUT 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 874780426

SCREW 1/4-20 X .625
(Superseded to 596322101)

$3.99

$

In Stock, Qty 9

0

11

Husqvarna 532155377

NUT 5/16-18

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532163183

SCREW 5/16-18 X .625

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040500

LOCKWASHER 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

15

Husqvarna 874940516

SCREW 5/16-18 X 1.00

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532180355

CARRIAGE BOLT

$7.49

$

In Stock, Qty 13

0

17

Husqvarna 532194189

SCREW 13-16 X .625

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 532407760

PLUG
(Superseded to 532086447)

$

$

Not available

19

Husqvarna 532407761

GEARBOX COVER RH
(Superseded to 532174688)

$

$

Not available

20

Husqvarna 532407766

GASKET
(Superseded to 532175311)

$9.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532407770

SEAL
(Superseded to 532174698)

$

$

Not available

22

Husqvarna 532407762

BEARING
(Superseded to 532174701)

$

$

Not available

23

Husqvarna 532174697

THRUST WASHER 1.00
(Superseded to 532007396)

$

$

Not available

24

Husqvarna 532407763

WORM GEAR
(Superseded to 598831601)

$265.99

$

In Stock, only 1 left!

0

25

Husqvarna 532407764

AUGER SHAFT
(Superseded to 532174657)

$68.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532189282

SQUARE KEY

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 532407758

BEARING
(Superseded to 532174686)

$

$

Not available

28

Husqvarna 532174683

THRUST WASHER

$7.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532407757

IMPELLER SHAFT

$102.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532184205

ROLL PIN
(Superseded to 532007836)

$4.99

$

In Stock, Qty 7

0

31

Husqvarna 532174681

THRUST WASHER

$14.99

$

In Stock, only 3 left!

0

32

Husqvarna 532174684

THRUST BEARING

$9.99

$

In Stock, only 2 left!

0

33

$9.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 2 left!

0

35

Husqvarna 532407767

SCREW 5/16-18 X .750
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

36

Husqvarna 532407765

GEARBOX COVER LH

$26.99

$

Usually ships in 3-10 days

0
