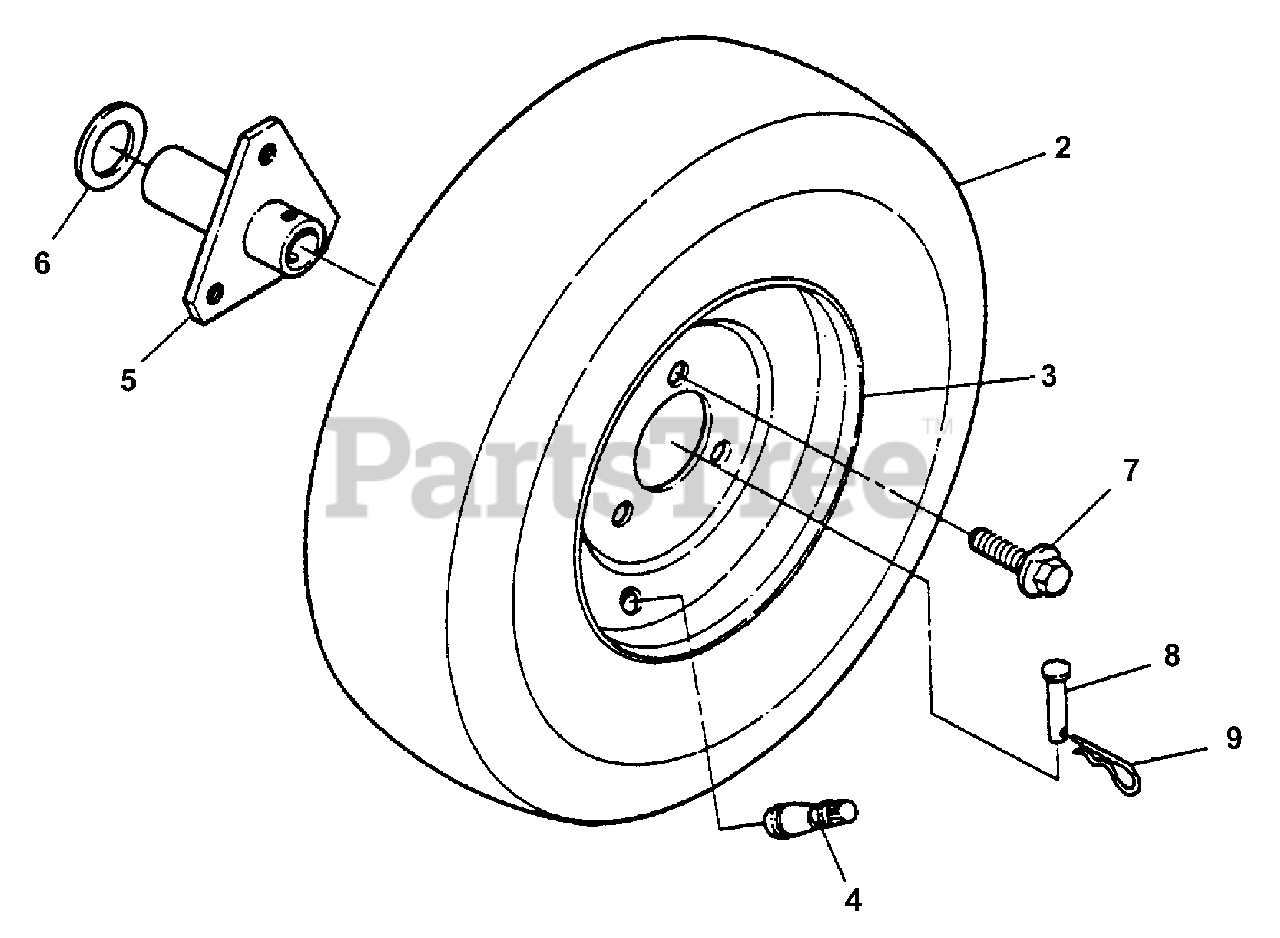

9266 - Snapper 26" Snow Thrower, 9hp Wheels, Hub Parts Diagram

26" Snow Thrower, 9hp

Wheels, Hub Parts Diagram

  • Title

Snapper 7051803

ASSEMBLY, Wheel & Tire 16x4.80x8 (Snow Hog)

Note: (8246, 9266E, & E9266 Models) (Includes Items 7023495, 7017145, 7012234)

$

$

Not available

Snapper 7051871

ASSEMBLY, Wheel & Tire 16x6.50x8 (Snow Hog)
(Superseded to 7051871YP)

Note: (11306 & E110306 Models) (Includes Items 7023672, 7012163, 7012234)

$

$

Not available

2

Snapper 7023495

TIRE, 16 x 4.80 x 8 (Snow Hog)

$

$

Not available

2

Snapper 7023672

TIRE, 16 x 6.50 x 8 (Snow Hog)

$

$

Currently unavailable

3

Snapper 7017145

WHEEL/RIM, 4.80/4.06x8 (3 hole)
(Superseded to 7017145YP)

Note: Was 12162

$134.99

$

Usually ships in 2-12 days

0

3

Snapper 7012163

WHEEL/RIM, 5.375x8 (3 hole)
(Superseded to 7012163YP)

$121.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Snap-In
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7040464

HUB, Wheel (weldment)

$

$

Not available

6

Snapper 7010935

WASHER, 3/4 x 1-1/8" Thrust
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091502

BOLT, 1/2-20 x 3/4" Hex Head Lug (Nyloc) Grade 5
(Superseded to 703431)

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

Note: Was 12407

$4.49

$

In Stock, only 3 left!

0

9

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0
