9266 - Snapper 26" Snow Thrower, 9hp Handles, Controls (Part 2) Parts Diagram

26" Snow Thrower, 9hp

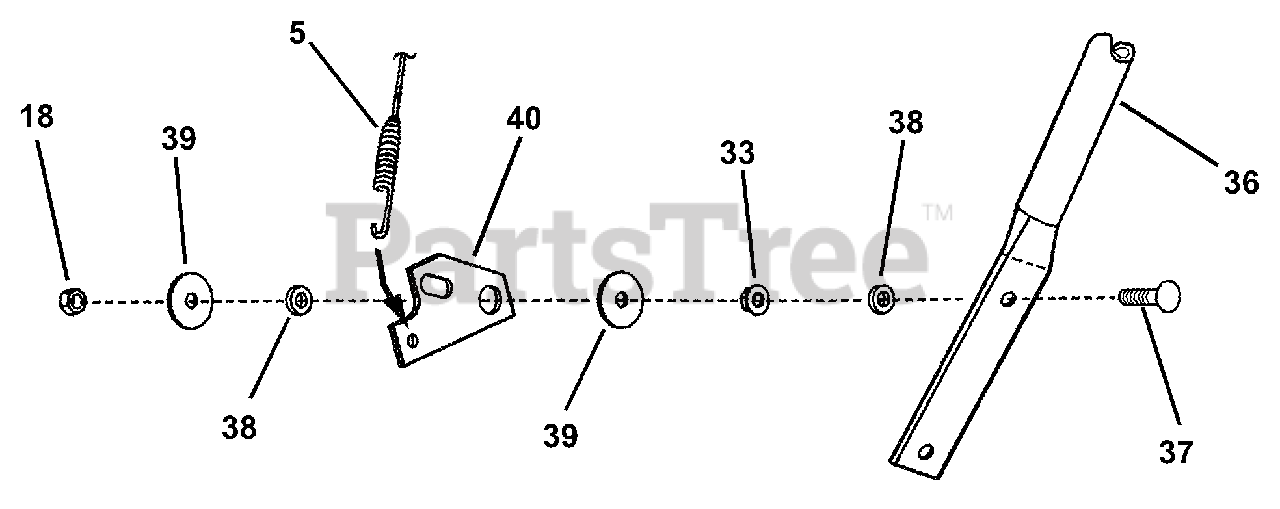

Handles, Controls (Part 2) Parts Diagram

  • Title

5

Snapper 7028223

CABLE, Clutch
(Superseded to 7028223YP)

Note: (Includes Chain & Spring)

$21.99

$

In Stock, only 1 left!

0

18

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, Grade B
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 19

0

33

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

36

Snapper 7074297

HANDLE BAR, Lower
(Superseded to 7074297YP)

$113.99

$

Usually ships in 2-12 days

0

37

Snapper 7091612

BOLT, 5/16-18 x 1-1/2", Square Neck Carriage, Grade 5
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

38

Snapper 7013849

SPACER, 5/16"
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

39

Snapper 7016314

WASHER, 5/16" Flat
(Superseded to 7016314YP)

$5.49

$

In Stock, only 2 left!

0

40

Snapper 7032910

LEVER, Clutch
(Superseded to 7032910YP)

$19.99

$

Usually ships in 2-12 days

0
