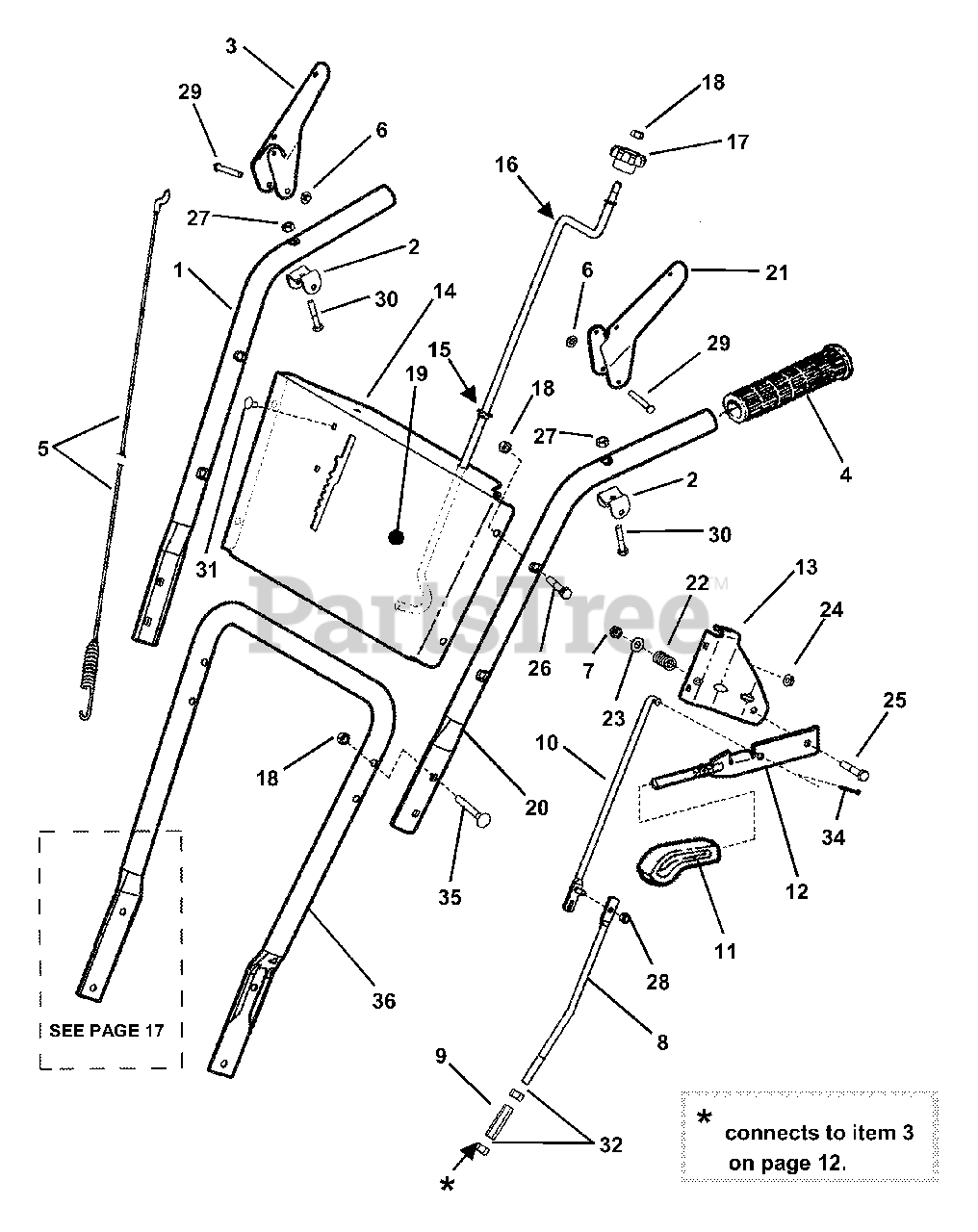

9266 - Snapper 26" Snow Thrower, 9hp Handles, Controls (Part 1) Parts Diagram

26" Snow Thrower, 9hp

Handles, Controls (Part 1) Parts Diagram

  • Title

1

Snapper 7074294

BAR, Right Side Handle
(Superseded to 7074294YP)

$23.99

$

Usually ships in 2-12 days

0

2

Snapper 7032921

BRACKET, Handle
(Superseded to 7032921YP)

$11.99

$

Usually ships in 2-12 days

0

3

Snapper 7032908

HANDLE, Right Side

$

$

Not available

4

Snapper 7011870

GRIP, Handle
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

5

Snapper 7028223

CABLE, Clutch
(Superseded to 7028223YP)

Note: (Includes Chain & Spring)

$21.99

$

In Stock, only 1 left!

0

6

Snapper 7091020

NUT, 1/4" Push
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7091606

NUT, 5/16-24 Hex Center Lock, Grade B
(Superseded to 703896)

Note: Was 91074

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7074313

ROD, Lower Shift
(Superseded to 7074313YP)

$

$

Not available

9

Snapper 7016304

CONNECTOR (3/8-16 thread)
(Superseded to 7016304YP)

$7.49

$

Usually ships in 2-12 days

0

10

Snapper 7074312

ROD, Upper Shift
(Superseded to 7074312YP)

$84.99

$

In Stock, only 1 left!

0

11

Snapper 7016334

KNOB, Shift Handle
(Superseded to 7016334YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7040660

HANDLE, Shift (weldment)

$

$

Not available

13

Snapper 7037962

BRACKET, Shift Lever
(Superseded to 7037962YP)

$20.99

$

Usually ships in 2-12 days

0

14

Snapper 7074488

PANEL, Control

$

$

Not available

15

Snapper 7012117

BUSHING
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 13

0

16

Snapper 7074309

CRANK, Chute

$

$

Not available

17

Snapper 7013901

KNOB, Chute Crank
(Superseded to 7013901YP)

$8.99

$

Usually ships in 2-12 days

0

18

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, Grade B
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 19

0

19

Snapper 7028214

DECAL, Control- 8/24

$

$

Not available

20

Snapper 7074295

BAR, Left Side Handle

$

$

Not available

21

Snapper 7032907

HANDLE, Left Side
(Superseded to 7032907YP)

$29.99

$

Usually ships in 2-12 days

0

22

Snapper 7023933

SPRING, Shift Lever
(Superseded to 7023933YP)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

24

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 6

0

25

Snapper 7090244

SCREW, 5/16-24 x 1-3/4" Hex Head Cap, Grade 2
(Superseded to 7091513YP)

$4.49

$

In Stock, Qty 14

0

26

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703906)

Note: Was 91066

$4.99

$

In Stock, only 4 left!

0

27

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

28

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7016297

PIN, 1/4 x 1-7/8" Clevis

$

$

Not available

30

Snapper 7091025

SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5
(Superseded to 7091025YP)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper 7091064

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 7091064YP)

$3.99

$

In Stock, only 3 left!

0

32

Snapper 7091302

NUT, 3/8-16 Hex, Grade B
(Superseded to 7091302SM)

Note: Was 91071

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 7091598

PIN, 1/8 x 1" Cotter
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0

35

Snapper 7090760

BOLT, 5/16-18 x 2", Square Neck Carriage, Grade 5

$

$

Not available

36

Snapper 7074297

HANDLE BAR, Lower
(Superseded to 7074297YP)

$113.99

$

Usually ships in 2-12 days

0
