926520 (PRO 32) - Ariens Hydro Pro Kraken 32" Snow Blower, Ariens AX 420cc EFI (SN: 000101 & Above) Handlebars Parts Diagram

Hydro Pro Kraken 32" Snow Blower, Ariens AX 420cc EFI

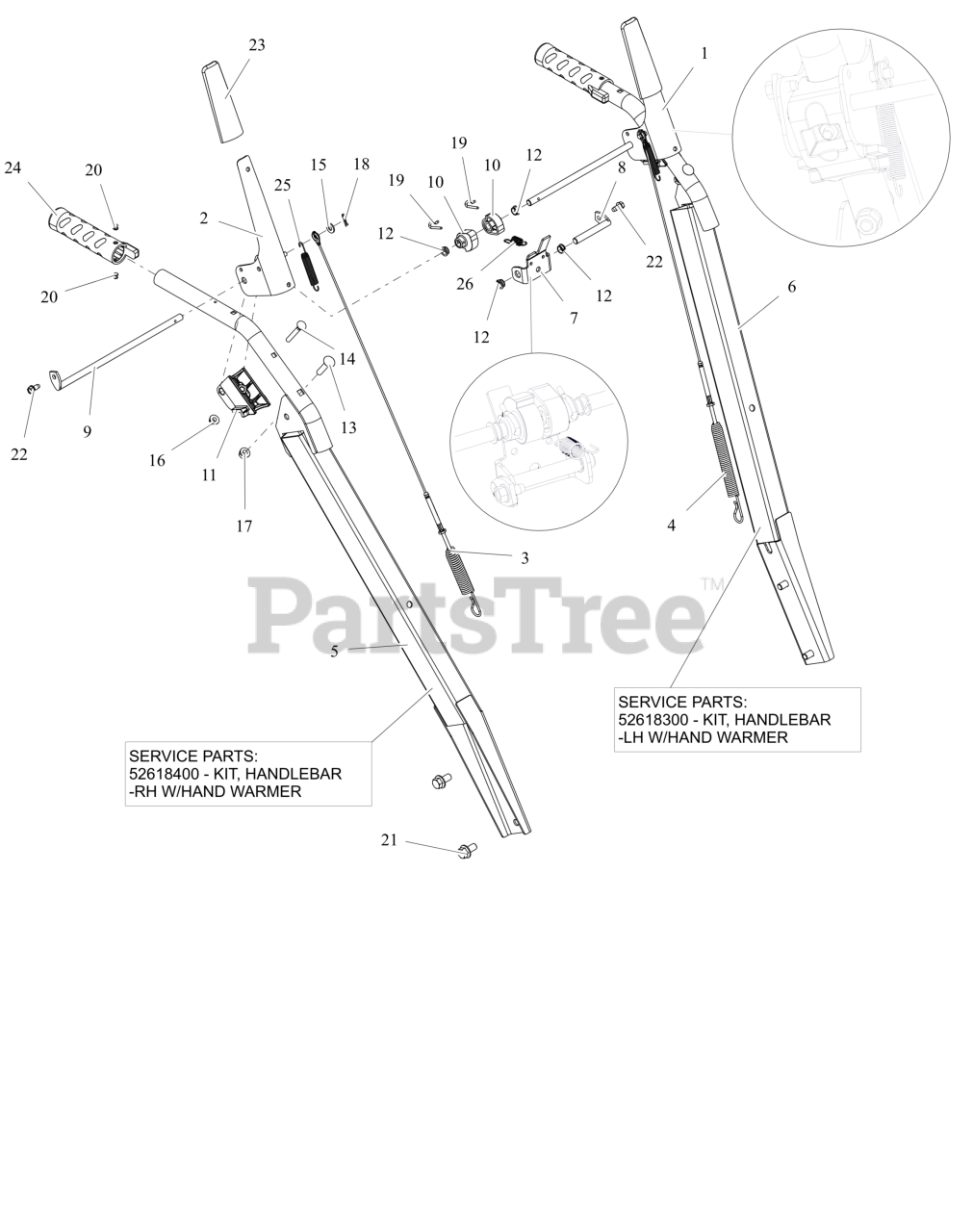

Handlebars Parts Diagram

  • Title
1

Ariens 04310451

LEVER, CLUTCH-LH

$28.99

$

In Stock, only 1 left!

0

2

Ariens 04310551

LEVER, CLUTCH-RH

$22.99

$

Usually ships in 4-12 days

0

3

Ariens 06900439

CABLE, AUGER (DELUXE & PRO)

$28.99

$

In Stock, Qty 20+

0

4

Ariens 06900502

CABLE, UPPER TRACTION

$31.99

$

In Stock, Qty 20+

0

5

Ariens 09448651

HANDLEBAR- ROBUST - RH LINEAR

$136.99

$

Usually ships in 4-12 days

0

5

Ariens 52618400

KIT, HB-RH W/WARM GRIP LINEAR

Note: Component Service Assembly

$232.99

$

Usually ships in 4-12 days

0

6

Ariens 09448751

HANDLEBAR- ROBUST - LH LINEAR

$136.99

$

Usually ships in 4-12 days

0

6

Ariens 52618300

KIT, HB-LH W/WARM GRIP LINEAR

Note: Component Service Assembly

$245.99

$

Usually ships in 4-12 days

0

7

Ariens 04320400

BRACKET, INTERLOCK ARM

$20.99

$

Usually ships in 4-12 days

0

8

Ariens 04320500

ROD, PIVOT - INTERLOCK

$19.99

$

In Stock, only 1 left!

0

9

Ariens 04320600

ROD, PADDLE MOUNT - PRO

$

$

Not available

10

Ariens 04322100

CAM, INTERLOCK

$3.99

$

In Stock, Qty 7

0

11

Ariens 05193600

BLOCK, CLUTCH PADDLE

$

$

Not available

12

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

13

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 19

0

14

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

In Stock, only 1 left!

0

15

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

In Stock, Qty 13

0

19

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

20

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$

$

Not available

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07500440

COVER, PADDLE
(Superseded to 07500533)

$

$

Not available

24

Ariens 07500513

GRIP, HANDLE - HEATED
(Superseded to 07500514)

$46.99

$

In Stock, only 2 left!

0

25

Ariens 08300527

SPRING, EXTENSION

$3.49

$

In Stock, Qty 12

0

26

Ariens 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, Qty 19

0
