926520 (PRO 32) - Ariens Hydro Pro Kraken 32" Snow Blower, Ariens AX 420cc EFI (SN: 000101 & Above) Dash (Continued) Parts Diagram

Hydro Pro Kraken 32" Snow Blower, Ariens AX 420cc EFI

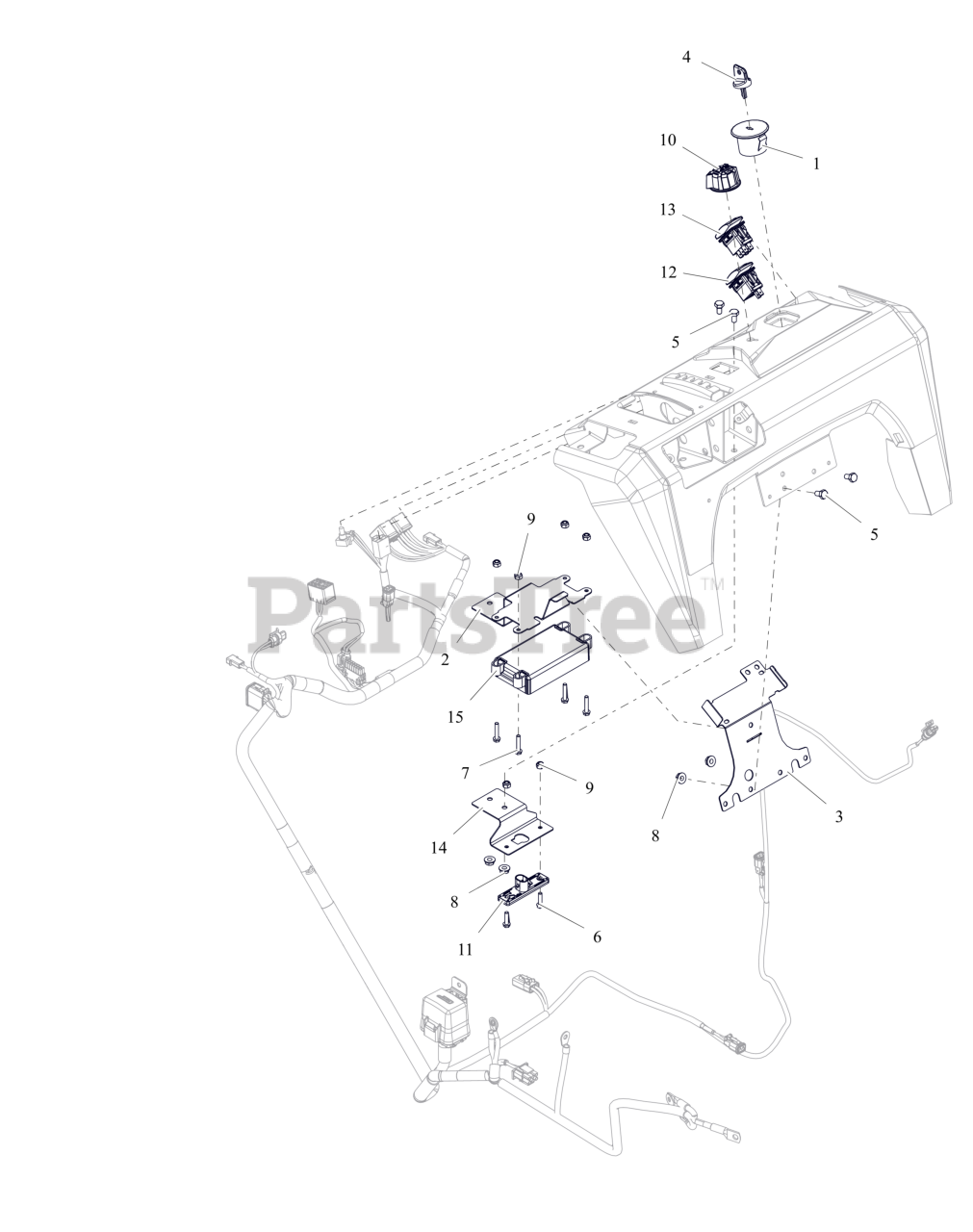

Dash (Continued) Parts Diagram

  • Title

1

Ariens 03290500

KEYSWITCH-IGNITION 3 POS

$18.99

$

In Stock, Qty 20+

0

2

Ariens 04996651

BRACKET, ENGINE EFI-LCT LOWER

$18.99

$

Usually ships in 4-12 days

0

3

Ariens 04996751

BRACKET, ENGINE EFI-LCT UPPER

$18.99

$

Usually ships in 4-12 days

0

4

Ariens 09395101

KEY- IGNITION

$7.99

$

Usually ships in 4-12 days

0

5

Ariens 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

In Stock, Qty 15

0

7

Ariens 05901838

BLT, HWH #10-24X1.00 ZCC

$1.99

$

Usually ships in 4-12 days

0

8

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 07500511

KNOB- CONTROL EFI

$9.99

$

Usually ships in 4-12 days

0

11

Ariens 09437800

LIGHT- LED - 3BAR HEADLIGHT

$34.99

$

Usually ships in 4-12 days

0

12

Ariens 09446200

SWITCH-ROCKER - SPST-ON/OFF

$34.99

$

Usually ships in 4-12 days

0

13

Ariens 09446300

SWITCH-ROCKER - DPDT-ON/OFF/ON

$51.99

$

Usually ships in 4-12 days

0

14

Ariens 09448859

BRKT- DASH UNDER LIGHT

$25.99

$

Usually ships in 4-12 days

0

15

Ariens 21577300

ECU, AX420 12V EFI

$258.99

$

Usually ships in 4-12 days

0
