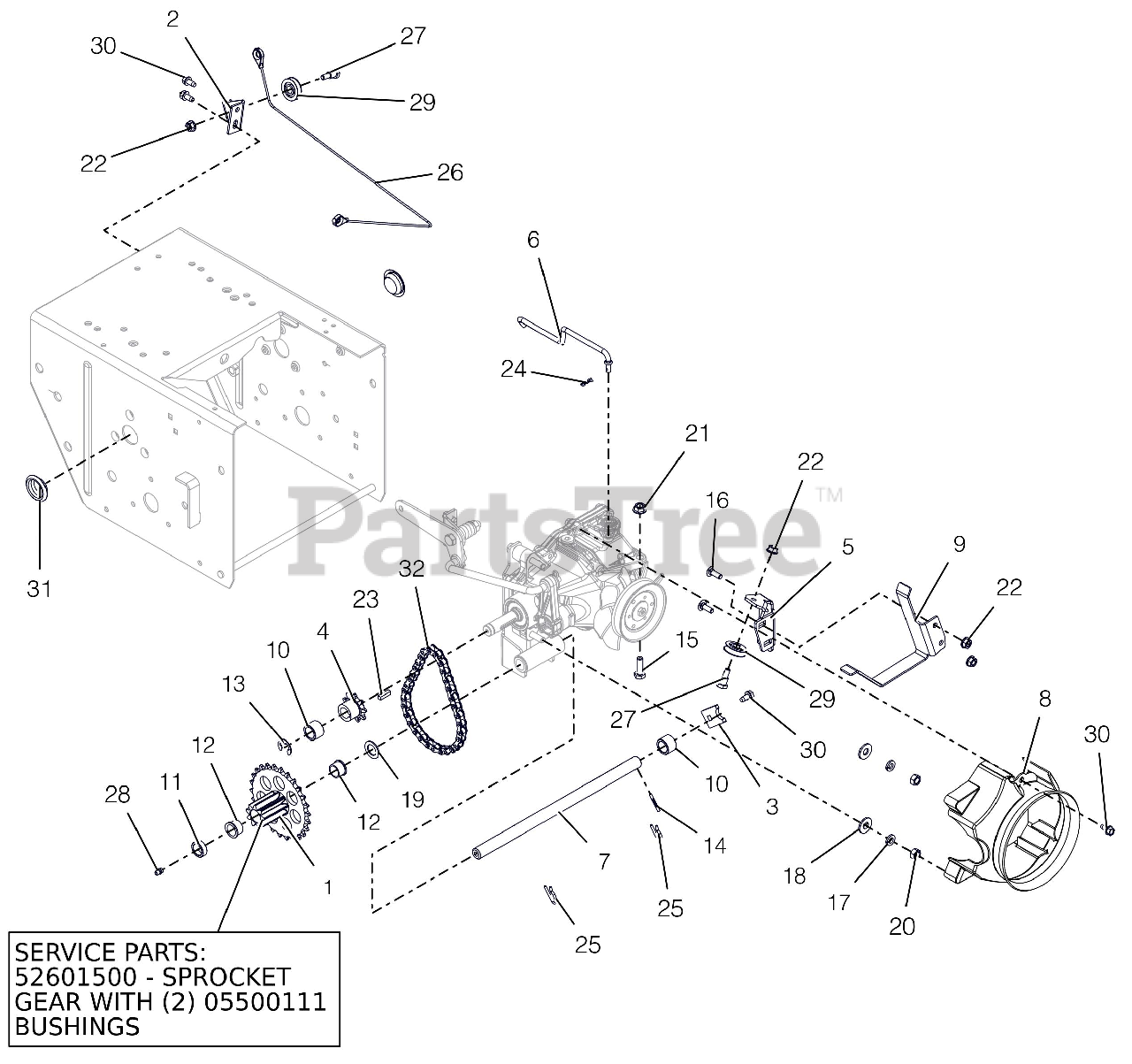

926518 (PB 36) - Ariens Hydro 36" Power Brush, Subaru (SN: 002000 & Above) Reduction Drive Parts Diagram

Hydro 36" Power Brush, Subaru

Reduction Drive Parts Diagram

  • Title

1

Ariens 00190600

PINION & SPROCKET

$34.99

$

Usually ships in 4-12 days

0

1

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

Note: SERVICE PART

$45.99

$

In Stock, Qty 11

0

1

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

Note: SERVICE PART

$1.49

$

In Stock, Qty 20+

0

2

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

3

Ariens 00503500

TAB, ANTI ROTATION

$4.99

$

In Stock, only 2 left!

0

4

Ariens 04375800

SPROCKET, PINION 9T W/KEY
(Superseded to 09478200)

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 04434351

BRACKET, CLUTCH CABLE

$

$

Not available

6

Ariens 04437067

ROD, HYDRO BYPASS
(Superseded to 09165100)

$

$

Not available

7

Ariens 04511800

SHAFT, PINION - HARDENED

$42.99

$

Usually ships in 4-12 days

0

8

Ariens 04513900

SHROUD, HYDROGEAR RT-310

$

$

Not available

9

Ariens 04519951

FINGER, BELT - FLAT

$

$

Not available

10

Ariens 05500029

SPACER, .635X.880X.611

$2.49

$

In Stock, only 3 left!

0

11

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, Qty 16

0

12

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$1.49

$

In Stock, Qty 20+

0

13

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05800205

@PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

17

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

21

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, Qty 11

0

24

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

25

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

26

Ariens 06900527

CABLE, TRACTION, HYDRO PRO

$20.99

$

Usually ships in 4-12 days

0

27

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

28

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 16

0

29

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

30

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 07500231

PLUG, HOLE - 1.125"

$

$

Not available

32

Ariens 02466200

CHAIN - #41, 32 PITCHES

$6.99

$

In Stock, Qty 10

0
