926518 (PB 36) - Ariens Hydro 36" Power Brush, Subaru (SN: 001000 - 001999) Brush Wheels And Battery Parts Diagram

Hydro 36" Power Brush, Subaru

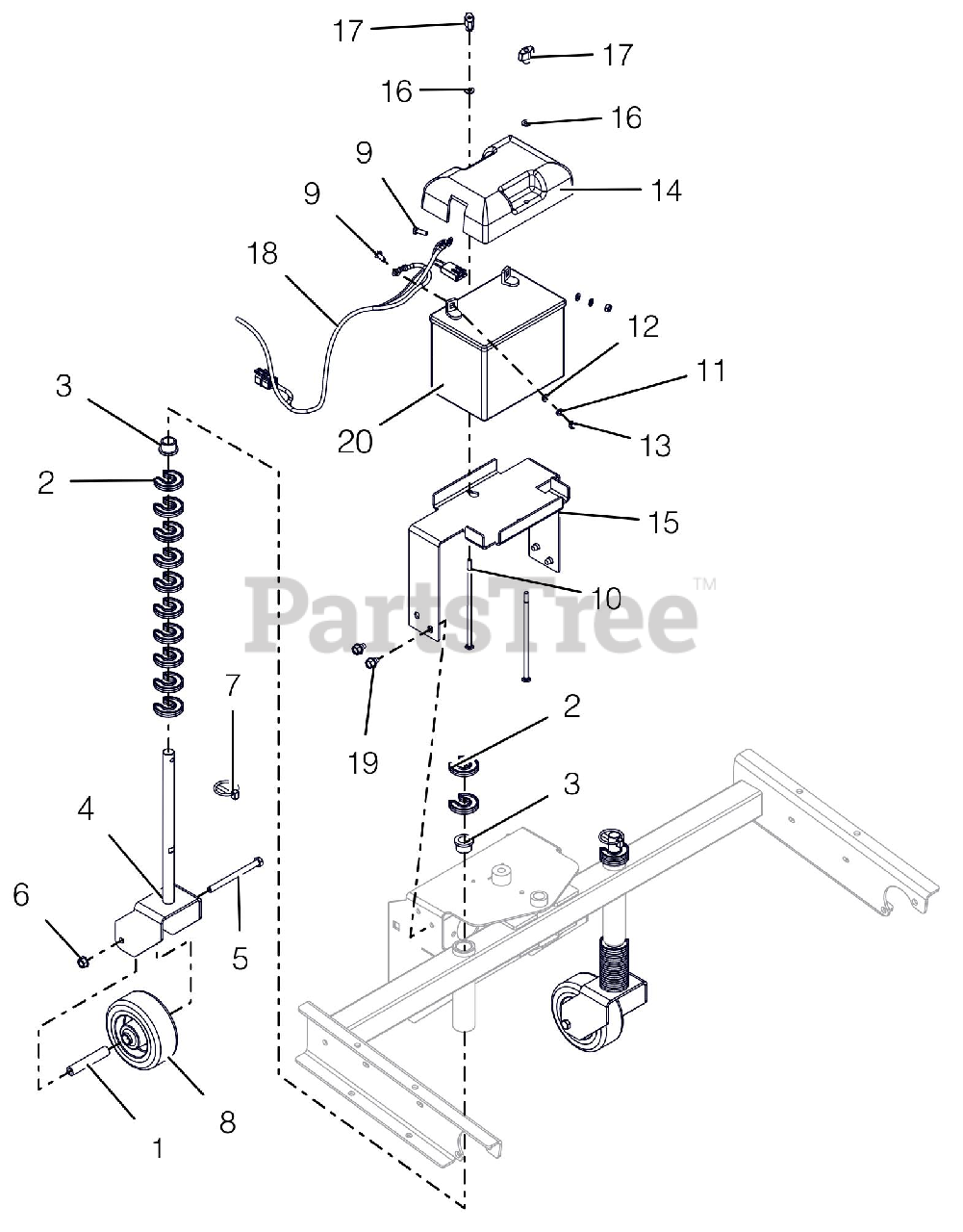

Brush Wheels And Battery Parts Diagram

  • Title

1

Ariens 00188000

SPACER, CASTER WHEEL

$

$

Not available

2

Ariens 03265100

CLIP-HOC FIXED

$3.49

$

In Stock, Qty 7

0

3

Ariens 03985500

BUSHING, FLANGE .75X.75X1.0

$5.99

$

In Stock, only 3 left!

0

4

Ariens 04848751

FORK, CASTER

$70.99

$

Usually ships in 4-12 days

0

5

Ariens 05970400

@BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$4.99

$

In Stock, only 2 left!

0

6

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06700004

PIN, 1/4X1-9/16 LYNCH
(Superseded to 06700226)

$3.99

$

In Stock, Qty 8

0

8

Ariens 07101101

WHEEL, CASTER - 5"OD

$39.99

$

Usually ships in 4-12 days

0

9

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$4.49

$

In Stock, only 2 left!

0

11

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

13

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

14

Ariens 04912900

COVER, BATTERY

$11.99

$

Usually ships in 4-12 days

0

15

Ariens 04655651

TRAY, BATTERY - POWER BRUSH

$64.99

$

Usually ships in 4-12 days

0

16

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07500104

KNOB, WING - .25-20 UNC

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 04974800

HARNESS,ELEC - ENGINE 12V

$

$

Not available

19

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available
