926518 (PB 36) - Ariens Hydro 36" Power Brush, Subaru (SN: 000101 - 000999) Engine And Frame Parts Diagram

Hydro 36" Power Brush, Subaru

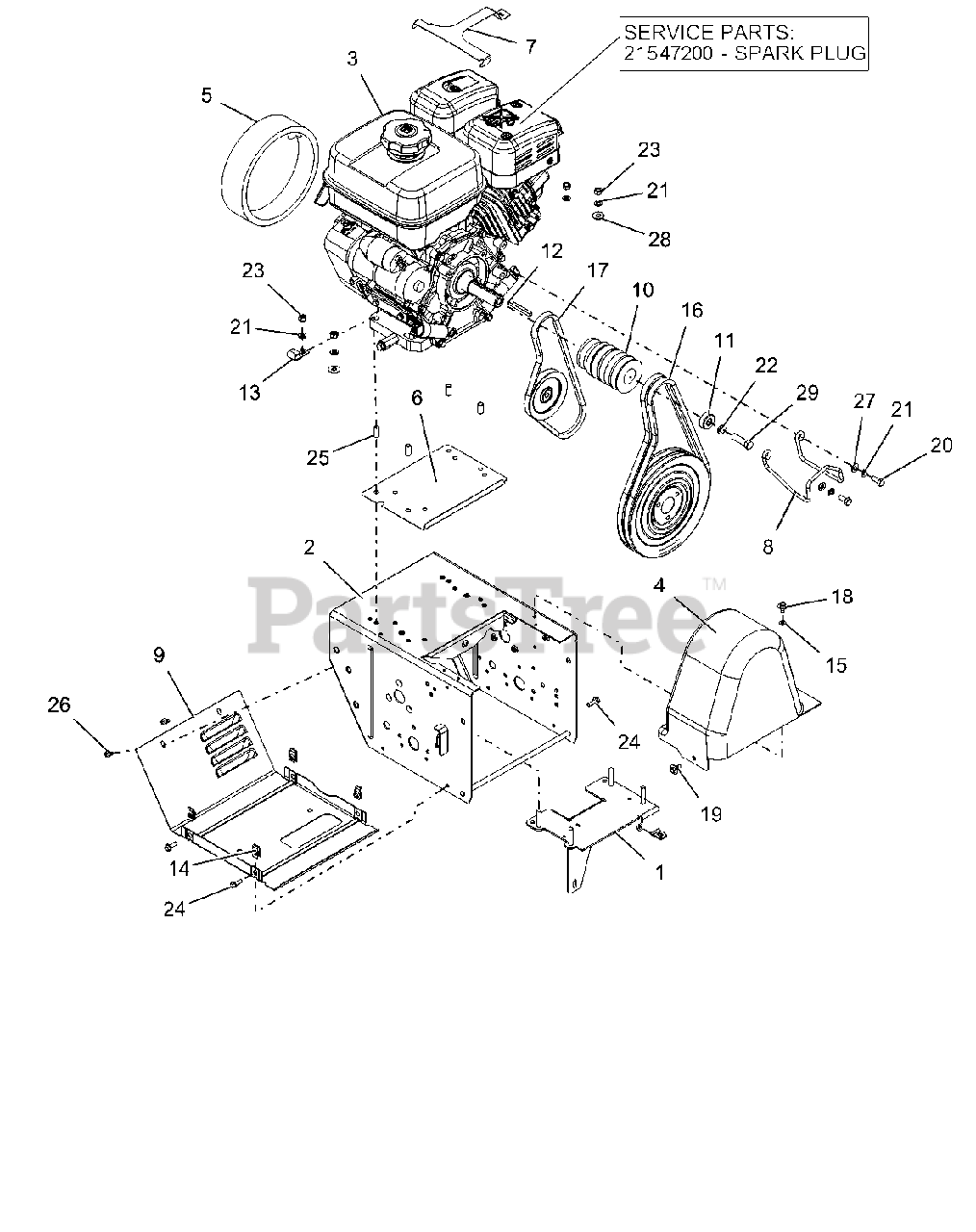

Engine And Frame Parts Diagram

  • Title

1

Ariens 04451300

BRKT, HYDRO TRANS LG

$31.99

$

Usually ships in 4-12 days

0

2

Ariens 04964159

FRAME, MAIN - PRO SNOW

$183.99

$

Usually ships in 4-12 days

0

3

Ariens 21547200

PLUG, SPARK SUBARU

Note: SERVICE PART

$3.49

$

In Stock, Qty 10

0

3

Ariens 08200546

ENGINE,SUBARU EX30 AS 12V

$

$

Not available

4

Ariens 03965700

COVER, BELT-TALL PRO

$156.99

$

Usually ships in 4-12 days

0

5

Ariens 03972500

FOAM COVER, RECOIL-SUBARU

$20.99

$

Usually ships in 4-12 days

0

6

Ariens 03980051

BAFFLE, WATER-PRO SERIES

$45.99

$

Usually ships in 4-12 days

0

7

Ariens 03981151

GUARD, SNOW-SUBARU

$62.99

$

Usually ships in 4-12 days

0

8

Ariens 04509700

FINGER, BELT
(Superseded to 05273300)

$25.99

$

In Stock, only 1 left!

0

9

Ariens 04516659

COVER, BOTTOM - VENTILATED

$43.99

$

Usually ships in 4-12 days

0

10

Ariens 04659700

SHEAVE, COMBO HYDRO BRUSH

$

$

Not available

11

Ariens 05500938

BSHG-SPACER .47X1.25X.50

$13.99

$

Usually ships in 4-12 days

0

12

Ariens 06610300

KEY .25X.25X2.25

$2.99

$

In Stock, Qty 12

0

13

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

14

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

16

Ariens 07200601

V-BELT, HA-RAW EDGE (SET)

$58.99

$

In Stock, only 2 left!

0

17

Ariens 07200631

V-BELT, 4L-WRAPPED

$28.99

$

In Stock, Qty 15

0

18

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

19

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

23

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

24

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 05500937

BSHG-SLV .325X.400X.795

$

$

Not available

26

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

30

Ariens 04332500

MUFFLER GUARD, SUB EX270JO930

Note: NOT SHOWN

$97.99

$

Usually ships in 4-12 days

0
