926518 (PB 36) - Ariens Hydro 36" Power Brush, Subaru (SN: 000101 - 000999) Brush Drive Unit Parts Diagram

Hydro 36" Power Brush, Subaru

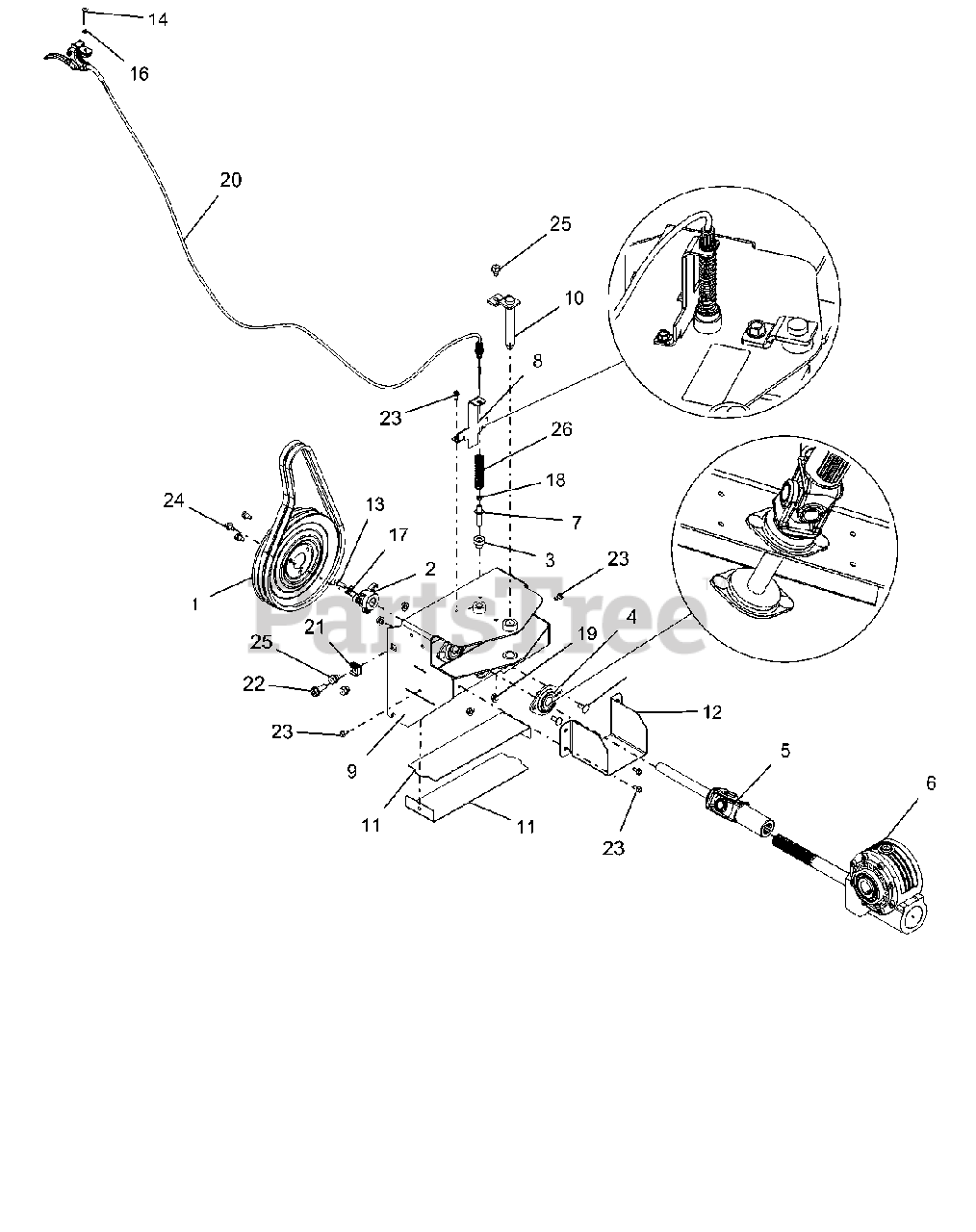

Brush Drive Unit Parts Diagram

  • Title
1

Ariens 00268700

PULLEY, SPIN FORM DUAL GROOVE
(Superseded to 00268751)

$39.99

$

In Stock, Qty 5

0

2

Ariens 00268901

PULLEY HUB, BOLT-ON D-BORE .75

$9.49

$

In Stock, only 1 left!

0

3

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$9.99

$

In Stock, only 1 left!

0

4

Ariens 03685300

BEARING, 2 BOLT FLANGE -.75 ID

$45.99

$

In Stock, only 2 left!

0

5

Ariens 04541900

DRIVELINE, SERIES 07 (U-JOINT)

$

$

Not available

6

Ariens 04542000

GEARBOX, WORM - 8.25:1

$445.99

$

Usually ships in 4-12 days

0

7

Ariens 04636300

PIN, ADJUSTABLE ANGLE BRUSH

$17.99

$

In Stock, only 2 left!

0

8

Ariens 04651851

BRKT, PIN HOLDER

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 04845051

ADAPTER, BRUSH

$138.99

$

Usually ships in 4-12 days

0

10

Ariens 04845100

WLDMT, BRUSH PIN

$43.99

$

Usually ships in 4-12 days

0

11

Ariens 04679851

GUARD, BRUSH PTO

$

$

Not available

12

Ariens 04680051

GUARD, BRUSH U-JOINT

$

$

Not available

13

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

$3.99

$

In Stock, only 4 left!

0

15

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

16

Ariens 06305200

WSHR-LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

17

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06536600

@NUT-HEX 10-24 YWZC

$0.99

$

In Stock, Qty 5

0

19

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06900523

CABLE, REMOTE BRUSH LOCK

$68.99

$

In Stock, Qty 8

0

21

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.49

$

In Stock, Qty 16

0

22

Ariens 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$2.99

$

Usually ships in 4-12 days

0

23

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 08300601

SPRING, COMPRESSION

$9.49

$

In Stock, only 2 left!

0
