926517 (PRO 32) - Ariens Hydro Professional 32" Snow Blower, Briggs & Stratton (SN: 000101 & Above) Housing - 32" Parts Diagram

Hydro Professional 32" Snow Blower, Briggs & Stratton

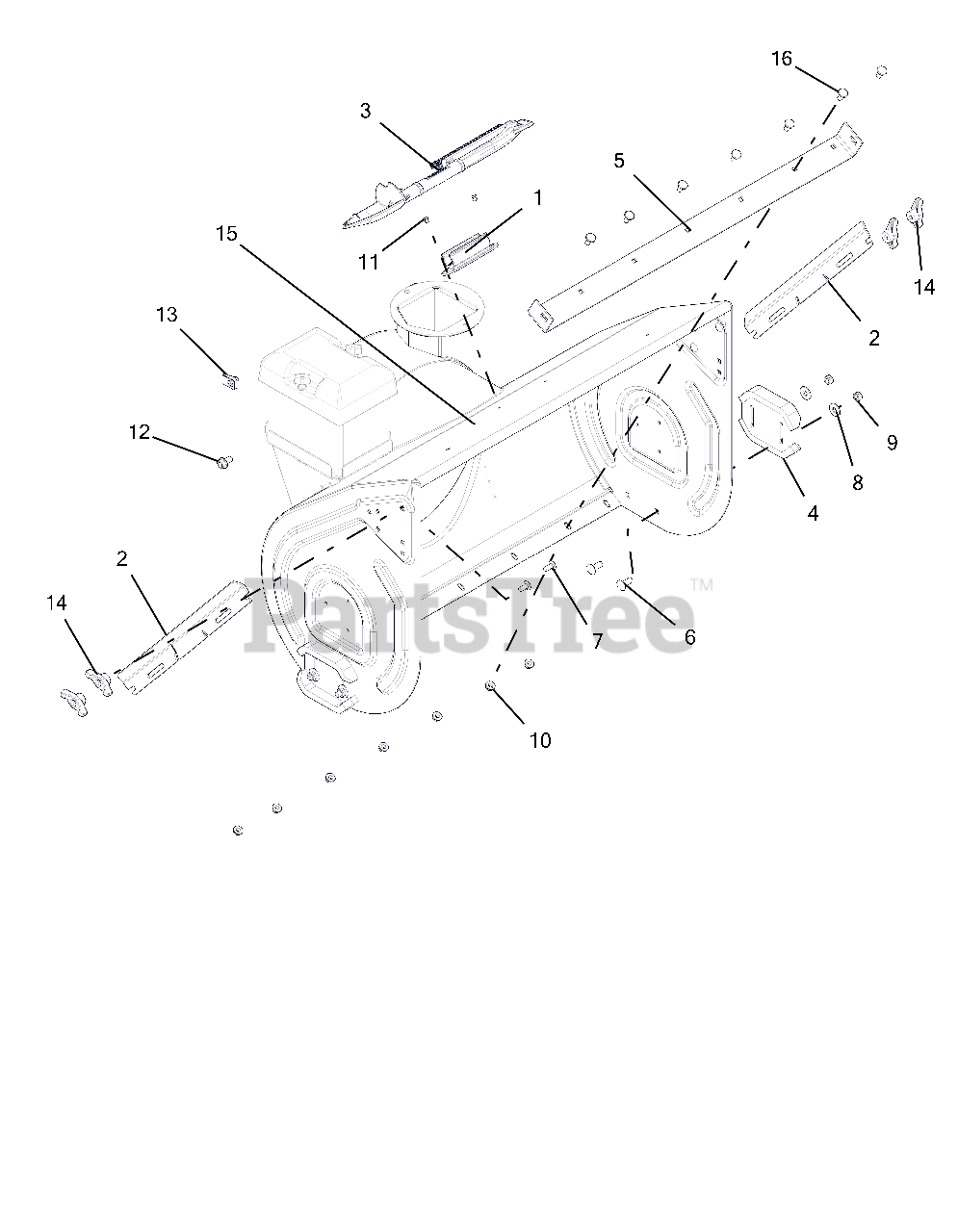

Housing - 32" Parts Diagram

  • Title

1

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

2

Ariens 00262159

CUTTER, DRIFT

$22.99

$

Usually ships in 4-12 days

0

3

Ariens 03901400

DEVICE, SNOW CLEAN OUT W/BRUSH

$34.99

$

Usually ships in 4-12 days

0

4

Ariens 04148959

RUNNER, SKID SHOE

$56.99

$

In Stock, Qty 20+

0

5

Ariens 04182000

BLADE, SCRAPER-32"
(Superseded to 04182059)

$54.99

$

In Stock, Qty 14

0

6

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

8

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0

12

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

14

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 20+

0

15

Ariens 52608100

BLOWER HOUSING W/DECAL 32" BAT

$407.99

$

Usually ships in 4-12 days

0

16

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$0.99

$

In Stock, Qty 20+

0
