926516 (PRO 32) - Ariens Professional 32" Snow Blower, Briggs & Stratton (SN: 000101 & Above) wiring diagram Parts Diagram

Professional 32" Snow Blower, Briggs & Stratton

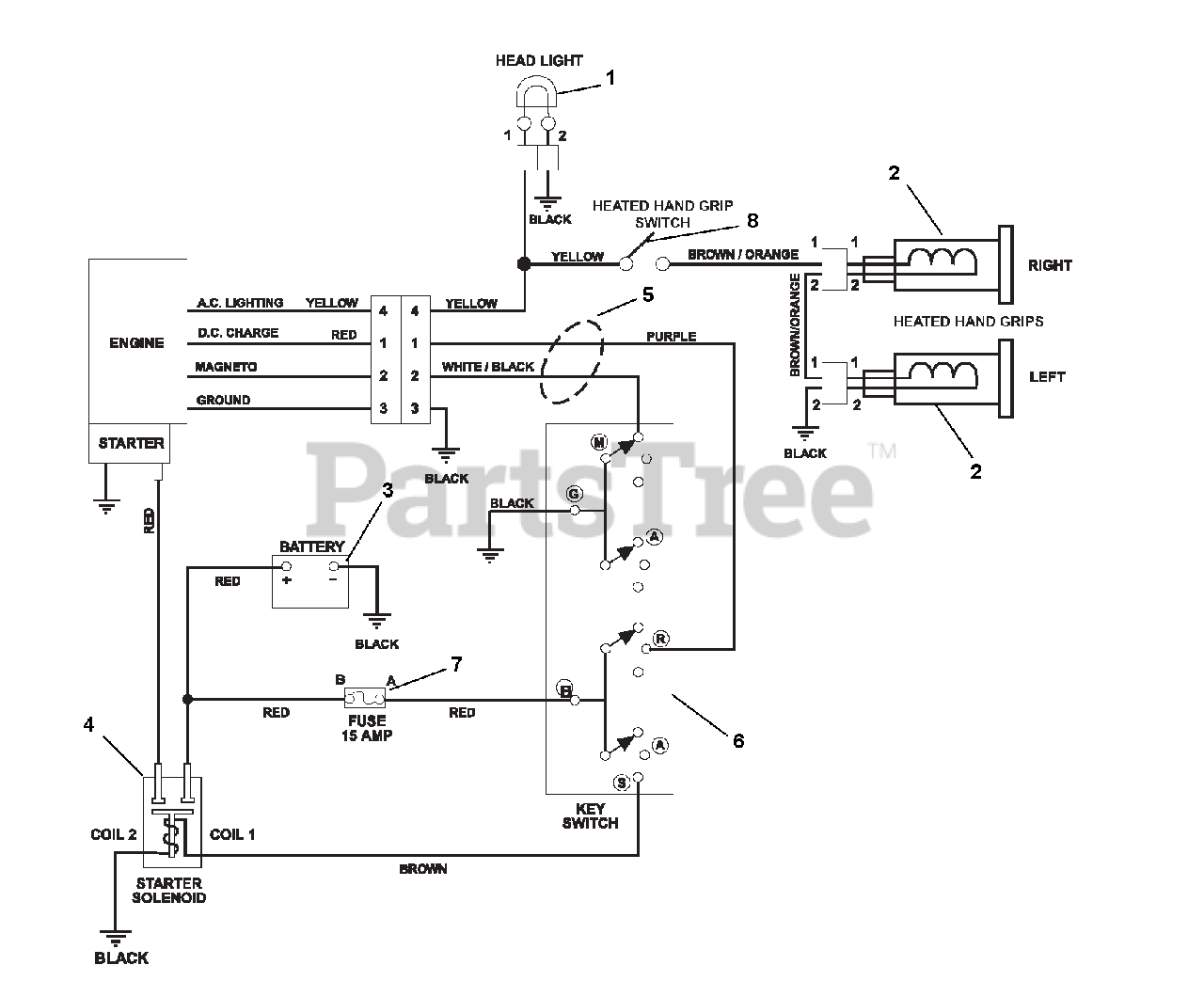

wiring diagram Parts Diagram

  • Title
1

Ariens 04307600

HEADLIGHT ASSY, HALOGEN 20W
(Superseded to 04812300)

$42.99

$

In Stock, Qty 9

0

2

Ariens 07500015

HEATED GRIP, MAGURA
(Superseded to 07500514)

Note: (Recommend Loctite E90-FL Epoxy for Installation)

$46.99

$

In Stock, only 2 left!

0

3

Battery (Recommend 240 Minimum CCA at 0° F. Size U1R or U1L)

Note: (Recommend 240 Minimum CCA at 0° F. Size U1R or U1L)

$

$

Not available

4

Ariens 03679000

SOLENOID
(Superseded to 59223400)

Note: (926513)

$60.99

$

In Stock, Qty 20+

0

5

Ariens 04329700

HARNESS, 12V

Note: (926513)

$75.99

$

Usually ships in 4-12 days

0

Ariens 04682900

HARNESS,WIRING-LT,HW 12V

Note: (926516)

$94.99

$

Usually ships in 4-12 days

0

6

Ariens 52709300

SWITCH ASSEMBLY

$56.99

$

In Stock, Qty 6

0

7

Ariens 00524700

FUSE, 15 AMP.

$

$

Not available

8

Ariens 02485700

SWITCH, ON/OFF

$15.99

$

Usually ships in 4-12 days

0
