926512 - Gravely 36" Power Brush, Subaru (SN: 000101 & Above) Reduction Drive Parts Diagram

36" Power Brush, Subaru

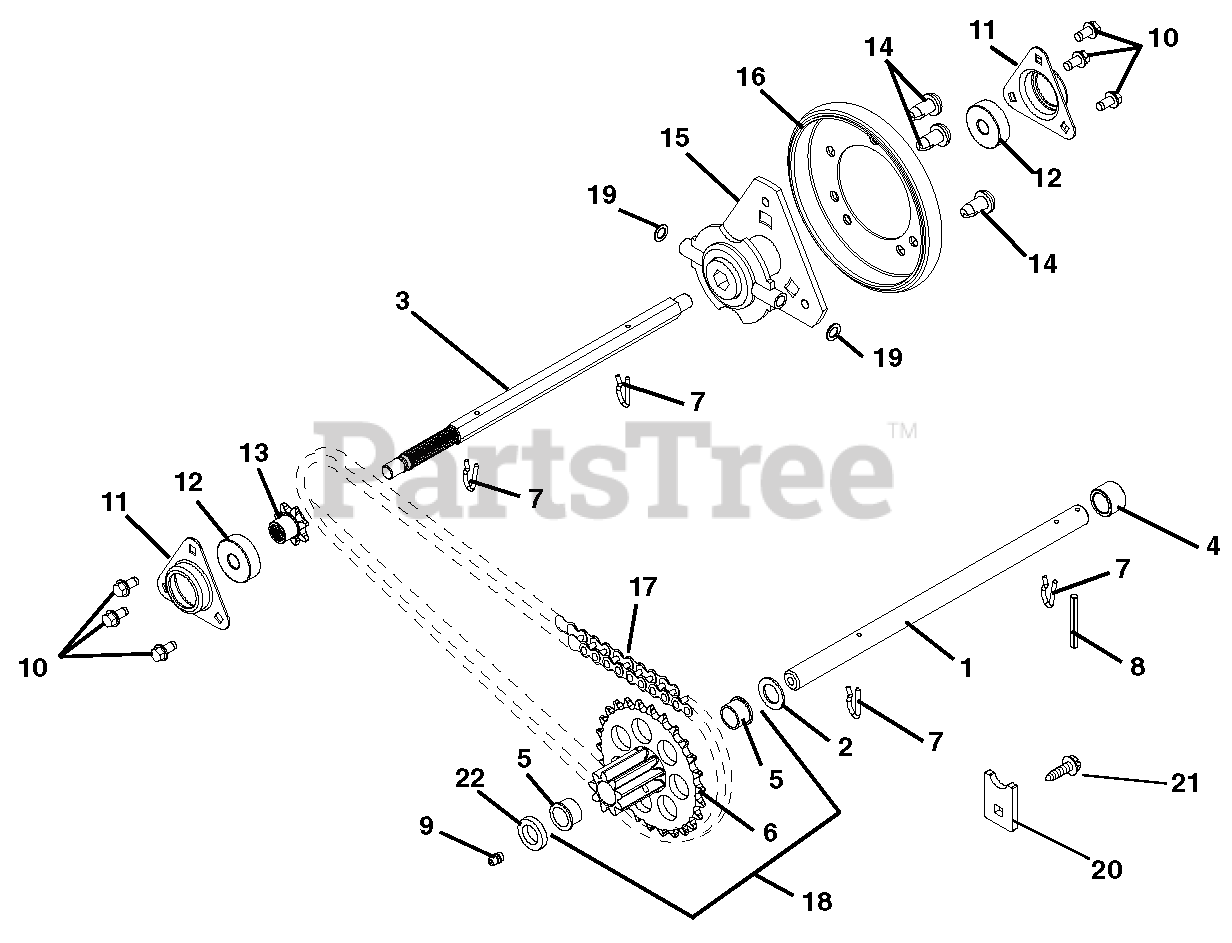

Reduction Drive Parts Diagram

  • Title
1

Gravely 00660500

Shaft, Pinion
(Superseded to 52605900)

$35.99

$

In Stock, Qty 8

0

2

Gravely 06436100

Washer, Flat Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 00372900

Shaft, Hex with Spline

$109.99

$

In Stock, only 2 left!

0

4

Gravely 05500029

Spacer .635 x .880 x .611

$2.49

$

In Stock, Qty 5

0

5

Gravely 05500111

Bushing, Flange .625 x .750 x .500 x .875

$1.49

$

In Stock, Qty 20+

0

6

Gravely 00190600

Pinion and Sprocket

$34.99

$

Usually ships in 4-12 days

0

7

Gravely 06714500

Pin, Spring Clip

$2.49

$

In Stock, Qty 20+

0

8

Gravely 05800900

Pin, Roll .125 x 1.00

$0.99

$

In Stock, Qty 20+

0

9

Gravely 07061300

Zerk, Fitting .25 x .125 Drive-In

$3.99

$

In Stock, Qty 20+

0

10

Gravely 07412000

Screw, Tapping Hex Washer Head .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00383000

Flange, Bearing

$12.99

$

In Stock, Qty 17

0

12

Gravely 05435200

Bearing, Ball .437 x 1.375 x .437

$9.49

$

In Stock, Qty 20+

0

13

Gravely 00385800

Sprocket, Pinion 7T with Spline

$9.49

$

In Stock, Qty 11

0

14

Gravely 07400009

Screw, Serrated Head Tapping .31-18 x .50
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00383100

Carrier, Drive Disk

$117.99

$

In Stock, Qty 11

0

16

Gravely 00170800

Friction, Disk
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

17

Gravely 02466200

Chain, #41, 32 Pitches

$6.99

$

In Stock, Qty 12

0

18

Gravely 52601500

Pinion and Sprocket with Bushings

$45.99

$

In Stock, Qty 14

0

19

Gravely 06439200

Washer, Flat-Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 00503559

Tab, Antirotation (serial number 000301 & up)
(Superseded to 00503500)

Note: (serial number 000301 & up)

$4.99

$

In Stock, only 2 left!

0

21

Gravely 07412000

Screw, Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 05500035

Bushing, Sleeve, .635 x .880 x .305

$3.99

$

In Stock, Qty 20+

0
