926512 - Gravely 36" Power Brush, Subaru (SN: 000101 & Above) Brush Drive Unit Parts Diagram

36" Power Brush, Subaru

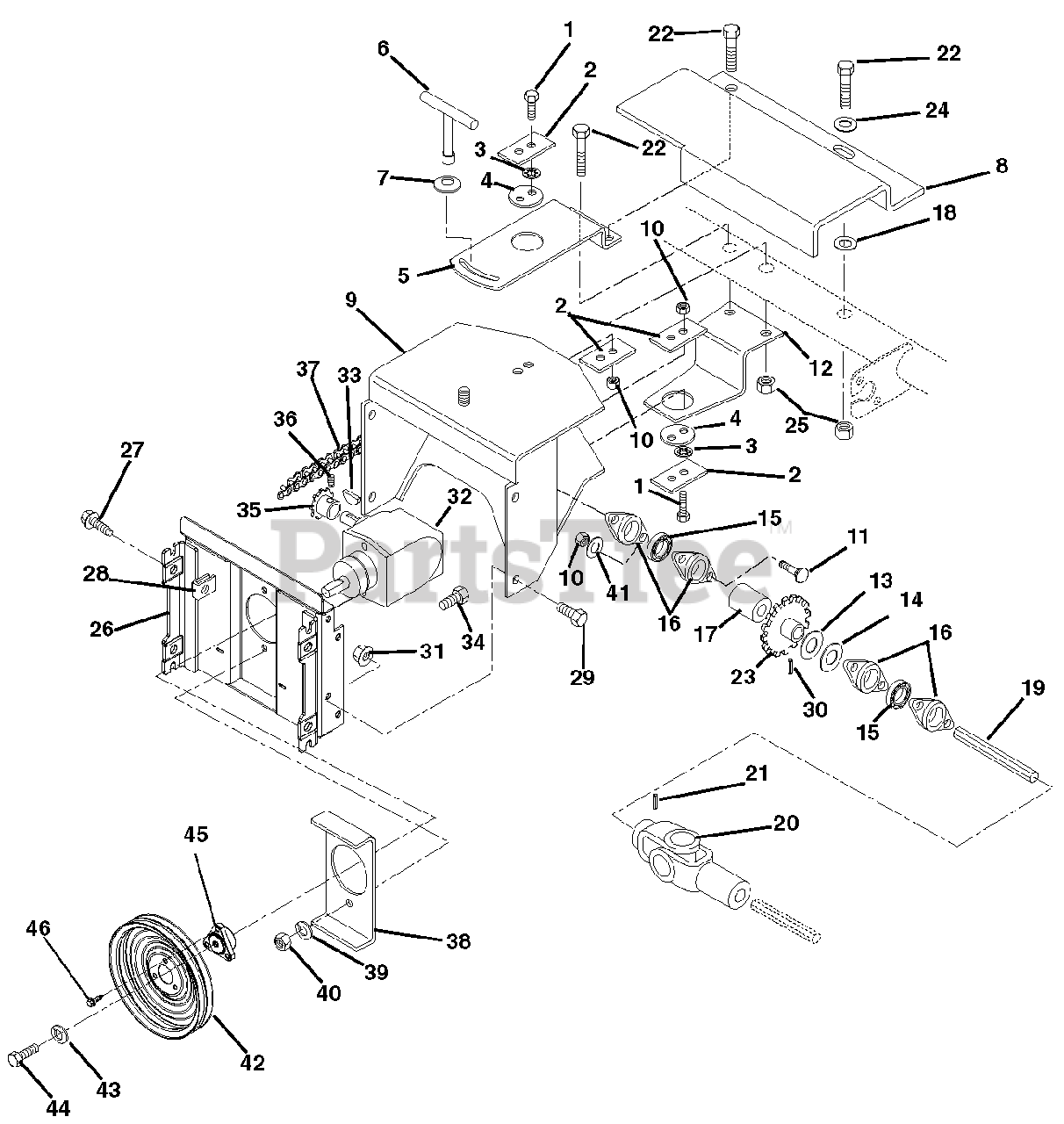

Brush Drive Unit Parts Diagram

  • Title

1

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 9

0

2

Gravely 02404800

Retainer

$17.99

$

In Stock, only 2 left!

0

3

Gravely 06307200

Washer, Locking External .326 x .599 x .031
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

4

Gravely 02404900

Pivot, Center

$20.99

$

In Stock, only 2 left!

0

5

Gravely 02471751

Plate, Top Mount

$86.99

$

Usually ships in 4-12 days

0

6

Gravely 02470900

T-Lock Handle

$59.99

$

Usually ships in 4-12 days

0

7

Gravely 06445700

Washer, Bellville .63 x 1.625 x .14

$4.99

$

In Stock, only 3 left!

0

8

Gravely 02470151

Guard, Shaft

$

$

Not available

9

Gravely 02405051

Frame, Adapter

$

$

Not available

10

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 02471851

Plate, Bottom Mount

$77.99

$

Usually ships in 4-12 days

0

13

Gravely 06400025

Washer, Flat Steel 1.031 x 1.625 x .188

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 06400026

Washer, Flat Steel 1.03 x 1.31 x .105

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 05409700

Bearing, Ball

$94.99

$

Usually ships in 4-12 days

0

16

Gravely 02429600

Flange, Bearing

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 02447600

Spacer

$24.99

$

Usually ships in 4-12 days

0

18

Gravely 06436800

Washer, Flat Steel .390 x .88 x .18

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 02429100

Shaft

$77.99

$

Usually ships in 4-12 days

0

20

Gravely 02495500

Universal Joint

$285.99

$

Usually ships in 4-12 days

0

21

Gravely 05803000

Pin, Roll .188 x 1.50

$0.99

$

In Stock, Qty 14

0

22

Gravely 05961100

Bolt, Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 01062000

Sprocket

$103.99

$

Usually ships in 4-12 days

0

24

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 00430851

Plate, Mounting Broom

$278.99

$

Usually ships in 4-12 days

0

27

Gravely 07028500

Bolt, Hex Flanged Whizloc Head .38-16 x .75
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07053300

Nut, Retainer .38-16

$3.99

$

In Stock, only 4 left!

0

29

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 17

0

30

Gravely 05805600

Pin, Roll .188 x 1.75

$1.99

$

Usually ships in 4-12 days

0

31

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 02499300

Gear Box Assembly

$408.99

$

Usually ships in 4-12 days

0

33

Gravely 06600300

Key, Woodruff .188 x .75 x .313 SAE 9

$1.49

$

In Stock, Qty 11

0

34

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 02429800

Sprocket

$

$

Not available

36

Gravely 06001100

Screw, Set .25-20 x .38 Socket Head Cup Point

$2.49

$

In Stock, only 2 left!

0

37

Gravely 02477700

Chain

$14.99

$

In Stock, Qty 6

0

38

Gravely 02429551

Plate, Stiffener

$

$

Not available

39

Gravely 06308800

Washer, Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 00268751

Pulley, Spin Form Dual Groove

$39.99

$

In Stock, Qty 5

0

43

Gravely 06307400

Washer, Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 18

0

44

Gravely 05947300

Bolt, Hex .312-24 x .75 Grade 5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 00268703

Pulley Hub, D-Bore .87 Pro

$9.49

$

In Stock, Qty 5

0

46

Gravely 07411500

Screw, Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0
