926503 - Gravely 36" Power Brush, Tecumseh (SN: 001001 & Above) Wheels And Axles Parts Diagram

36" Power Brush, Tecumseh

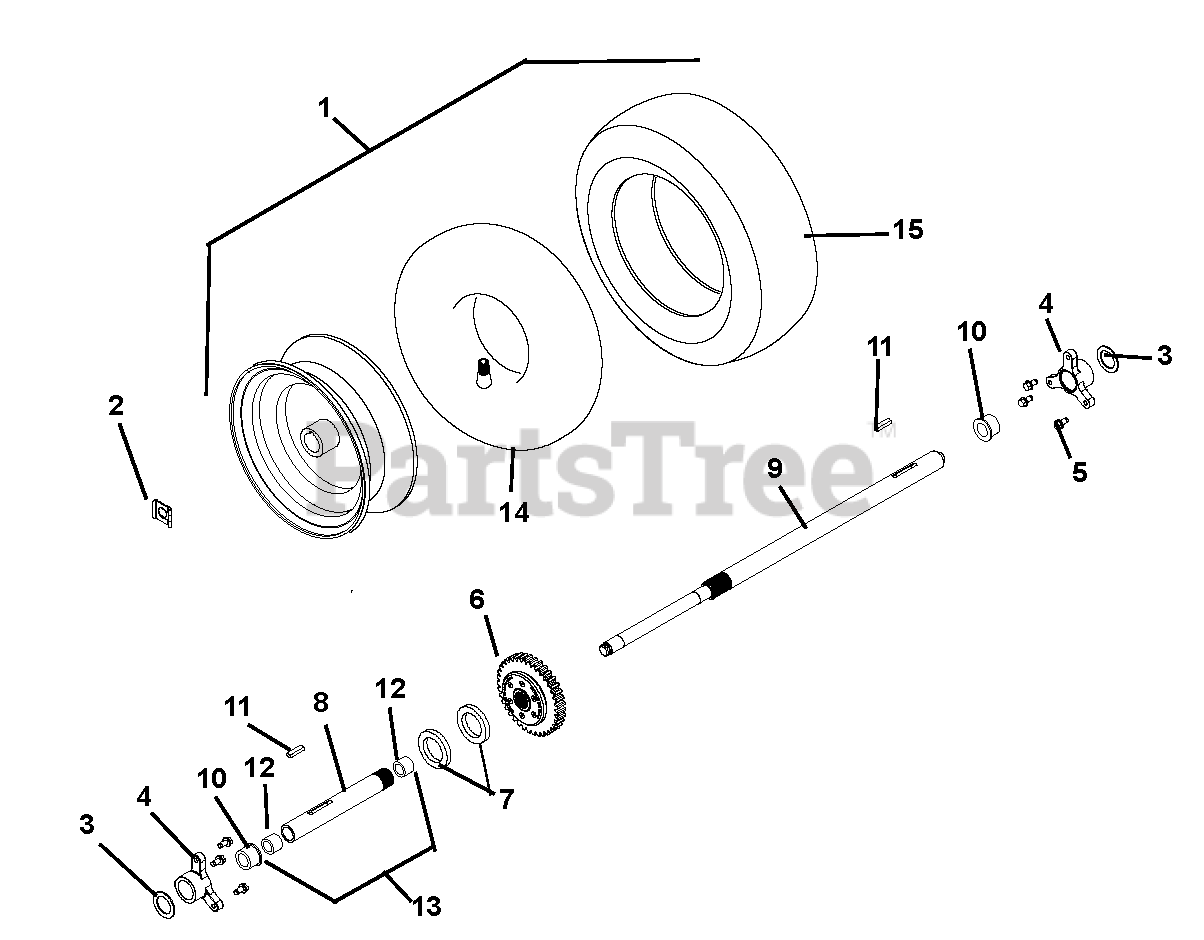

Wheels And Axles Parts Diagram

  • Title

1

Gravely 07100231

Tire/Wheel Assembly RH 16 x 6.50 - 8 Differential (Includes 14-15)
(Superseded to 07101139)

Note: (Includes 14-15)

$148.99

$

Usually ships in 4-12 days

0

Gravely 07100232

Tire/Wheel Assembly LH 16 x 6.50 - 8 Differential (Includes 14-15)
(Superseded to 07101140)

Note: (Includes 14-15)

$148.99

$

In Stock, only 2 left!

0

2

Gravely 05700001

Clip, Snap

$2.49

$

In Stock, Qty 20+

0

3

Gravely 06436300

Washer, Flat Steel 1.010 x 1.505 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00275100

Bushing, Rake Shaft 1"

$11.99

$

In Stock, Qty 20+

0

5

Gravely 07412000

Screw, Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00866000

Differential, Hilliard
(Superseded to 05013000)

$193.99

$

In Stock, only 3 left!

0

7

Gravely 06443000

Washer, Flat Steel 1.062 x 2.00 x .134
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

8

Gravely 00660800

Axle, Differential-Short
(Superseded to 52604100)

$53.99

$

In Stock, Qty 12

0

9

Gravely 00660900

Axle, Differential-Long

$96.99

$

In Stock, only 4 left!

0

10

Gravely 05500030

Bushing, Flange Split Nyliner 1.0" HP

$6.99

$

In Stock, Qty 20+

0

11

Gravely 06600002

Key .25 x .188 x 1.00

$2.49

$

In Stock, Qty 20+

0

12

Gravely 05500023

Bushing, Sleeve

$3.99

$

In Stock, Qty 20+

0

13

Gravely 52604100

Axle, Differential with Bushings (Includes 8 and 12)

Note: (Includes 8 and 12)

$53.99

$

In Stock, Qty 12

0

14

Gravely 07108700

Tube 16 x 6.50- 8

$34.99

$

Usually ships in 4-12 days

0

15

Gravely 07100728

Tire, X-TRAC 16 x 6.5-8

$79.99

$

Usually ships in 4-12 days

0
