926503 - Gravely 36" Power Brush, Tecumseh (SN: 001001 & Above) Brush Head Parts Diagram

36" Power Brush, Tecumseh

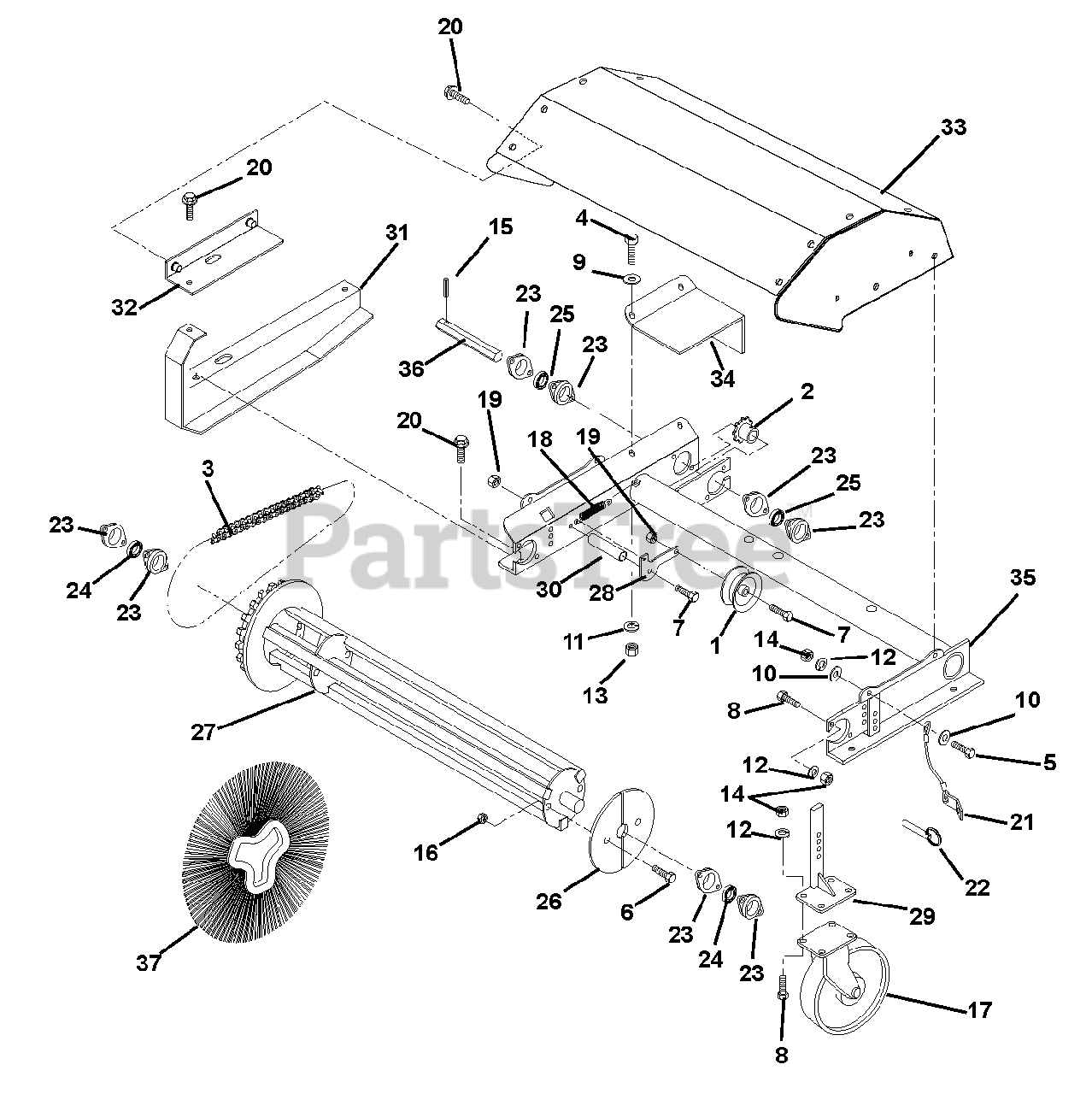

Brush Head Parts Diagram

  • Title

1

Gravely 01061300

Chain Tightener

$

$

Not available

2

Gravely 01060900

Sprocket

$113.99

$

Usually ships in 4-12 days

0

3

Gravely 02468300

Chain, Assembly #40 x 106

$95.99

$

Usually ships in 4-12 days

0

4

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05963700

Bolt, Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

8

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06437300

Washer, Flat Steel .28 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06435800

Washer, Flat Steel .31 x .73 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06308400

Washer, Lock .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06308600

Washer, Lock .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

14

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

15

Gravely 02468400

Pin, Spring Lok .19 x 1.25

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 02468500

Nut, Lok Stamped .31-18

$

$

Not available

17

Gravely 07109400

Wheel, 5 inch Diameter

$79.99

$

In Stock, Qty 9

0

18

Gravely 02468600

Spring, Tension

$

$

Not available

19

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 02468700

Screw, Gear 10.9 M6 x 1-20

$

$

Not available

21

Gravely 02468800

Lanyard Cable

$

$

Not available

22

Gravely 00547800

Pin, Hitch

$10.99

$

Usually ships in 4-12 days

0

23

Gravely 02411300

Flange, Spherical

$7.99

$

Usually ships in 4-12 days

0

24

Gravely 05423400

Bearing, Spherical

$

$

Not available

25

Gravely 05409700

Bearing, Ball

$94.99

$

Usually ships in 4-12 days

0

26

Gravely 01062900

Retainer Plate

$74.99

$

Usually ships in 4-12 days

0

27

Gravely 02469000

Weldment, Core

$

$

Not available

28

Gravely 02469100

Arm, Idler

$

$

Not available

29

Gravely 02469200

Weldment, Caster Leg

$193.99

$

In Stock, only 1 left!

0

30

Gravely 02469300

Bushing

$

$

Not available

31

Gravely 02469400

Shield, Chain

$

$

Not available

32

Gravely 02469500

Shield Chain Top

$

$

Not available

33

Gravely 02469600

Weldment, Faceted Hood

$

$

Not available

34

Gravely 02469700

Shield, Input

$

$

Not available

35

Gravely 02469800

Weldment, Broom Frame

$

$

Not available

36

Gravely 02490600

Shaft, Hex 20.1" with Hole

$

$

Not available

37

Gravely 02470000

Set, 24 Section

$586.99

$

Usually ships in 4-12 days

0
