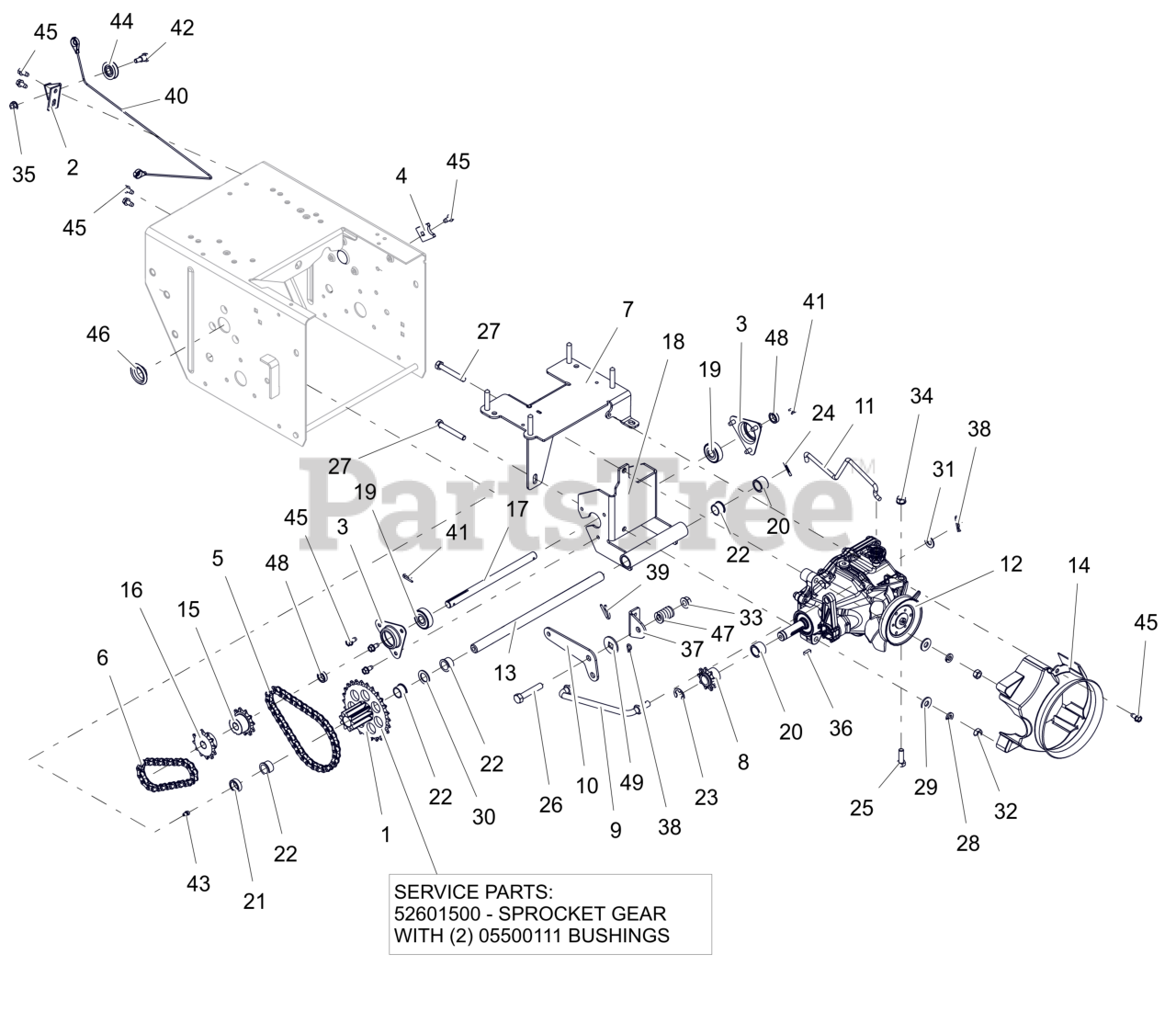

926345 (PRO 28) - Ariens Hydro Pro 28" Track Snow Blower, Ariens AX 420cc EFI (SN: 000101 & Above) Hydrostatic Drive Parts Diagram

Hydro Pro 28" Track Snow Blower, Ariens AX 420cc EFI

Hydrostatic Drive Parts Diagram

  • Title

1

Ariens 00190600

PINION & SPROCKET

$34.99

$

Usually ships in 4-12 days

0

1

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

Note: Component Service Assemby

$45.99

$

In Stock, Qty 10

0

2

Ariens 00373000

BRKT, CABLE PULLEY

$4.99

$

Usually ships in 4-12 days

0

3

Ariens 00383000

FLANGE, BEARING

$12.99

$

In Stock, Qty 11

0

4

Ariens 00503500

TAB, ANTI ROTATION

$4.99

$

In Stock, only 2 left!

0

5

Ariens 02477700

ROLLER CHAIN #41 - 34 PITCHES

$14.99

$

In Stock, Qty 5

0

6

Ariens 03232800

CHAIN-ROLLER #41X26 PITCHES

$14.99

$

Usually ships in 4-12 days

0

7

Ariens 04371200

BRACKET, HYDROSTATIC TRANS XLG

$61.99

$

Usually ships in 4-12 days

0

8

Ariens 04375800

SPROCKET, PINION 9T W/KEY
(Superseded to 09478200)

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 04376500

ROD, HYDRO TRANS SHIFT

$9.49

$

Usually ships in 4-12 days

0

10

Ariens 04376651

PIVOT, HYDRO TRANS SHIFT

$7.99

$

Usually ships in 4-12 days

0

11

Ariens 09165100

ROD, HYDRO BYPASS

$17.99

$

Usually ships in 4-12 days

0

12

Ariens 04438900

TRANSMISSION, HYDROSTATIC

$814.99

$

Usually ships in 4-12 days

0

13

Ariens 04511800

SHAFT, PINION - HARDENED

$42.99

$

Usually ships in 4-12 days

0

14

Ariens 04513900

SHROUD, HYDROGEAR RT-310

$21.99

$

Usually ships in 4-12 days

0

15

Ariens 05102300

SPROCKET, 11 TOOTH

$35.99

$

Usually ships in 4-12 days

0

16

Ariens 05102700

SPROCKET, 12 TOOTH

$35.99

$

Usually ships in 4-12 days

0

17

Ariens 05153200

SHAFT, REDUCTION HEAT TREATED

$25.99

$

Usually ships in 4-12 days

0

18

Ariens 05153600

SUPPORT, REDUCTION-BWT

$64.99

$

Usually ships in 4-12 days

0

19

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 12

0

20

Ariens 05500029

SPACER, .635X.880X.611

$2.49

$

In Stock, only 4 left!

0

21

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, Qty 12

0

22

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$2.49

$

In Stock, Qty 20+

0

23

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 20+

0

24

Ariens 05800205

@PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

Usually ships in 4-12 days

0

25

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 6

0

27

Ariens 05901806

BLT, HEX .31-18X2.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 15

0

29

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06401117

WSHR, FLT .630X1.005X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06500938

NUT, HEX .312-18 ZCC

$0.99

$

In Stock, Qty 10

0

33

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06606000

KEY-SQ .187 X .50 X .187

$10.99

$

In Stock, only 1 left!

0

37

Ariens 04376751

BRACKET, HYDRO SHIFT PIVOT

$6.99

$

Usually ships in 4-12 days

0

38

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

40

Ariens 06900527

CABLE, TRACTION, HYDRO PRO

$20.99

$

In Stock, only 1 left!

0

41

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

42

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, Qty 5

0

43

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 14

0

44

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

45

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

46

Ariens 07500231

PLUG, HOLE - 1.125"

$2.49

$

Usually ships in 4-12 days

0

47

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 14

0

48

Ariens 05501326

SPCR, SLV

$9.99

$

Usually ships in 4-12 days

0

49

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0
