926344 (PRO 28) - Ariens Professional 28" Snow Blower, Ariens AX 420cc engine (SN: 000101 & Above) Dash Parts Diagram

Professional 28" Snow Blower, Ariens AX 420cc engine

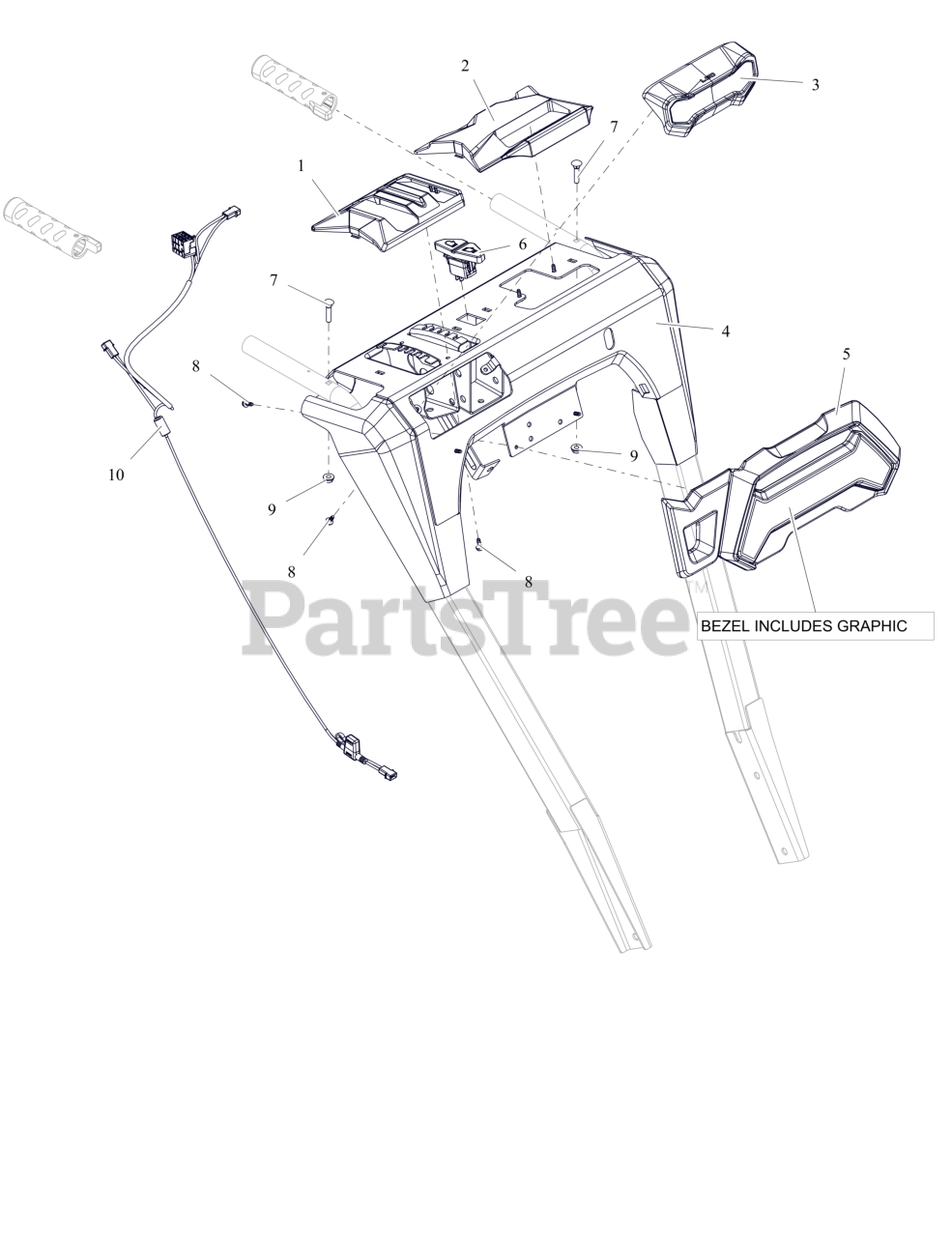

Dash Parts Diagram

  • Title
1

Ariens 09383100

BEZEL, SHIFT - FRICTION

$

$

Not available

2

Ariens 52112500

BEZEL, OPERATOR CHUTE DECAL

$

$

Not available

3

Ariens 09382600

HEADLIGHT ASM- LED

$64.99

$

Usually ships in 4-12 days

0

4

Ariens 52616800

PANEL, DASH-FRICTION QT W/DECAL

$271.99

$

Usually ships in 4-12 days

0

5

Ariens 09467800

BEZEL- LARGE - PROFESSIONAL

$28.99

$

In Stock, only 1 left!

0

6

Ariens 09395000

SWITCH- ROCKER SPST-ON/OFF

$19.99

$

In Stock, Qty 5

0

7

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 06100239

SCR, PLASTIC #10X.50

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

10

Ariens 09391300

HARNESS- WIRE - LT HG

Note: Note: No fuse in harness

$

$

Not available
