926334 (ST 32 DLE) - Ariens Hydro Pro 32" Snow Blower, Briggs & Stratton (SN: 000101 - 004999) Dash Parts Diagram

Hydro Pro 32" Snow Blower, Briggs & Stratton

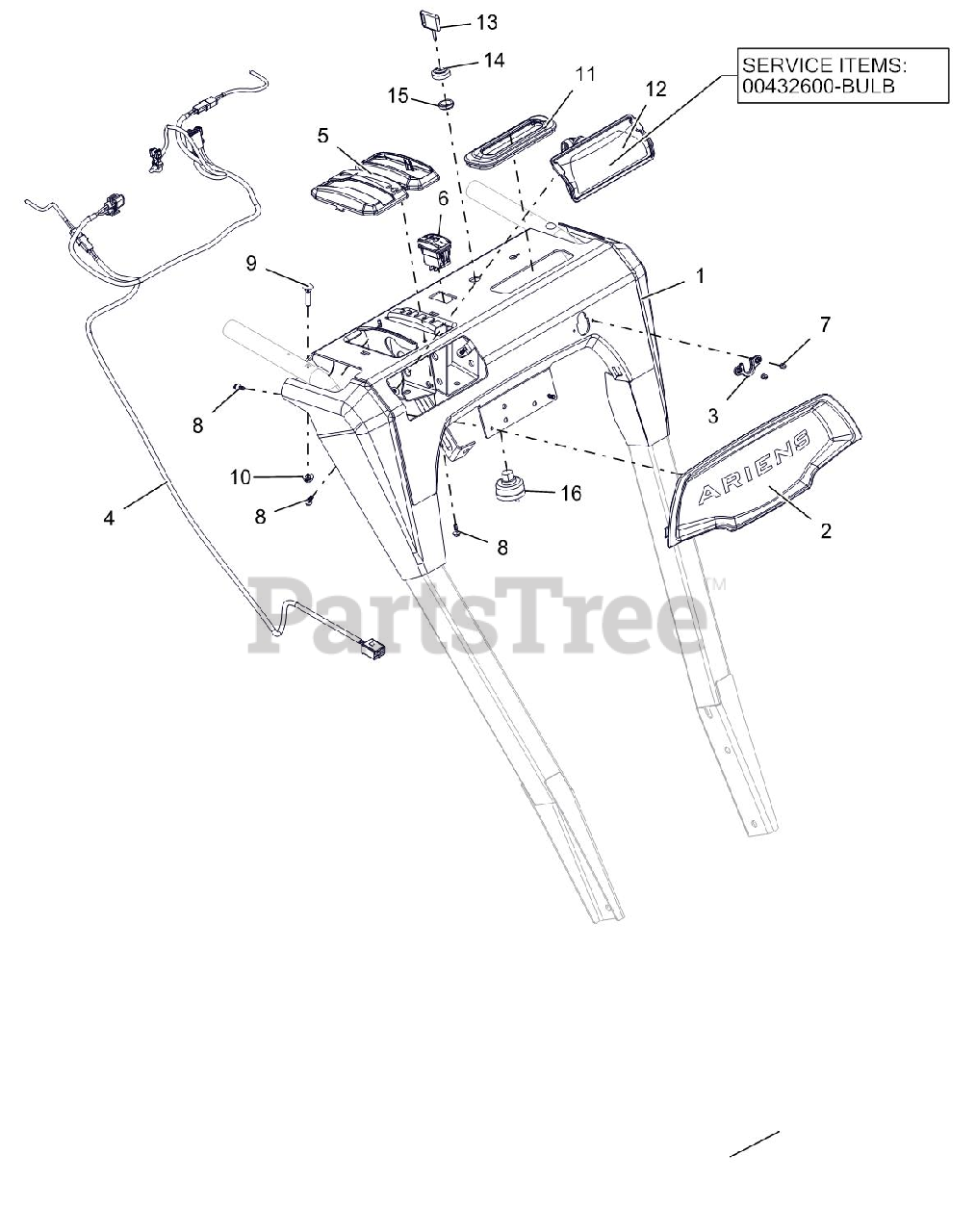

Dash Parts Diagram

  • Title

1

Ariens 52615900

PANEL, DASH-HYDRO 12V W/DECAL

$

$

Not available

2

Ariens 04982200

BEZEL, DASH - ARIENS LG DASH

$27.99

$

Usually ships in 4-12 days

0

3

Ariens 04762800

GROMMET, CABLE, QUICK TURN 2

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 04974000

HARNESS,ELEC - HANDLEBAR 12V

$34.99

$

Usually ships in 4-12 days

0

5

Ariens 04824500

BEZEL, SHIFT - HYDRO SNOW

$15.99

$

Usually ships in 4-12 days

0

6

Ariens 04836700

SWITCH,ROCKER SPST-ON/OFF
(Superseded to 09395000)

$19.99

$

In Stock, only 4 left!

0

7

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$1.49

$

Usually ships in 4-12 days

0

8

Ariens 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 4 left!

0

10

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 04757600

GROMMET, BOOT, QUICK TURN

$11.99

$

Usually ships in 4-12 days

0

12

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

Note: SERVICE PART

$14.99

$

In Stock, only 1 left!

0

12

Ariens 04812300

HEADLIGHT ASY, HALO 20W 2SHOT

$42.99

$

In Stock, Qty 6

0

13

Ariens 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

14

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 9

0

15

Ariens 06517300

NUT-PANEL .625-32 GRECO

$7.99

$

Usually ships in 4-12 days

0

16

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, only 3 left!

0
